PNS720GKC523A4 - Exmark 52" Pioneer S-Series Zero-Turn Mower, Kohler ZT720 (SN: 315000000 - 315999999) (2015) Electrical Assembly Parts Diagram

52" Pioneer S-Series Zero-Turn Mower, Kohler ZT720

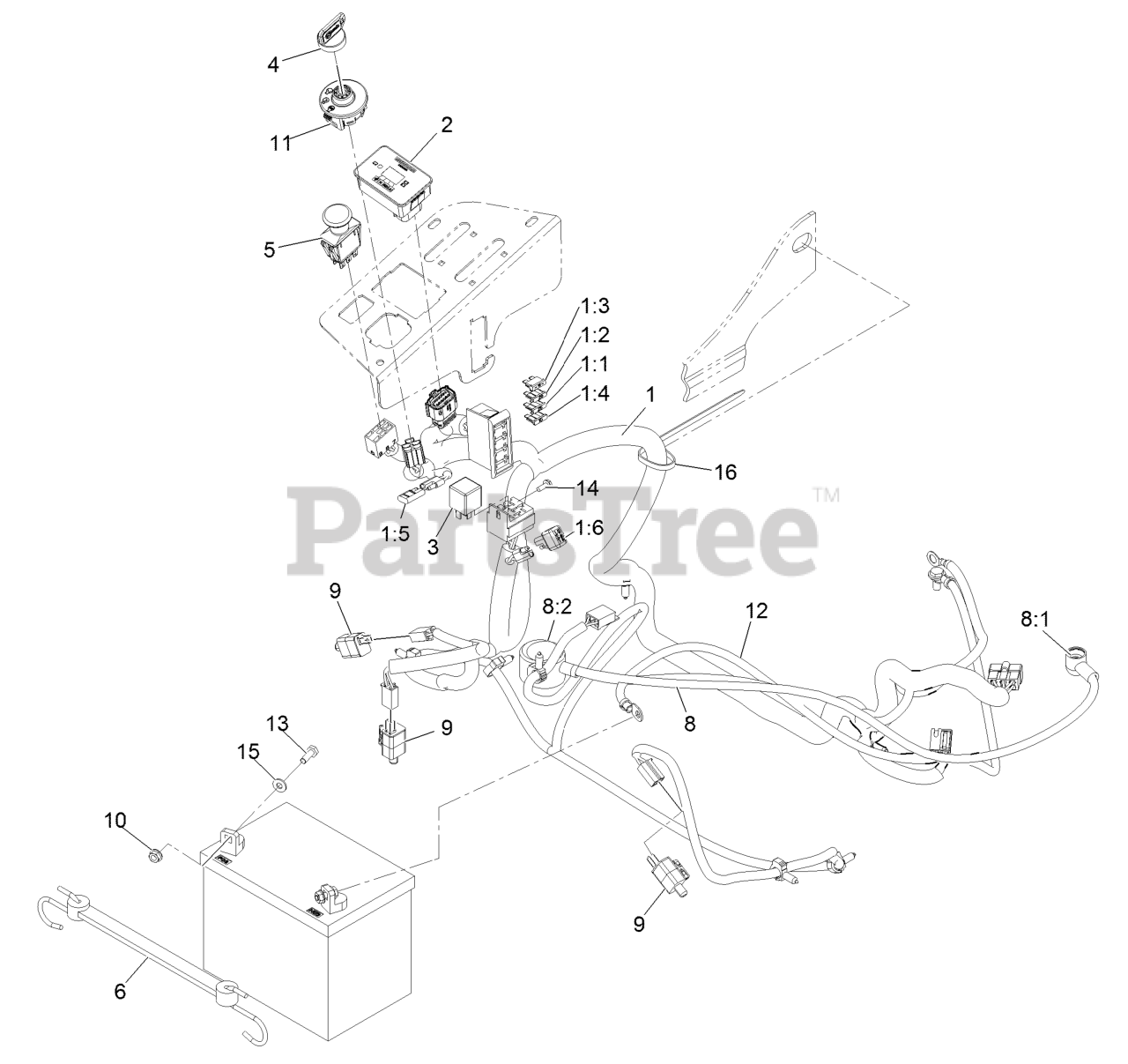

Electrical Assembly Parts Diagram

  • Title

1

Exmark 116-4861

HARNESS, WIRE

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$386.99

$

Usually ships in 3-6 days

0

1:1

Exmark 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 14

0

1:2

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.99

$

In Stock, only 3 left!

0

1:3

Exmark 109355

FUSE-BLADE, 15 AMP

$3.99

$

In Stock, Qty 10

0

1:4

Exmark 218-578

FUSE-BLADE, 10 AMP

$3.49

$

In Stock, Qty 6

0

1:5

Exmark 116-0053

CAP-PLUG

$42.99

$

Usually ships in 3-6 days

0

1:6

Exmark 103-3895

DIODE

$68.99

$

In Stock, only 3 left!

0

2

Exmark 116-5609

MODULE ASM

$164.99

$

In Stock, only 2 left!

0

3

Exmark 1-643275

RELAY

$25.99

$

In Stock, Qty 20+

0

4

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

4

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

5

Exmark 103-5221

SWITCH-PTO

$61.99

$

In Stock, Qty 20+

0

6

Exmark 104-2466

HOLDDOWN-BATTERY

$25.99

$

In Stock, Qty 5

0

8

Exmark 109-7630

POSITIVE BATTERY CABLE AS

$45.99

$

In Stock, only 2 left!

0

8:1

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 2 left!

0

8:2

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 1 left!

0

9

Exmark 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

10

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

11

Exmark 117-2221

137-4100
(Superseded to 137-4100)

$29.99

$

In Stock, Qty 20+

0

12

Exmark 117-7240

CABLE-BATTERY, NEGATIVE

$25.99

$

Usually ships in 3-6 days

0

13

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Exmark 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

15

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0
