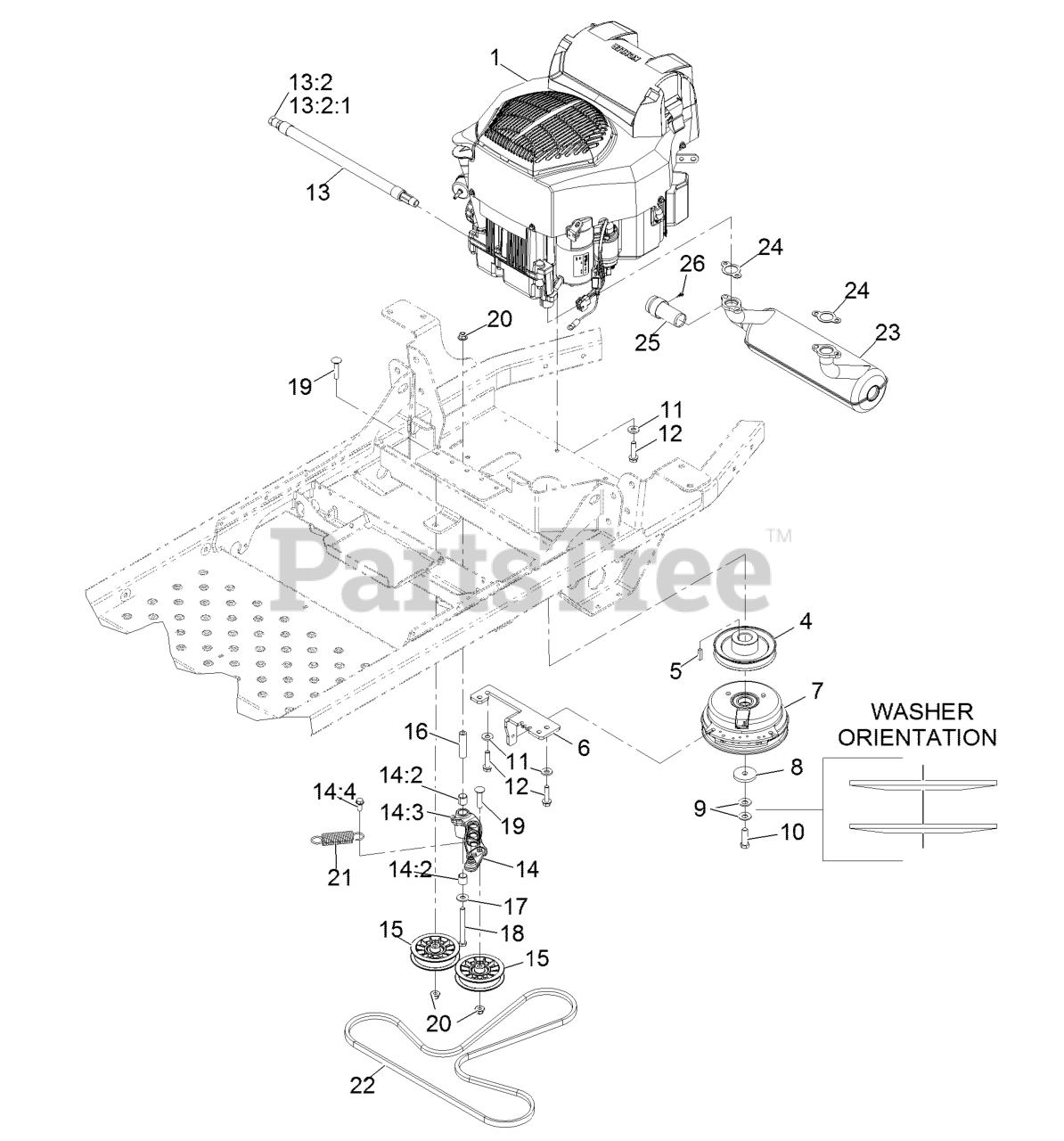

PNS710KC443 - Exmark 44" Pioneer S-Series Zero-Turn Mower, Kohler ZT710 (SN: 314000000 - 314999999) (2014) Engine Assembly Parts Diagram

44" Pioneer S-Series Zero-Turn Mower, Kohler ZT710

Engine Assembly Parts Diagram

  • Title

1

Engine - Kohler Zt710

Note: Not serviced separately, Obtain parts from www.kohlerplus.com

$

$

Not available

4

Exmark 116-1946

SHEAVE-PUMP, DRIVE

$76.99

$

In Stock, only 1 left!

0

5

Exmark 1-807259

KEY

$2.99

$

In Stock, only 1 left!

0

6

Exmark 116-4773-03

ANCHOR-CLUTCH

$26.99

$

Usually ships in 3-6 days

0

7

Exmark 116-1947

CLUTCH

$509.99

$

Usually ships in 3-6 days

0

8

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 9

0

9

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

10

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 7

0

11

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

12

Exmark 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

13

Exmark 116-5316

OIL DRAIN HOSE ASM

$53.99

$

In Stock, Qty 14

0

13:2

Exmark 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

13:2:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

14

Exmark 126-0973

IDLER ARM ASM

$84.99

$

In Stock, only 1 left!

0

14:2

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

14:3

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

14:4

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

15

Exmark 116-2456

PULLEY-FLAT IDLER

$25.99

$

In Stock, Qty 13

0

16

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

17

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

18

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

19

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

20

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

22

Exmark 115-9613

V-BELT
(Superseded to 115-9613-SL)

$53.99

$

Usually ships in 3-6 days

0

23

Exmark 126-1477

MUFFLER, KOHLER

Note: Includes spark arrestor and mounting screw.

$225.99

$

In Stock, only 3 left!

0

24

Exmark 110-6697

GASKET-EXHAUST

$

$

Not available

25

Exmark 126-0268

ARRESTOR-SPARK

$69.99

$

Usually ships in 3-6 days

0

26

Exmark 126-0275

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0
