PNS710GKC483A4 - Exmark 48" Pioneer S-Series Zero-Turn Mower, Kohler ZT710 (SN: 315000000 - 315999999) (2015) Main Frame Assembly Parts Diagram

48" Pioneer S-Series Zero-Turn Mower, Kohler ZT710

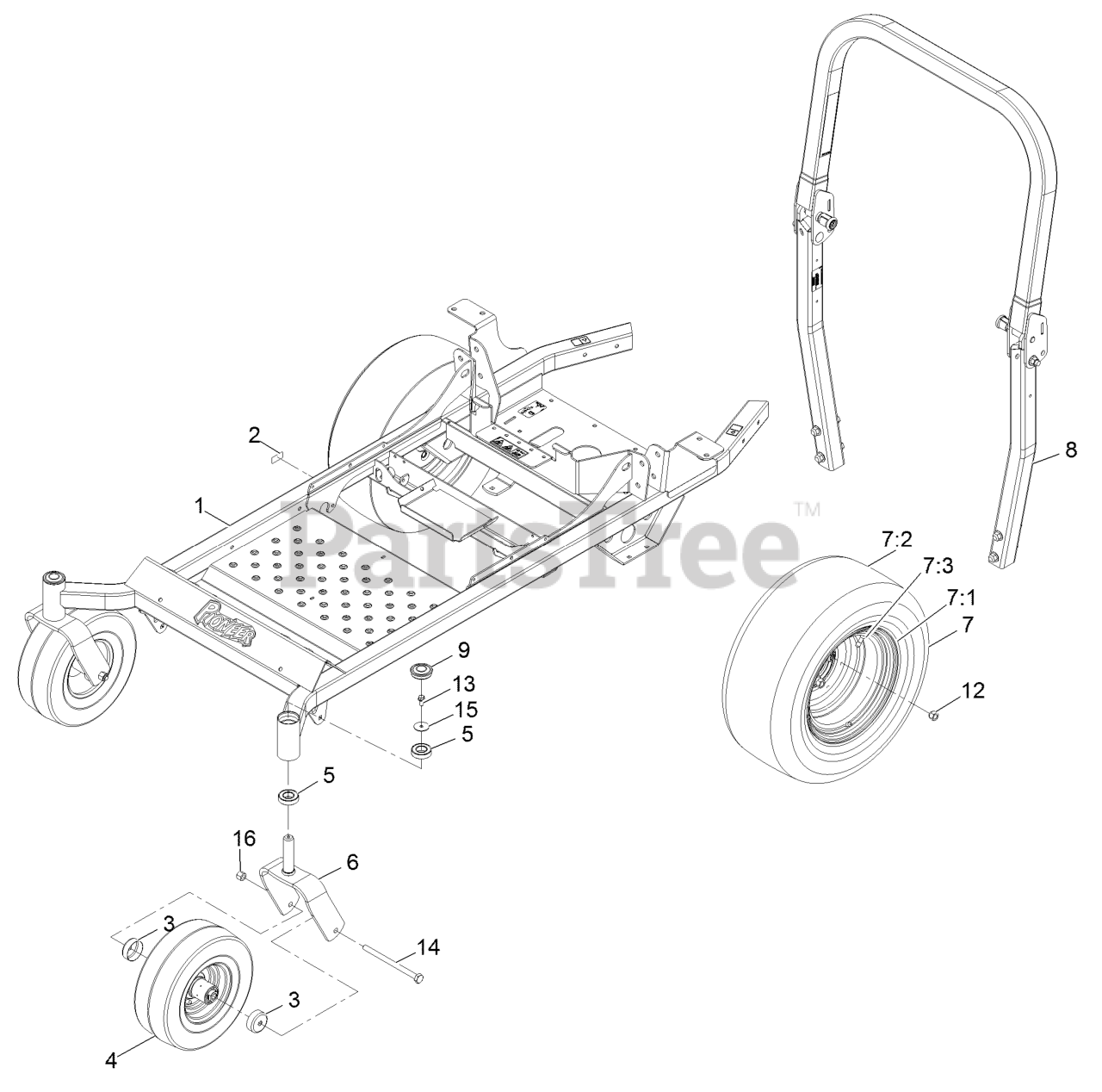

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-6831

FRAME ASM-48-52

$

$

Not available

2

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

0

3

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

4

Exmark 103-5189

ASM, WHEEL AND TIRE W/ AX

$249.99

$

In Stock, only 1 left!

0

5

Exmark 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

6

Exmark 116-0611-01

WLD,CASTER FORK

$127.99

$

Usually ships in 3-6 days

0

7

Exmark 116-6318

WHEEL AND TIRE ASM

$420.99

$

Usually ships in 3-6 days

0

7:1

Exmark 116-6320

WHEEL-12X7, 8 SPOKE 4 ON

$185.99

$

Usually ships in 3-6 days

0

7:2

Exmark 120-3271

TIRE
(Superseded to 142-4282)

$198.99

$

Usually ships in 3-6 days

0

7:3

Exmark 232-27

Stem-Valve

$

$

Not available

8

Exmark 116-3498

ASM-ROPS PIONEER

$446.99

$

Usually ships in 3-6 days

0

9

Exmark 116-4348

CAP-GREASE

$5.49

$

In Stock, Qty 15

0

12

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 3 left!

0

13

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, only 3 left!

0

14

Exmark 325-36

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Exmark 3256-68

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

16

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0
