PNS710GKC48300 - Exmark 48" Pioneer S-Series Zero-Turn Mower, Kohler ZT710 (SN: 316000000 - 399999999) (2016) RH Transaxle Assembly No. 116-3174 Parts Diagram

48" Pioneer S-Series Zero-Turn Mower, Kohler ZT710

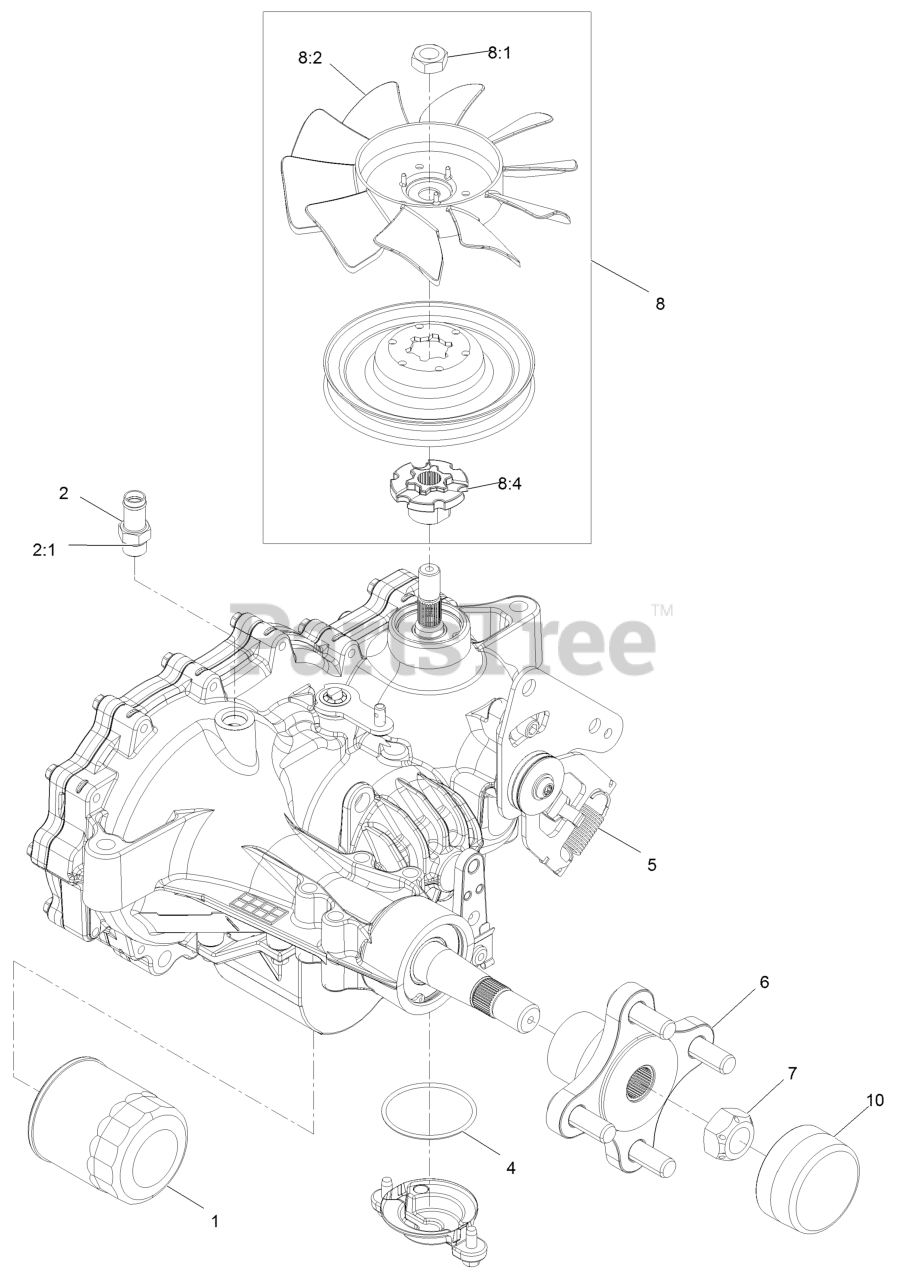

RH Transaxle Assembly No. 116-3174 Parts Diagram

  • Title

1

Exmark 109-3321

ELEMENT-OIL FILTER, HYD

$28.99

$

In Stock, Qty 20+

0

2

Exmark 109-3278

ADAPTER-STRAIGHT

$131.99

$

Usually ships in 3-6 days

0

2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

4

Exmark 109-3540

O RING-SEAL

$6.49

$

In Stock, Qty 20+

0

5

Exmark 109-5592

SPRING-EXTENSION

$17.99

$

In Stock, only 1 left!

0

6

Exmark 109-5939

HUB KIT

$109.99

$

In Stock, only 2 left!

0

7

Exmark 109-3536

NUT-HUB

$23.99

$

In Stock, only 1 left!

0

8

Exmark 125-0059

FAN AND PULLEY KIT
(Superseded to 135-7347)

$95.99

$

In Stock, only 1 left!

0

8:1

Exmark 116-9714

NUT-HJ

$5.49

$

In Stock, only 4 left!

0

8:2

Exmark 126-0226

FAN

$50.99

$

In Stock, only 3 left!

0

8:4

Exmark 116-9705

HUB-PULLEY

$8.49

$

In Stock, only 1 left!

0

10

Exmark 115-5057

COVER-NUT, AXLE

$18.99

$

Usually ships in 3-6 days

0

99

Exmark 109-3537

SEAL KIT
(Superseded to 140-8351)

Note: Not illustrated

$94.99

$

In Stock, Qty 6

0
