PNS710GKC48300 - Exmark 48" Pioneer S-Series Zero-Turn Mower, Kohler ZT710 (SN: 316000000 - 399999999) (2016) Deck Lift Assembly Parts Diagram

48" Pioneer S-Series Zero-Turn Mower, Kohler ZT710

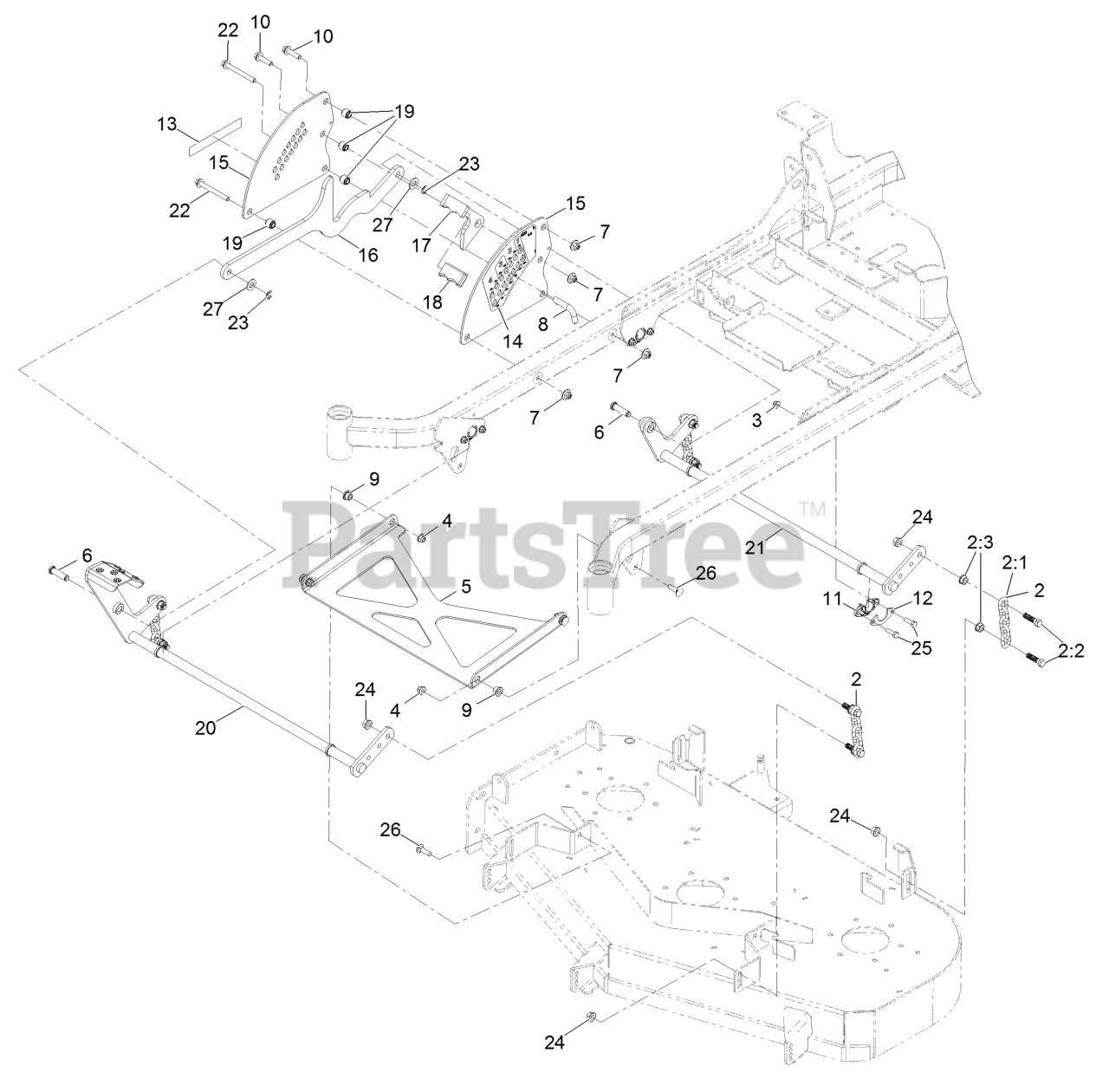

Deck Lift Assembly Parts Diagram

  • Title
2

Exmark 103-9817

DECK CHAIN ASM

$14.99

$

In Stock, only 3 left!

0

2:1

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

2:2

Exmark 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

2:3

$4.49

$

In Stock, Qty 17

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 109-3723-01

STRUT-DECK

$202.99

$

Usually ships in 3-6 days

0

6

Exmark 109-5819

PIN-CLEVIS

$11.99

$

Usually ships in 3-6 days

0

7

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

8

Exmark 116-5584

PIN-HOC

$5.49

$

In Stock, only 4 left!

0

9

Exmark 109-8788

BUSHING-FLANGED

$6.99

$

In Stock, only 3 left!

0

10

Exmark 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

11

Exmark 115-5065

BUSHING-FLANGE

$7.99

$

In Stock, Qty 12

0

12

Exmark 116-2887

GUSSET-LIFT, DECK

$5.49

$

In Stock, Qty 9

0

13

Exmark 126-6998

Decal-S-Series

$5.99

$

Usually ships in 3-6 days

0

14

Exmark 126-4383

DECAL-HEIGHT OF CUT

$16.99

$

Usually ships in 3-6 days

0

15

Exmark 116-4309-03

PLATE,DECK LIFT

$105.99

$

Usually ships in 3-6 days

0

16

$105.99

$

Usually ships in 3-6 days

0

17

Exmark 116-4311

TRANSPORT LOCK-HOC

$47.99

$

Usually ships in 3-6 days

0

18

Exmark 116-4312

GRIP-FLAT

$3.49

$

Usually ships in 3-6 days

0

19

Exmark 116-4313

SPACER-STEP, DOUBLE

$5.49

$

Usually ships in 3-6 days

0

20

Exmark 116-6011-03

WLD-DECK LIFT SHAFT FRT

$180.99

$

Usually ships in 3-6 days

0

21

Exmark 116-6012-03

WLD-DECK LIFT SHAFT RR

$

$

Not available

22

Exmark 116-4701

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

23

Exmark 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

24

$4.49

$

In Stock, Qty 17

0

25

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

27

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
