PNS710GKC48300 - Exmark 48" Pioneer S-Series Zero-Turn Mower, Kohler ZT710 (SN: 315000000 - 315999999) (2015) Roll-Over Protection System Assembly No. 116-3498 Parts Diagram
48" Pioneer S-Series Zero-Turn Mower, Kohler ZT710

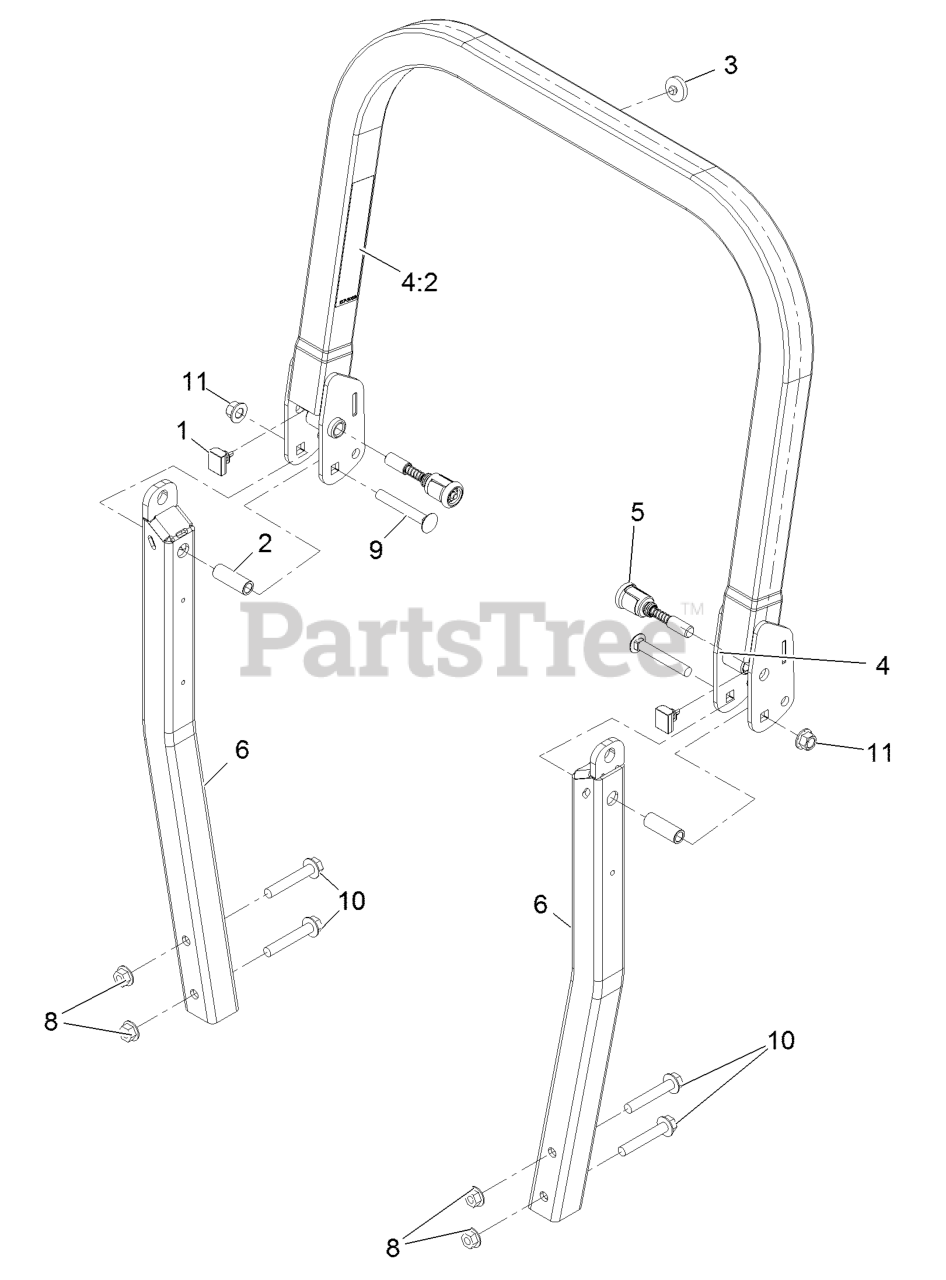

Roll-Over Protection System Assembly No. 116-3498 Parts Diagram
Exmark 109-5337
BUMPER-ROPS
$6.49
$
In Stock, only 4 left!
Exmark 109-6653
SPACER
$6.49
$
In Stock, only 2 left!
Exmark 109-9233
BUMPER-PUSH-IN, RUBBER
$5.49
$
In Stock, Qty 17
Exmark 116-0019
UPPER ROPS ASM
$499.99
$
Usually ships in 3-6 days
Exmark 107-3069
DECAL-WARNING
$22.99
$
Usually ships in 3-6 days
Exmark 116-0104
PIN-SPRING
$47.99
$
In Stock, only 1 left!
6
ASM-Lwr ROPS Leg
Note: Not serviced separately
$
$
Not available
Exmark 32128-49
NUT-HHF
$1.99
$
In Stock, Qty 20+
Exmark 3233-10
SCREW-CARR
$7.49
$
In Stock, only 2 left!
Exmark 3234-40
SCREW-HF
$13.99
$
Usually ships in 3-6 days
Exmark 99-5107
Nut-Lock 1/2-13
$1.99
$
In Stock, Qty 20+
