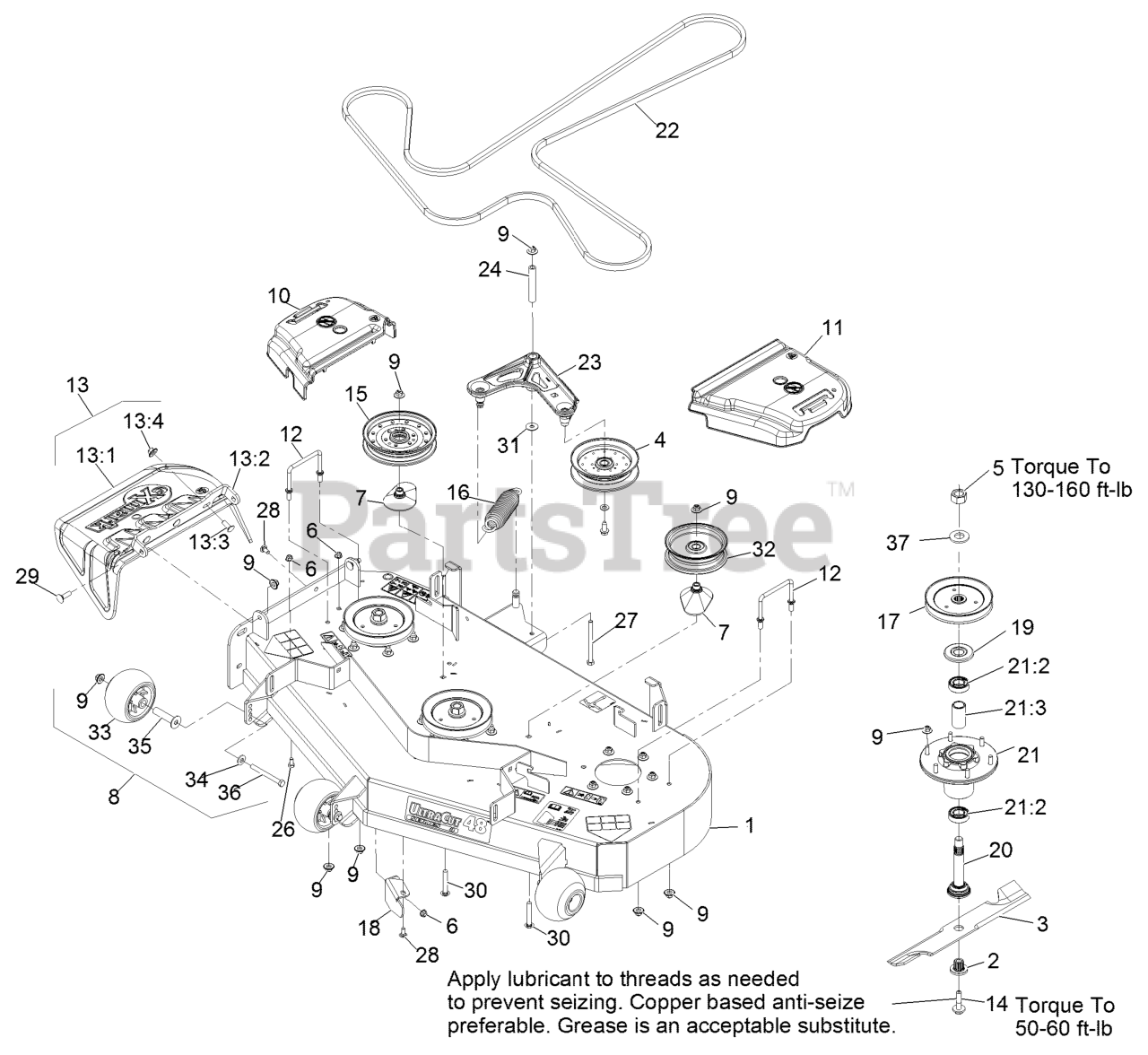

PNS710GKC48300 - Exmark 48" Pioneer S-Series Zero-Turn Mower, Kohler ZT710 (SN: 315000000 - 315999999) (2015) Deck Assembly Parts Diagram

48" Pioneer S-Series Zero-Turn Mower, Kohler ZT710

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-3195

ASM-DECK W/DECALS 48

$2743.99

$

Usually ships in 3-6 days

0

2

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

3

Exmark 103-6381

103-6381-S
(Superseded to 103-6381-S)

$34.99

$

In Stock, Qty 20+

0

3

Exmark 103-6386

103-6386-S
(Superseded to 103-6386-S)

$30.99

$

In Stock, Qty 20+

0

3

Exmark 103-6391

103-6391-S
(Superseded to 103-6391-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$31.99

$

In Stock, Qty 20+

0

3

Exmark 103-6401

103-6401-S
(Superseded to 103-6401-S)

$30.99

$

In Stock, Qty 20+

0

3

Exmark 116-5177

116-5177-S
(Superseded to 116-5177-S)

$31.99

$

In Stock, Qty 20+

0

4

Exmark 116-4668

126-9196
(Superseded to 126-9196)

$60.99

$

In Stock, Qty 20+

0

5

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, Qty 20+

0

8

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$52.99

$

In Stock, Qty 20+

0

9

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

10

Exmark 109-6935

COVER-BELT, RH

$38.99

$

In Stock, Qty 7

0

11

Exmark 109-6936

COVER-BELT, LH

$38.99

$

In Stock, Qty 12

0

12

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, Qty 10

0

13

Exmark 109-7188

ASM,DISCHARGE CHUTE

$115.99

$

In Stock, only 3 left!

0

13:1

Exmark 109-2738

CHUTE,DISCHARGE

$81.99

$

In Stock, Qty 20+

0

13:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$54.99

$

In Stock, only 1 left!

0

13:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

13:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

14

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

15

Exmark 116-4670

126-9189
(Superseded to 126-9189)

$62.99

$

In Stock, Qty 5

0

16

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 20+

0

17

Exmark 116-0674

SHEAVE,BLADE DRIVE 5.90

$77.99

$

In Stock, only 1 left!

0

18

Exmark 116-0680-01

BAFFLE,DISCHARGE 483

$32.99

$

Usually ships in 3-6 days

0

19

Exmark 116-1286

GUARD,BEARING TOP .989

$5.49

$

In Stock, Qty 20+

0

20

Exmark 116-3342

ASM-SPINDLE AND SEAL

$85.99

$

In Stock, only 1 left!

0

21

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$158.99

$

In Stock, Qty 20+

0

21:2

Exmark 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 20+

0

21:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

22

Exmark 116-3455

BELT-B154.88
(Superseded to 116-3455-SL)

$159.99

$

In Stock, only 4 left!

0

23

Exmark 126-0976

IDLER ARM ASM

$113.99

$

In Stock, Qty 9

0

24

Exmark 116-5111

BUSHING

$33.99

$

In Stock, only 1 left!

0

26

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

27

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

28

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

29

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

30

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

31

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

32

Exmark 116-4669

IDLER-PULLEY, FLAT

$79.99

$

In Stock, Qty 20+

0

33

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

34

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

35

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 20+

0

36

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

37

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+
