PNS691KA523 - Exmark 52" Pioneer S-Series Zero-Turn Mower, Kawasaki FX691V (SN: 314000000 - 314999999) (2014) Seat W/Tracks Assembly No. 116-6192 Parts Diagram

52" Pioneer S-Series Zero-Turn Mower, Kawasaki FX691V

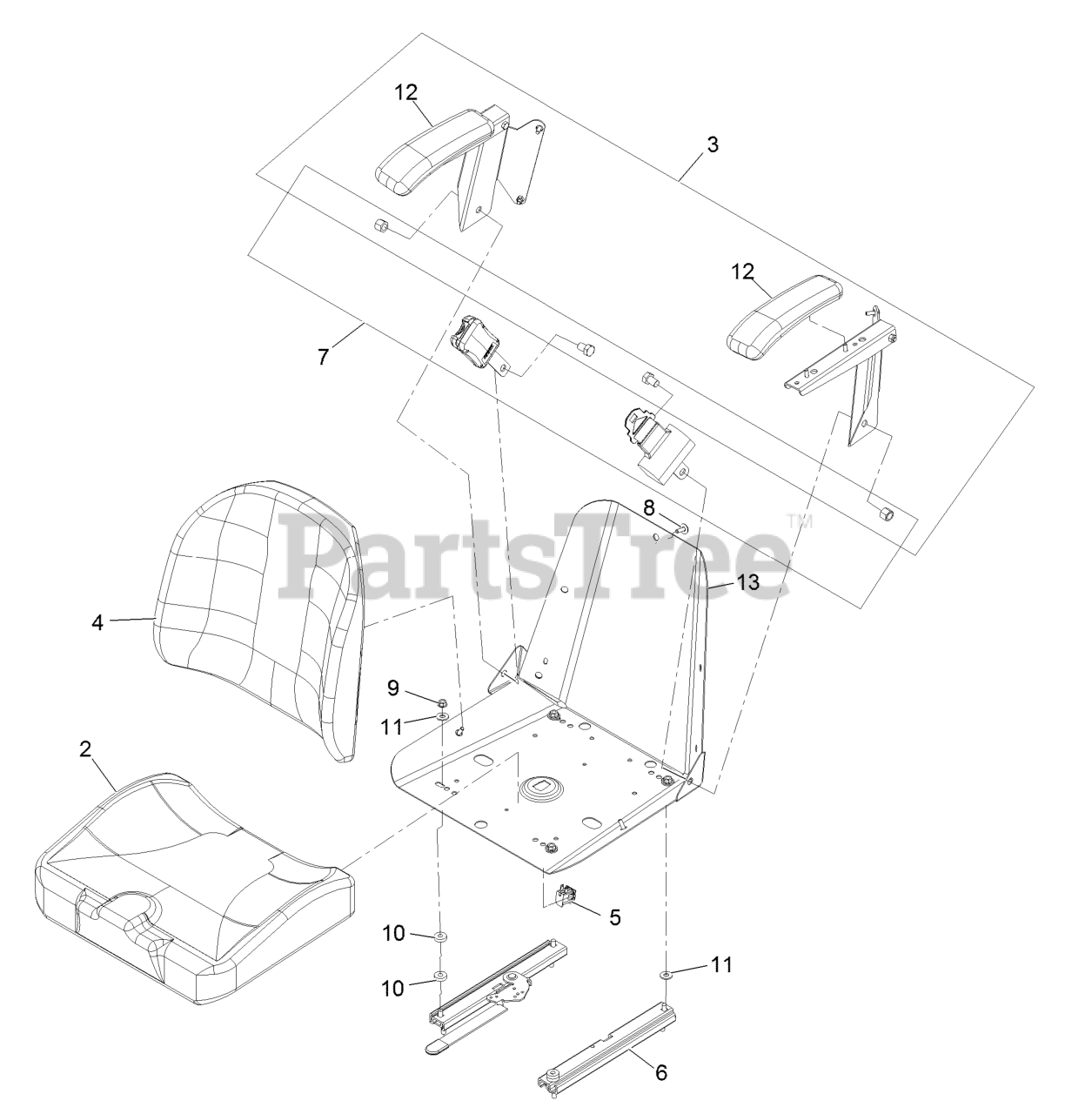

Seat W/Tracks Assembly No. 116-6192 Parts Diagram

  • Title
2

Exmark 116-7329

CUSHION-SEAT BOTTOM

$334.99

$

Usually ships in 3-6 days

0

3

Exmark 110-5719

ARMREST KIT

$182.99

$

Usually ships in 3-6 days

0

4

Exmark 116-3738

CUSHION,SEAT BACK

$334.99

$

Usually ships in 3-6 days

0

5

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

6

Exmark 1-643255

TRACK-SEAT

$217.99

$

In Stock, only 2 left!

0

7

Exmark 116-2981

SEAT BELT KIT

$306.99

$

Usually ships in 3-6 days

0

8

Exmark 103-8383

BOLT-SEAT

$2.99

$

Usually ships in 3-6 days

0

9

$1.49

$

In Stock, Qty 20+

0

10

$6.99

$

Usually ships in 3-6 days

0

11

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Exmark 110-4163

CUSHION-REST, ARM

$94.99

$

Usually ships in 3-6 days

0

13

Exmark 116-7496

FRAME-SEAT

$189.99

$

In Stock, only 2 left!

0
