PNS691KA523 - Exmark 52" Pioneer S-Series Zero-Turn Mower, Kawasaki FX691V (SN: 314000000 - 314999999) (2014) Motion Control Assembly - LH Parts Diagram

52" Pioneer S-Series Zero-Turn Mower, Kawasaki FX691V

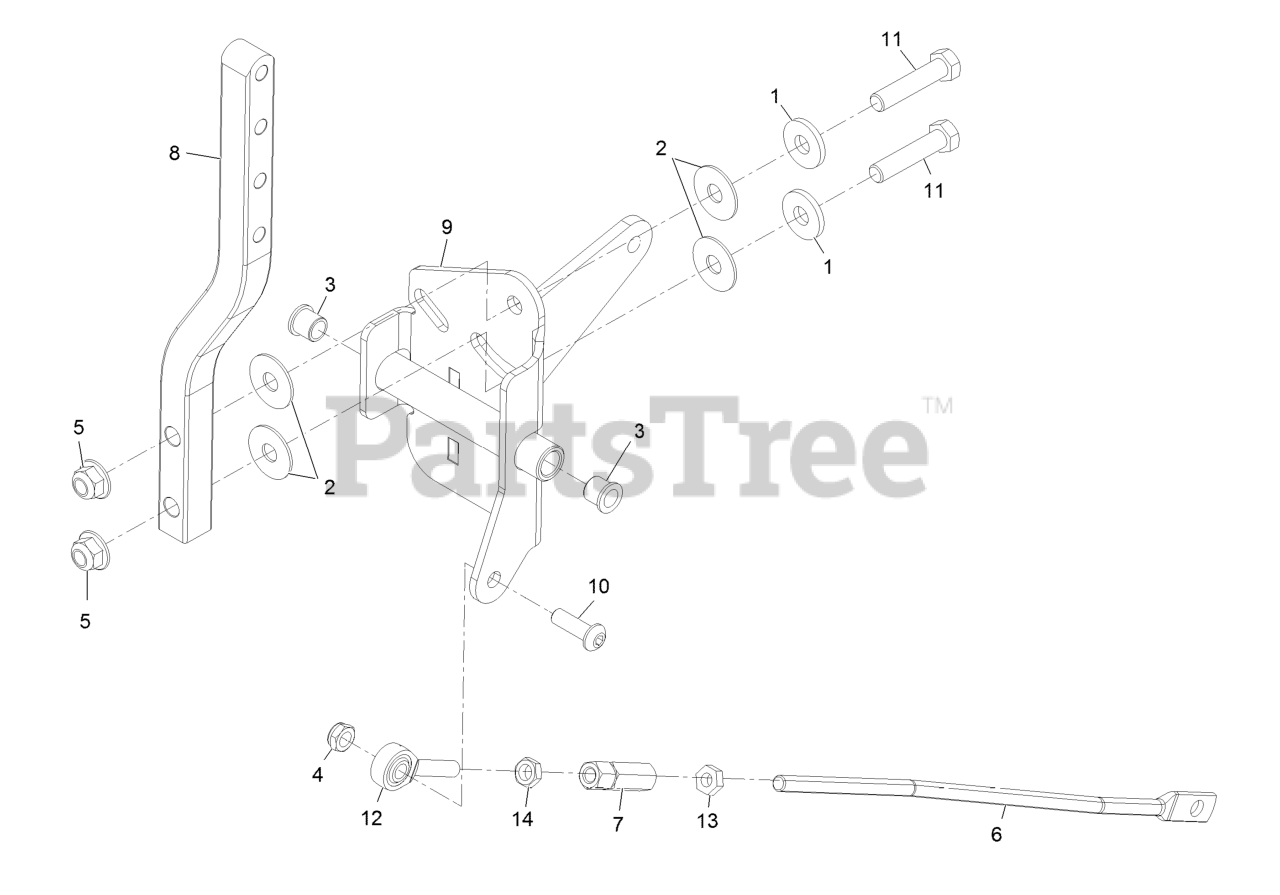

Motion Control Assembly - LH Parts Diagram

  • Title

1

Exmark 5-0838

WASHER

$4.99

$

In Stock, only 1 left!

0

2

Exmark 52-2900

WASHER-PLASTIC

$1.49

$

In Stock, Qty 6

0

3

Exmark 103-9928

BEARING

$7.99

$

In Stock, Qty 20+

0

4

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

5

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 116-2543

LINK,MOTION CONTROL

$20.99

$

Usually ships in 3-6 days

0

7

Exmark 109-3728

NUT-ROD ADJUSTMENT

$45.99

$

Usually ships in 3-6 days

0

8

Exmark 116-3183

ARM-MOTION CONTROL

$222.99

$

Usually ships in 3-6 days

0

9

Exmark 116-5477

126-3710
(Superseded to 126-3710)

$73.99

$

In Stock, only 3 left!

0

10

Exmark 3274-104

SCREW-HSBH

$1.99

$

In Stock, only 4 left!

0

11

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Exmark 2411-53

BEARING-ROD END, LH

$37.99

$

In Stock, only 2 left!

0

13

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

14

Exmark 3220-20

NUT-JAM

$2.49

$

Usually ships in 3-6 days

0
