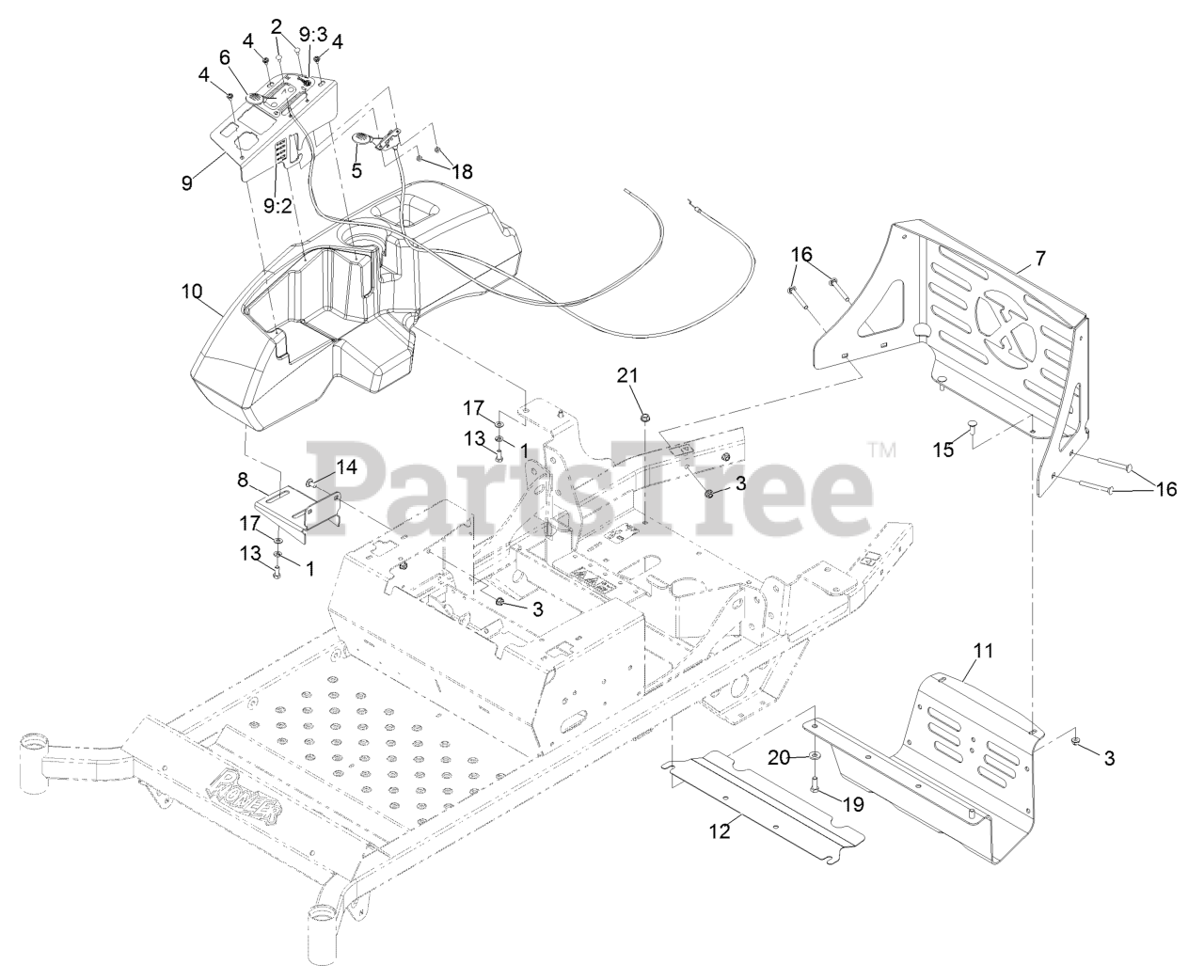

PNE720GKC52200 - Exmark 52" Pioneer E-Series Zero-Turn Mower, Kohler ZT710 (SN: 315000000 - 315999999) (2015) Controls Assembly Parts Diagram

52" Pioneer E-Series Zero-Turn Mower, Kohler ZT710

Controls Assembly Parts Diagram

  • Title

1

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

2

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 109-2661

SCREW-PPH

$1.49

$

In Stock, Qty 11

0

5

Exmark 126-2800

CONTROL-THROTTLE

$40.99

$

In Stock, only 3 left!

0

6

Exmark 109-9147

CONTROL-CHOKE

$42.99

$

In Stock, only 1 left!

0

7

Exmark 116-3453-03

PANEL,REAR GUARD

$232.99

$

Usually ships in 3-6 days

0

8

Exmark 116-3495-03

BRACKET-TANK AND FENDER

$

$

Not available

9

Exmark 116-9051

ASM, CONTROL PANEL W/ DEC

$62.99

$

Usually ships in 3-6 days

0

9:2

Exmark 116-1496

DECAL,FUSE BLOCK

$5.99

$

Usually ships in 3-6 days

0

9:3

Exmark 116-4465

DECAL-THROTTLE CHOKE

$8.99

$

Usually ships in 3-6 days

0

10

Exmark 116-4138

CONSOLE,RH

$

$

Not available

11

Exmark 126-4275-03

GUARD, MUFFLER

$

$

Not available

12

Exmark 126-0456-03

SHIELD, HEAT

$23.99

$

Usually ships in 3-6 days

0

13

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 8

0

15

Exmark 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 5

0

17

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

20

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

21

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0
