PNE710GKC48200 - Exmark 48" Pioneer E-Series Zero-Turn Mower, Kohler ZT710 (SN: 315000000 - 315999999) (2015) Main Frame Assembly Parts Diagram

48" Pioneer E-Series Zero-Turn Mower, Kohler ZT710

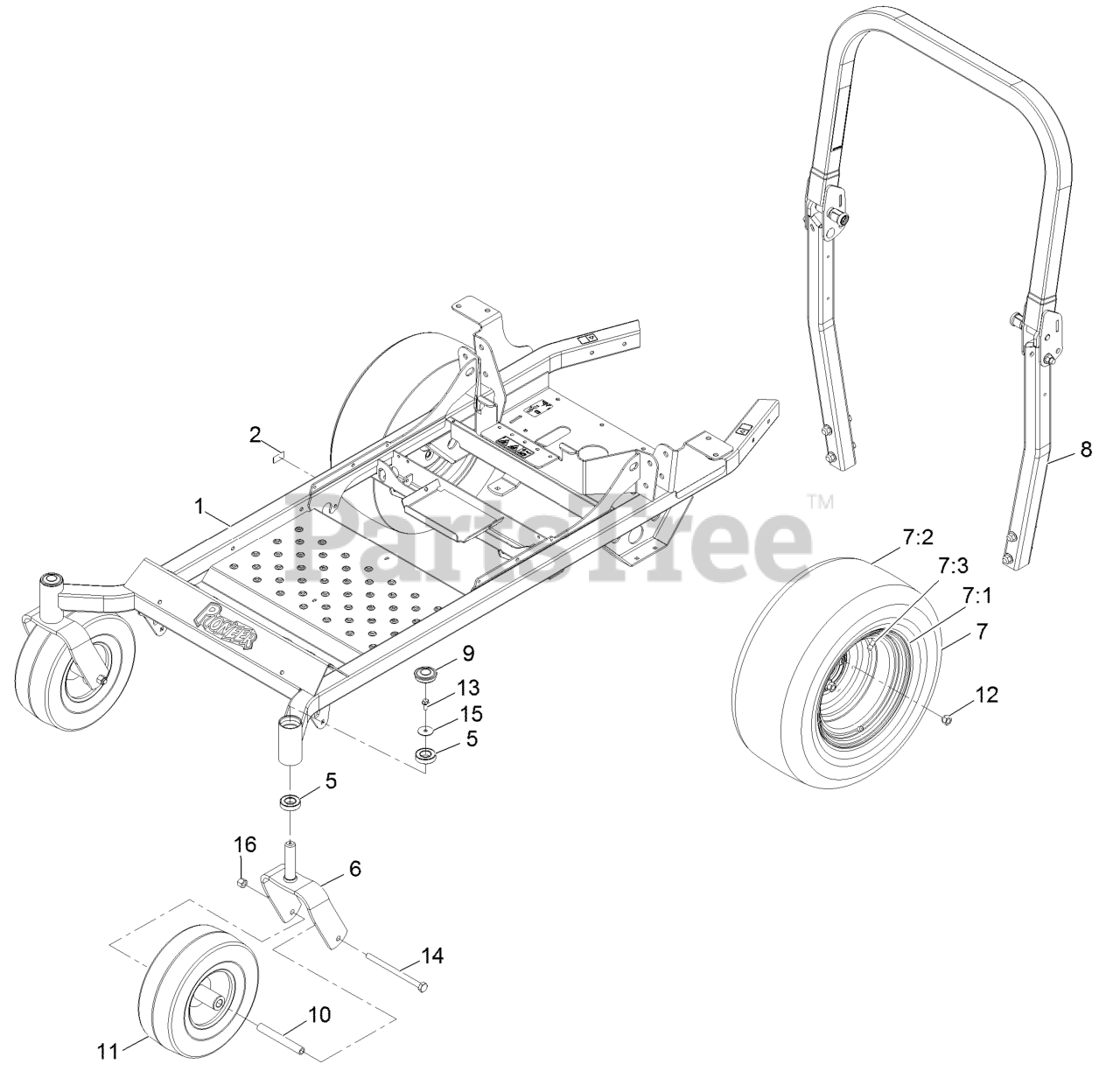

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-6831

FRAME ASM-48-52

$1605.99

$

Usually ships in 3-6 days

0

2

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

0

5

Exmark 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

6

Exmark 116-0611-01

WLD,CASTER FORK

$127.99

$

Usually ships in 3-6 days

0

7

Exmark 116-7331

ASM-WHEEL AND TIRE 20 X 8

$

$

Not available

7:1

Exmark 116-7332

WHEEL-10 X 6.00

$

$

Not available

7:2

Exmark 116-7333

TIRE-20 8.00-10

$116.99

$

In Stock, only 2 left!

0

7:3

Exmark 232-27

Stem-Valve

$

$

Not available

8

Exmark 116-3498

ASM-ROPS PIONEER

$446.99

$

Usually ships in 3-6 days

0

9

Exmark 116-4348

CAP-GREASE

$5.49

$

In Stock, Qty 15

0

10

Exmark 119-3475

SPANNER

$11.99

$

In Stock, Qty 9

0

11

Exmark 120-2251

TIRE AND WHEEL ASM

$132.99

$

In Stock, only 2 left!

0

12

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

13

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

14

Exmark 325-36

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Exmark 3256-68

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

16

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0
