PNE691KA522 - Exmark 52" Pioneer E-Series Zero-Turn Mower, Kawasaki FR691V (SN: 312000000 - 312999999) (2012) Mainframe Assembly Parts Diagram

52" Pioneer E-Series Zero-Turn Mower, Kawasaki FR691V

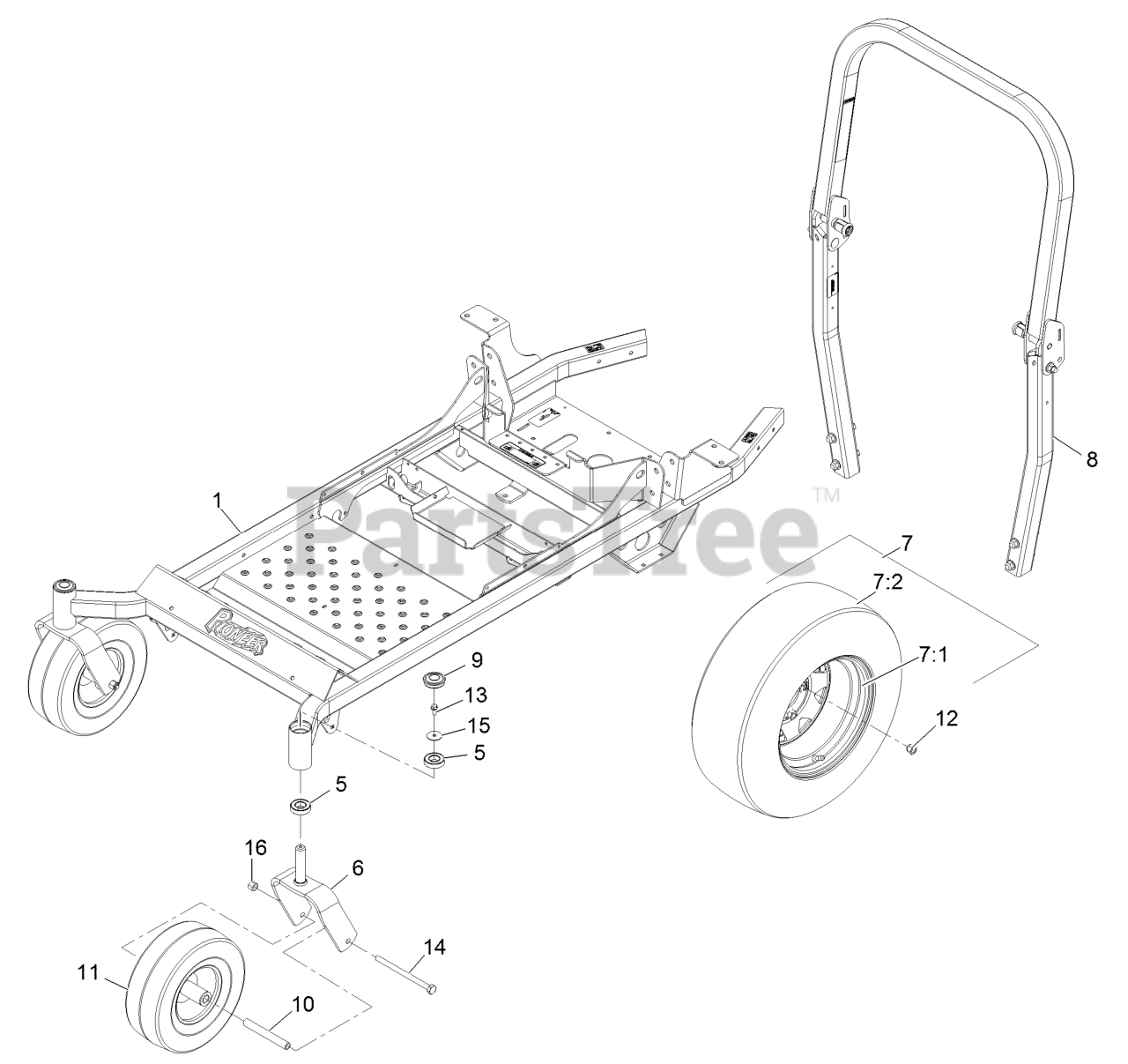

Mainframe Assembly Parts Diagram

  • Title

1

Exmark 116-6831

FRAME ASM-48-52

$1529.99

$

Usually ships in 3-6 days

0

5

Exmark 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

6

Exmark 116-0611-01

WLD,CASTER FORK

$109.99

$

Usually ships in 3-6 days

0

7

Exmark 116-3163

WHEEL AND TIRE ASM

$

$

Not available

7:1

Exmark 116-2299

WHEEL,10 X 6.00

$

$

Not available

7:2

Exmark 116-3165

TIRE

$254.99

$

Usually ships in 3-6 days

0

8

Exmark 116-3498

ASM-ROPS PIONEER

$446.99

$

Usually ships in 3-6 days

0

9

Exmark 116-4348

CAP-GREASE

$5.49

$

In Stock, Qty 16

0

10

Exmark 119-3475

SPANNER

$11.99

$

In Stock, Qty 9

0

11

Exmark 120-2251

TIRE AND WHEEL ASM

$132.99

$

In Stock, only 3 left!

0

12

Exmark 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0

13

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

14

Exmark 325-36

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Exmark 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 4 left!

0

16

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0
