PNE691KA522 - Exmark 52" Pioneer E-Series Zero-Turn Mower, Kawasaki FR691V (SN: 312000000 - 312999999) (2012) Fuel Tank Assembly No. 116-4610 Parts Diagram

52" Pioneer E-Series Zero-Turn Mower, Kawasaki FR691V

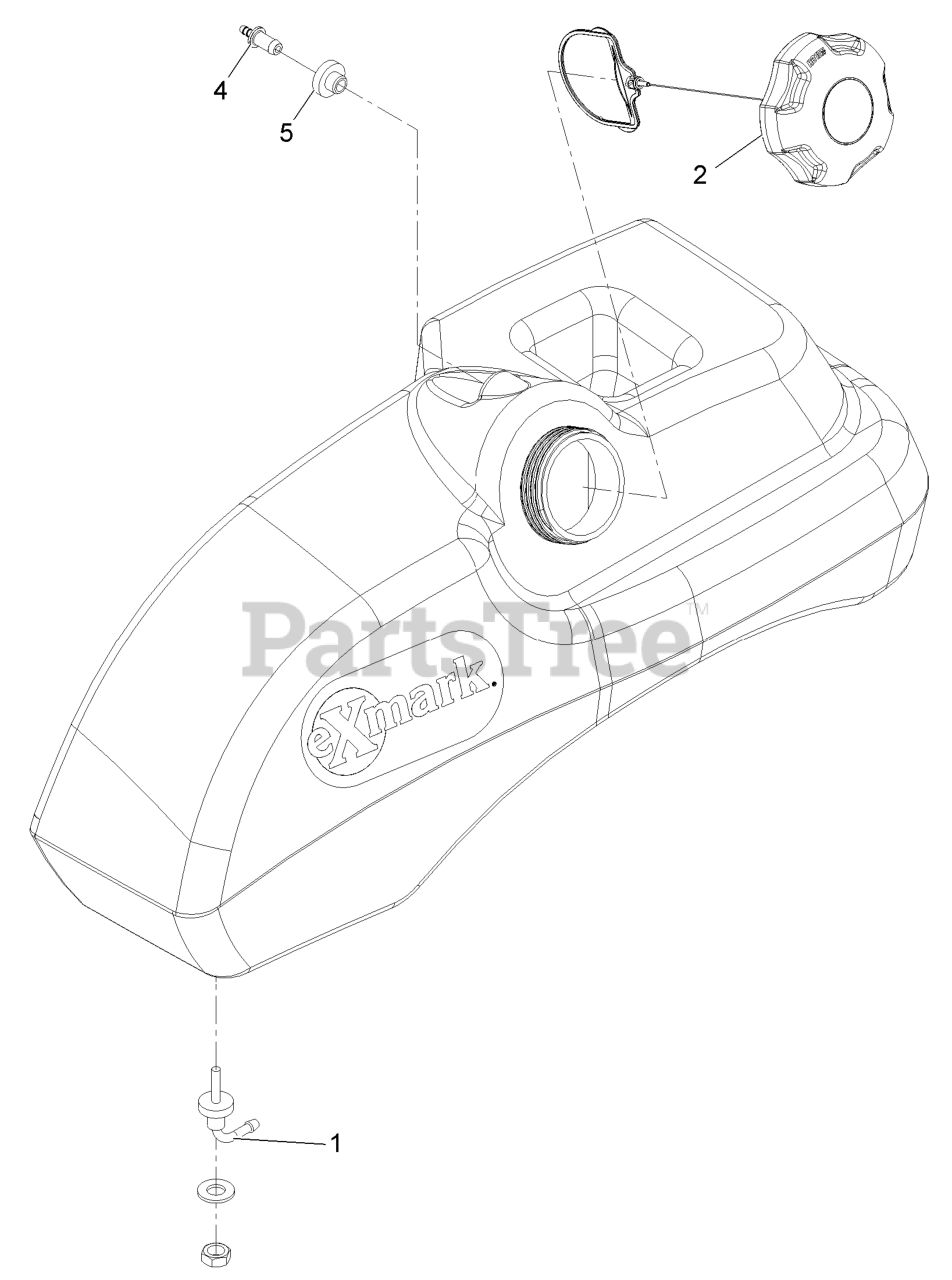

Fuel Tank Assembly No. 116-4610 Parts Diagram

  • Title
1

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$36.99

$

In Stock, only 2 left!

0

2

Exmark 120-5461

137-4119
(Superseded to 137-4119)

$27.99

$

In Stock, only 1 left!

0

4

Exmark 116-4630

FITTING-ORIFICE, STRAIGHT

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0
