PNE691KA522 - Exmark 52" Pioneer E-Series Zero-Turn Mower, Kawasaki FR691V (SN: 312000000 - 312999999) (2012) Deck Assembly Parts Diagram

52" Pioneer E-Series Zero-Turn Mower, Kawasaki FR691V

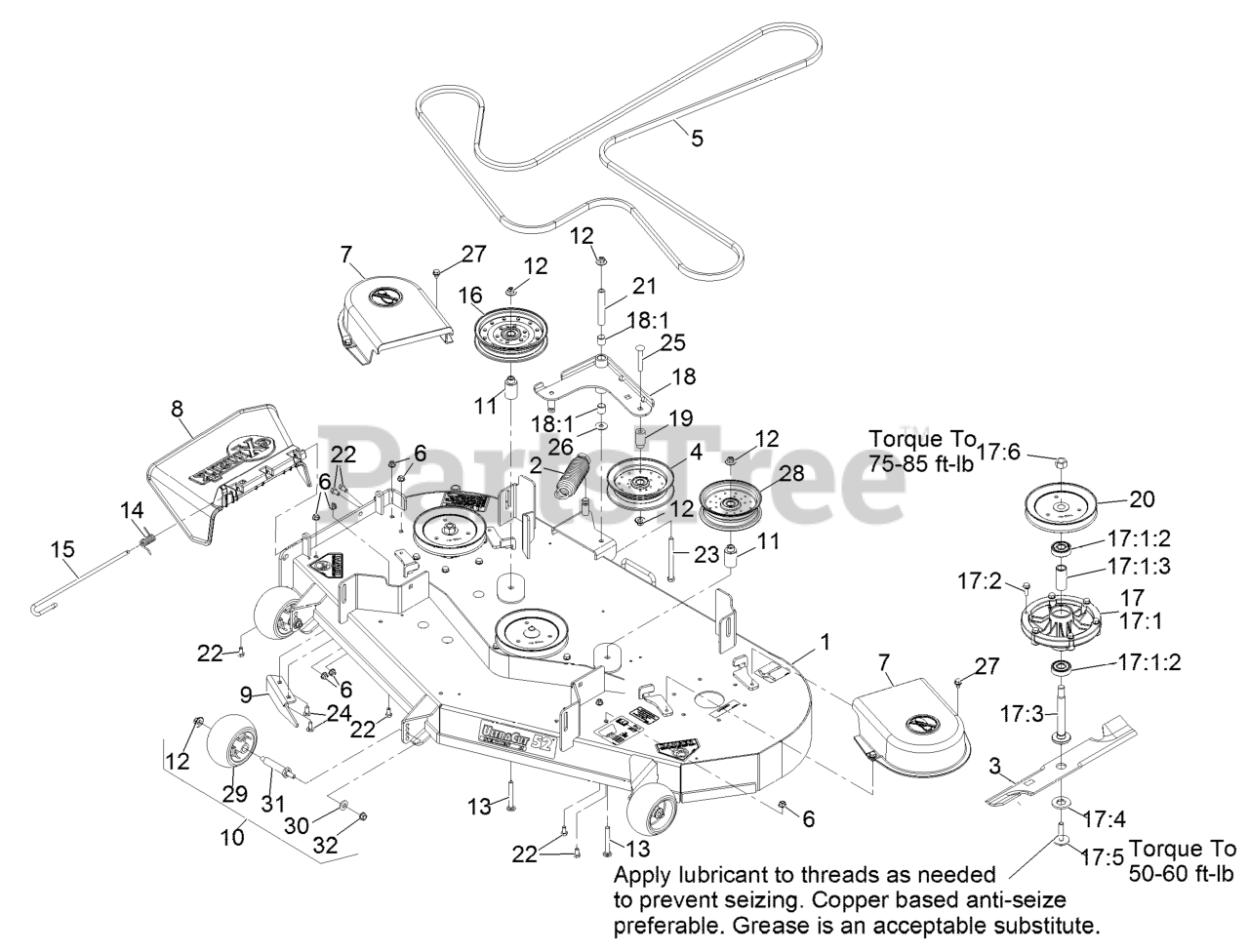

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-5048

ASM-522 DECK W/DECALS

$2638.99

$

Usually ships in 3-6 days

0

2

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

3

Exmark 116-5175

116-5175-S
(Superseded to 116-5175-S)

$30.99

$

In Stock, Qty 20+

0

3

Exmark 103-6382

103-6382-S
(Superseded to 103-6382-S)

$36.99

$

In Stock, only 4 left!

0

3

Exmark 109-6390

109-6390-S
(Superseded to 109-6390-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$27.99

$

In Stock, Qty 11

0

3

Exmark 103-6402

103-6402-S
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

3

Exmark 103-6387

103-6387-S
(Superseded to 103-6387-S)

$31.99

$

In Stock, Qty 11

0

4

Exmark 116-4668

126-9196
(Superseded to 126-9196)

$60.99

$

In Stock, Qty 20+

0

5

Exmark 103-9273

BELT-B162.50
(Superseded to 103-9273-SL)

$137.99

$

In Stock, only 2 left!

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

7

Exmark 109-3449

SHIELD-BELT

$33.99

$

In Stock, Qty 8

0

8

Exmark 109-5151

CHUTE DEFLECTOR XRK M056

$52.99

$

In Stock, Qty 11

0

9

Exmark 109-5498-03

BAFFLE-DISCHARGE

$44.99

$

In Stock, only 1 left!

0

10

Exmark 103-4051

116-9981
(Superseded to 116-9981)

$52.99

$

In Stock, Qty 20+

0

11

Exmark 109-6572

BUSHING-IDLER

$14.99

$

In Stock, Qty 11

0

12

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

13

Exmark 109-6868

BOLT-CARRIAGE

$5.49

$

In Stock, Qty 11

0

14

Exmark 109-6886

SPRING-TORSION

$8.49

$

In Stock, Qty 14

0

15

Exmark 109-8854

PIN-CHUTE

$15.99

$

In Stock, only 1 left!

0

16

Exmark 116-4670

126-9189
(Superseded to 126-9189)

$61.99

$

In Stock, Qty 8

0

17

Exmark 116-5138

CUTTER HOUSING ASM

$170.99

$

In Stock, only 3 left!

0

17:1

Exmark 116-5137

HOUSING-CUTTER

$163.99

$

In Stock, only 3 left!

0

17:1:2

Exmark 116-4004

BEARING

$19.99

$

In Stock, only 3 left!

0

17:1:3

Exmark 116-4876

SPACER-BEARING

$7.99

$

In Stock, only 2 left!

0

17:2

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

17:3

Exmark 109-7431

SPINDLE-HEX PILOT

$37.99

$

In Stock, Qty 5

0

17:4

Exmark 109-7429

WASHER-BLADE DRIVE

$5.49

$

In Stock, Qty 18

0

17:5

Exmark 116-0005

BOLT-BLADE, SEM

$7.99

$

In Stock, Qty 20+

0

17:6

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

18

Exmark 116-4693

126-0976
(Superseded to 126-0976)

$108.99

$

In Stock, Qty 10

0

18:1

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

19

Exmark 116-4714

BUSHING-IDLER

$16.99

$

In Stock, only 2 left!

0

20

Exmark 116-5044

SHEAVE,BLADE DRIVE 6.50

$64.99

$

In Stock, only 1 left!

0

21

Exmark 116-5111

BUSHING

$33.99

$

In Stock, only 1 left!

0

22

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

23

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

24

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

25

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 14

0

26

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 13

0

27

Exmark 9266934

SCREW

$8.99

$

In Stock, only 2 left!

0

28

Exmark 116-4669

IDLER-PULLEY, FLAT

$79.99

$

In Stock, Qty 20+

0

29

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

30

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

31

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 5

0

32

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0
