PNE22KA482 - Exmark 48" Pioneer E-Series Zero-Turn Mower, 22hp Kawasaki (SN: 920000 - 999999) (2011) Deck Assembly Parts Diagram

48" Pioneer E-Series Zero-Turn Mower, 22hp Kawasaki

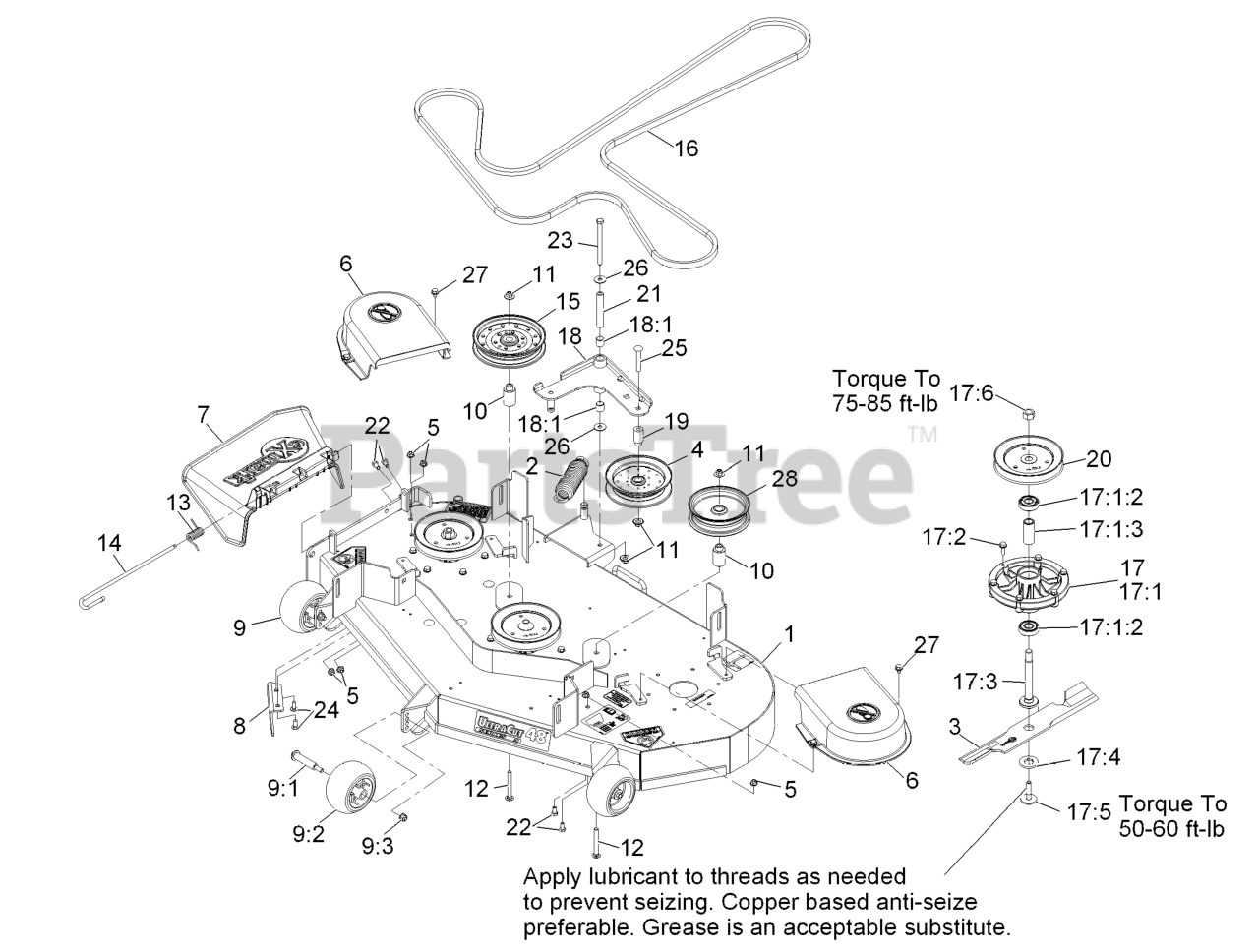

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-5047

ASM-482 DECK W/DECALS

$

$

Not available

2

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

3

Exmark 103-6401

103-6401-S
(Superseded to 103-6401-S)

$30.99

$

In Stock, Qty 20+

0

3

Exmark 109-6389

109-6389-S
(Superseded to 109-6389-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$26.99

$

In Stock, Qty 13

0

3

Exmark 103-6386

103-6386-S
(Superseded to 103-6386-S)

$30.99

$

In Stock, Qty 20+

0

3

Exmark 103-6396

116-5177-S
(Superseded to 116-5177-S)

$31.99

$

In Stock, Qty 20+

0

3

Exmark 103-6381

103-6381-S
(Superseded to 103-6381-S)

$34.99

$

In Stock, Qty 20+

0

4

Exmark 103-8743

126-9196
(Superseded to 126-9196)

$60.99

$

In Stock, Qty 20+

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

6

Exmark 109-3449

SHIELD-BELT

$33.99

$

In Stock, Qty 8

0

7

Exmark 109-5151

CHUTE DEFLECTOR XRK M056

$52.99

$

In Stock, Qty 11

0

8

Exmark 109-5498-03

BAFFLE-DISCHARGE

$44.99

$

In Stock, only 1 left!

0

9

Exmark 109-6388

ANTI-SCALP ROLLER KIT

$43.99

$

In Stock, only 4 left!

0

9:1

Exmark 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

9:2

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

9:3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 109-6572

BUSHING-IDLER

$14.99

$

In Stock, Qty 11

0

11

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 109-6868

BOLT-CARRIAGE

$5.49

$

In Stock, Qty 11

0

13

Exmark 109-6886

SPRING-TORSION

$8.49

$

In Stock, Qty 14

0

14

Exmark 109-8854

PIN-CHUTE

$15.99

$

In Stock, only 1 left!

0

15

Exmark 114-5895

126-9189
(Superseded to 126-9189)

$61.99

$

In Stock, Qty 8

0

16

Exmark 116-3455

BELT-B154.88
(Superseded to 116-3455-SL)

$152.99

$

In Stock, only 4 left!

0

17

Exmark 116-5138

CUTTER HOUSING ASM

$170.99

$

In Stock, only 3 left!

0

17:1

Exmark 116-5137

HOUSING-CUTTER

$163.99

$

In Stock, only 3 left!

0

17:1:2

Exmark 116-4004

BEARING

$19.99

$

In Stock, only 3 left!

0

17:1:3

Exmark 116-4876

SPACER-BEARING

$7.99

$

In Stock, only 2 left!

0

17:2

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

17:3

Exmark 109-7431

SPINDLE-HEX PILOT

$37.99

$

In Stock, Qty 5

0

17:4

Exmark 109-7429

WASHER-BLADE DRIVE

$5.49

$

In Stock, Qty 18

0

17:5

Exmark 116-0005

BOLT-BLADE, SEM

$7.99

$

In Stock, Qty 20+

0

17:6

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

18

Exmark 116-4693

126-0976
(Superseded to 126-0976)

$108.99

$

In Stock, Qty 10

0

18:1

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

19

Exmark 116-4714

BUSHING-IDLER

$16.99

$

In Stock, only 2 left!

0

20

Exmark 116-5043

SHEAVE,BLADE DRIVE 5.90

$60.99

$

In Stock, only 1 left!

0

21

Exmark 116-5111

BUSHING

$33.99

$

In Stock, only 1 left!

0

22

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

23

Exmark 323-38

SCREW-HH

$11.99

$

In Stock, only 1 left!

0

24

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

25

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 14

0

26

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 13

0

27

Exmark 9266934

SCREW

$8.99

$

In Stock, only 2 left!

0

28

Exmark 99-8912

116-4669
(Superseded to 116-4669)

$79.99

$

In Stock, Qty 20+

0
