PMHA 7480 (80529) - Snapper 48" Pro Mower Deck Assembly Blade Brake 48" Deck (Manual Blade) Parts Diagram

48" Pro Mower Deck Assembly

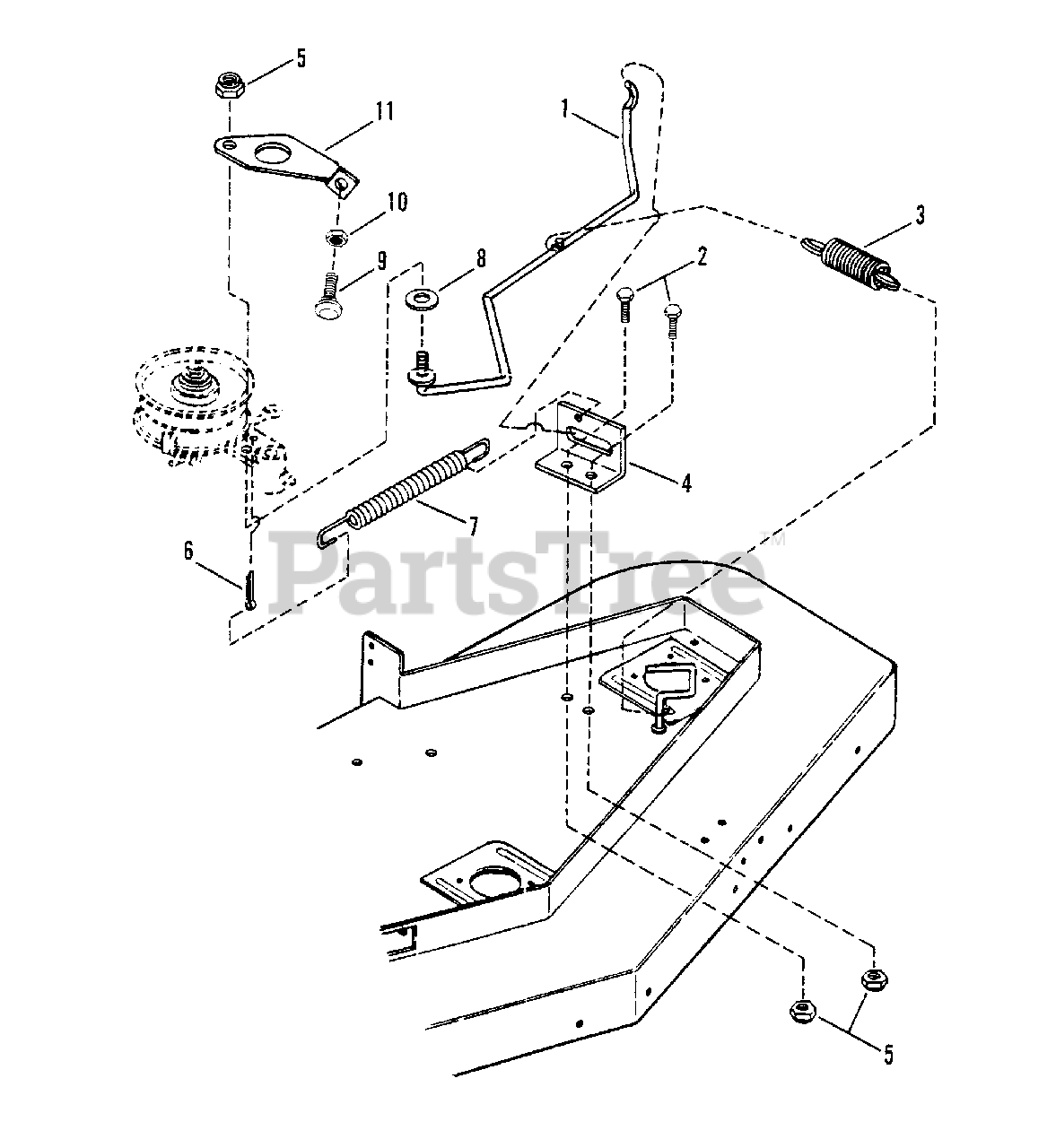

Blade Brake 48" Deck (Manual Blade) Parts Diagram

  • Title

1

Snapper 7024255

GUIDE, Brake Belt
(Superseded to 7024255YP)

$34.99

$

In Stock, only 3 left!

0

2

Snapper 7091540

SCREW, 3/8 - 16 x 3/4" HHC
(Superseded to 703906)

Note: Was 91066

$4.99

$

In Stock, only 4 left!

0

3

Snapper 7016158

SPRING, Traction
(Superseded to 7016158YP)

$

$

Not available

4

Snapper 7033491

BRACKET, Brake Arm
(Superseded to 7033491YP)

$16.99

$

Usually ships in 2-12 days

0

5

Snapper 7091299

NUT, 3/8 Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7090357

COTTER PIN, 3/16 x 3/4"
(Superseded to 7090357YP)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7012264

SPRING, Idler Return
(Superseded to 7012264YP)

$6.99

$

In Stock, Qty 16

0

8

Snapper 7017855

WASHER, 3/8 Wave

$

$

Currently unavailable

9

Snapper 7091178

BOLT, 5/16 - 18 x 1 3/4 Carriage

$

$

Currently unavailable

10

Snapper 7090197

NUT, 5/16-18 Jam
(Superseded to 7090197YP)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7024254

ARM, Brake, 48"
(Superseded to 7024254YP)

$25.99

$

Usually ships in 2-12 days

0
