PMHA 7480 (80529) - Snapper 48" Pro Mower Deck Assembly 48" Mower Deck Assembly Parts Diagram

48" Pro Mower Deck Assembly

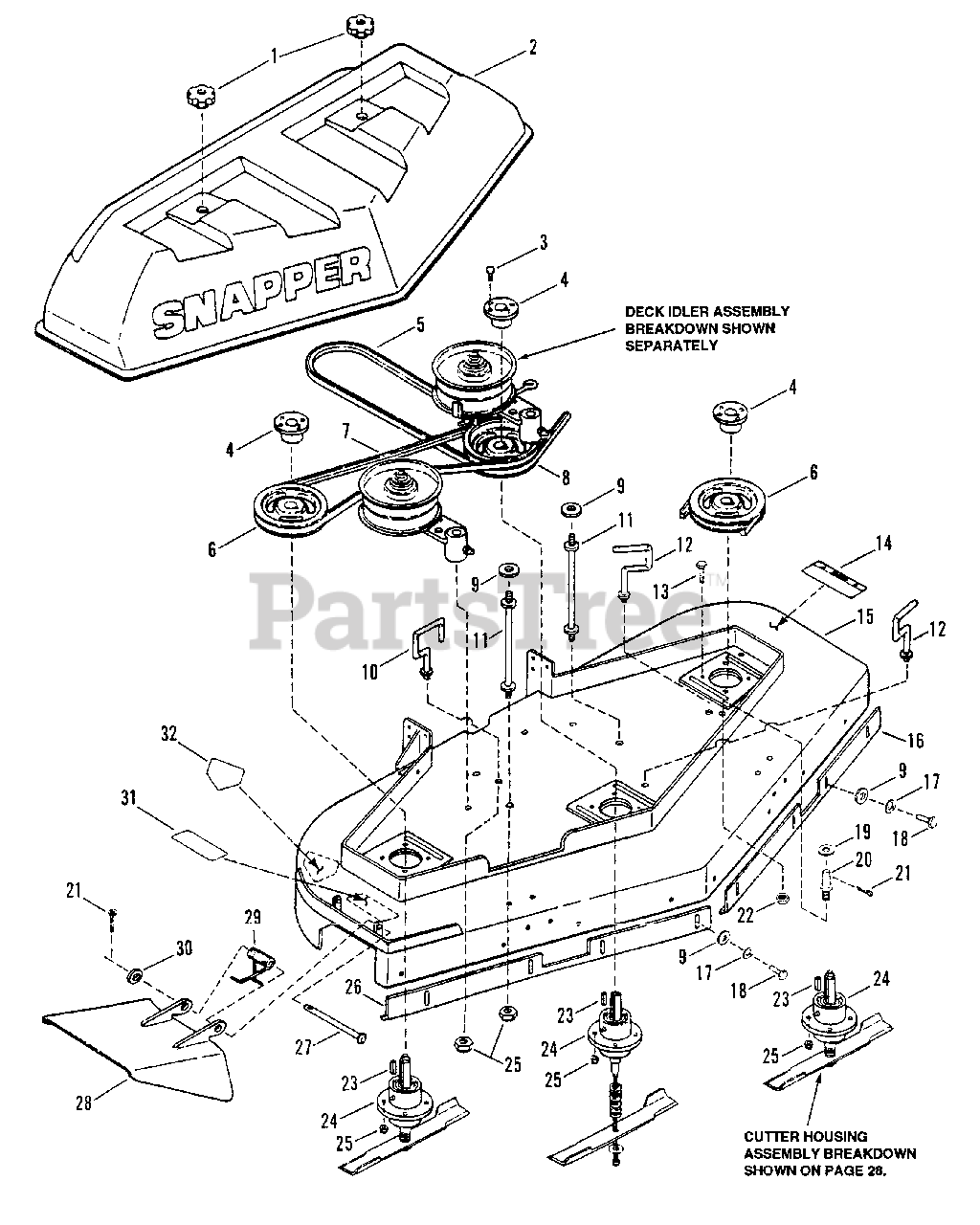

48" Mower Deck Assembly Parts Diagram

  • Title

1

Snapper 7017874

KNOB, Hood
(Superseded to 7017874YP)

Note: Was 27134

$378.99

$

Usually ships in 2-12 days

0

2

Snapper 7017874

HOOD, 48" Silver
(Superseded to 7017874YP)

Note: Was 27134

$378.99

$

Usually ships in 2-12 days

0

3

Snapper 7090643

BOLT, 1/4-20 x 7/8" Hex Head Cap
(Superseded to 7090643YP)

$

$

Not available

4

Snapper 7023381

BUSHING, Taperlock
(Superseded to 7023381YP)

$50.99

$

Usually ships in 2-12 days

0

5

Snapper 7024678

BELT, Engine/Deck 48"
(Superseded to 7024678YP)

Note: (Manual Blade)

$57.99

$

Usually ships in 2-12 days

0

Snapper 7029907

BELT, Engine/Deck 48"
(Superseded to 7029907YP)

Note: Was 22541 (Electric Clutch)

$57.99

$

In Stock, only 2 left!

0

6

Snapper 7017336

PULLEY, Single
(Superseded to 7017336YP)

Note: (Manual Blade)

$90.99

$

Usually ships in 2-12 days

0

Snapper 7017337

PULLEY, Single

Note: (Electric Clutch)

$

$

Not available

7

Snapper 7019205

BELT, Blade - Blade, 48"
(Superseded to 7019205YP)

$56.99

$

In Stock, only 1 left!

0

8

Snapper 7017337

PULLEY, Double

$

$

Not available

9

Snapper 7091047

WASHER, 13/32 I.D. x 1 1/2 O.D.

$

$

Not available

10

Snapper 7024285

GUIDE, Belt
(Superseded to 7024285YP)

$13.99

$

Usually ships in 2-12 days

0

11

Snapper 7022890

STUD, Hood
(Superseded to 7022890YP)

$18.99

$

Usually ships in 2-12 days

0

12

Snapper 7033417

GUIDE, Belt
(Superseded to 7033417YP)

$23.99

$

Usually ships in 2-12 days

0

13

Snapper 7091328

SCREW, 3/8 x 1 1/4 HHC
(Superseded to 703871)

Note: Was 76941

$4.99

$

Usually ships in 2-12 days

0

14

Snapper 7027881

DECAL, Caution

$

$

Currently unavailable

15

Snapper 7026929

DECK WELDMENT, 48"
(Superseded to 7026929YP)

$2108.99

$

Usually ships in 2-12 days

0

16

Snapper 7032957

SKIRT, Front, Left Hand

$

$

Not available

17

Snapper 7090118

WASHER, 3/8 Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

18

Snapper 7091086

SCREW, 3/8 - 16 x 3/4 HHC
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

19

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

20

Snapper 7015464

STUD, Clutch Link
(Superseded to 7015464YP)

$7.49

$

In Stock, only 1 left!

0

21

Snapper 7091313

COTTER PIN
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 1 left!

0

22

Snapper 7090289

NUT, 3/8 - 24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

23

Snapper 7017033

KEY, Spindle
(Superseded to 7017033YP)

$5.49

$

In Stock, only 4 left!

0

24

Snapper 7052457

ASSEMBLY, Cutter Housing
(Superseded to 7052457YP)

Note: (Manual Blade)

$569.99

$

Usually ships in 2-12 days

0

Snapper 7052369

ASSEMBLY, Cutter Housing

Note: (Electric Clutch)

$

$

Currently unavailable

25

Snapper 7091299

NUT, 3/8 - 16 Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

26

Snapper 7032958

SKIRT, Front, Right Hand

$

$

Currently unavailable

27

Snapper 7024124

ROD, Chute Pivot
(Superseded to 7024124YP)

$13.99

$

Usually ships in 2-12 days

0

28

Snapper 7040659

DEFLECTOR, 48" Chute
(Superseded to 7040659YP)

$128.99

$

Usually ships in 2-12 days

0

29

Snapper 7024125

SPRING, Chute
(Superseded to 7027950YP)

$

$

Not available

30

Snapper 7090188

WASHER, 5/16 SAE Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

31

Snapper 7022522

DECAL, Caution
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0

32

Snapper 7013010

DECAL, Warning
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0
