PMHA 7480 (80529) - Snapper 48" Pro Mower Deck Assembly 48" Blade/Blade Manual Deck Idler Assembly Parts Diagram

48" Pro Mower Deck Assembly

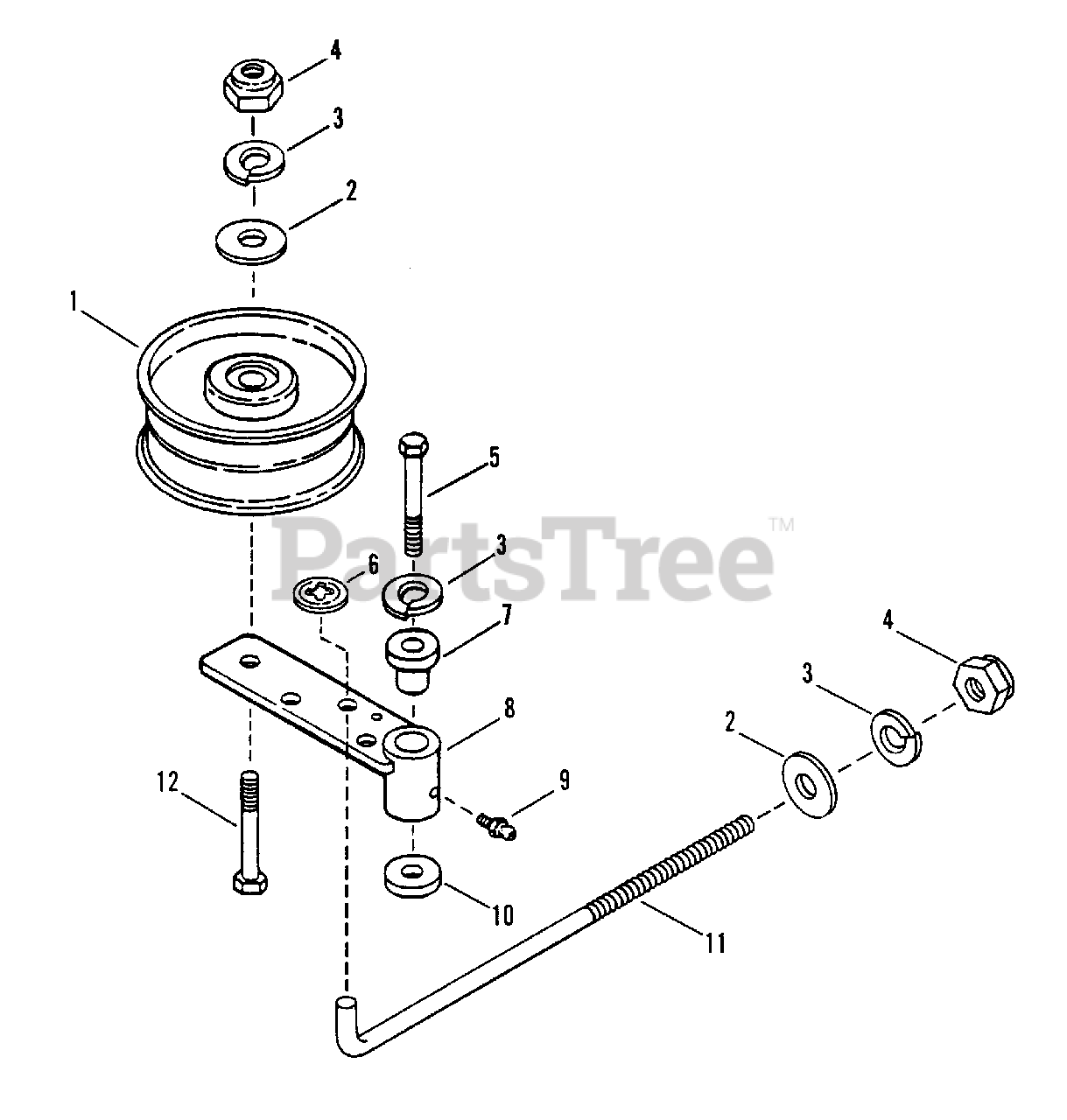

48" Blade/Blade Manual Deck Idler Assembly Parts Diagram

  • Title
1

Snapper 7024761

PULLEY, Idler, 5.25
(Superseded to 7024761YP)

$76.99

$

Usually ships in 2-12 days

0

2

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

3

Snapper 7090118

WASHER, 3/8 Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

4

Snapper 7091299

NUT, 3/8 Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7090590

BOLT, 3/8 - 16 x 3" HHC
(Superseded to 7090590YP)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7013946

RETAINER, 3/8
(Superseded to 7013946YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7016173

SPACER, Pivot
(Superseded to 7016173YP)

$6.99

$

Usually ships in 2-12 days

0

8

Snapper 7041009

WELDMENT, 48" Blade/Blade
(Superseded to 7041009YP)

$111.99

$

Usually ships in 2-12 days

0

9

Snapper 7076998

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

10

Snapper 7016561

BUSHING
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 5

0

11

Snapper 7017161

ROD, 11.25"
(Superseded to 7017161YP)

$32.99

$

Usually ships in 2-12 days

0

12

Snapper 7091305

SCREW, 3/8-16 x 2" Hex Head Cap
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

In Stock, only 1 left!

0
