PMHA 7360 (80528) - Snapper 36" Pro Mower Deck Assembly 36" Mower Deck Assembly Parts Diagram

36" Pro Mower Deck Assembly

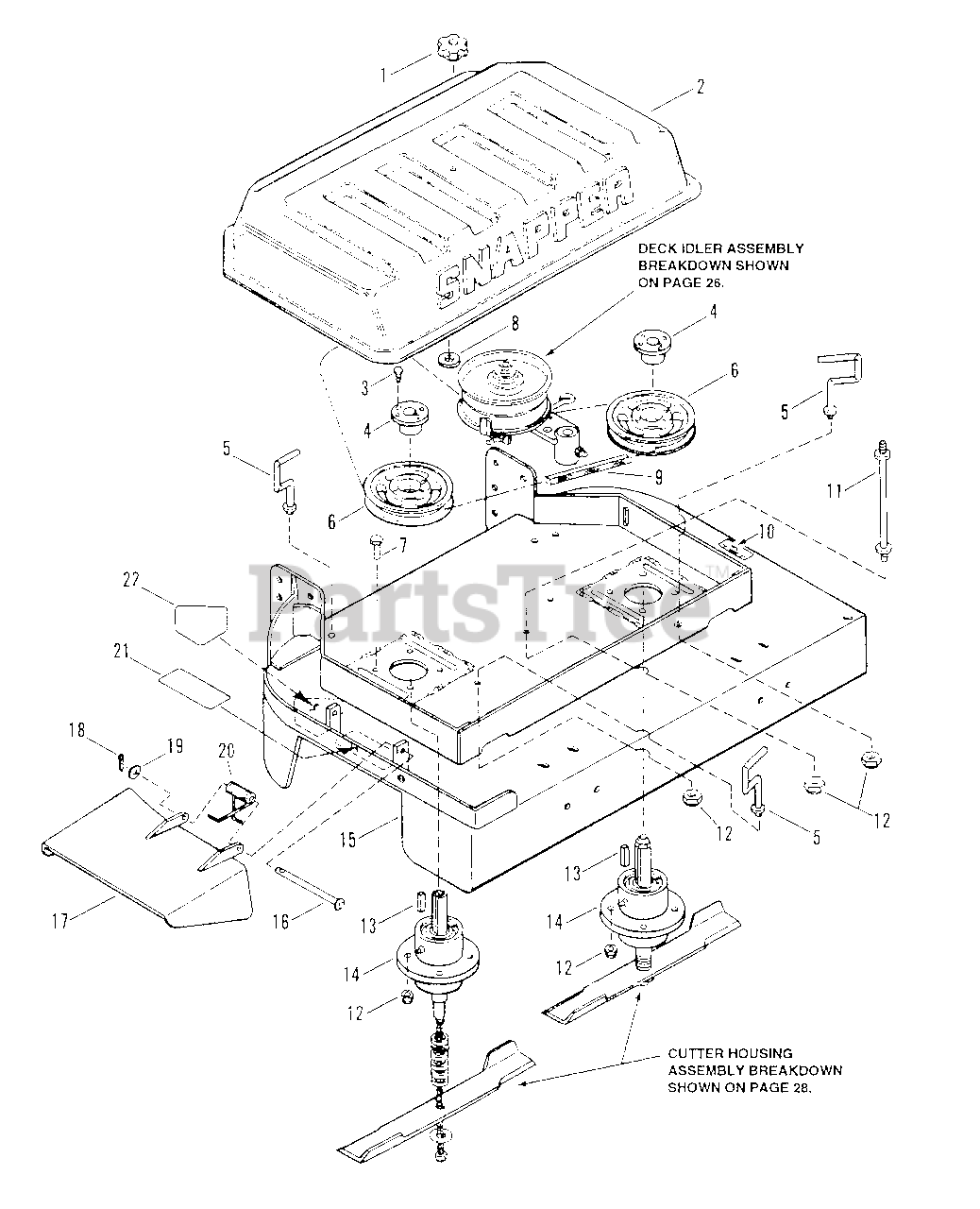

36" Mower Deck Assembly Parts Diagram

  • Title

1

Snapper 7023735

KNOB, Hood
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

2

Snapper 7027133

HOOD, 36" Silver
(Superseded to 7027133YP)

$376.99

$

Usually ships in 2-12 days

0

3

Snapper 7090643

BOLT, 1/4 - 20 x 7/8" HHC
(Superseded to 7090643YP)

$

$

Not available

4

Snapper 7023381

BUSHING, Taperlock
(Superseded to 7023381YP)

$50.99

$

Usually ships in 2-12 days

0

5

Snapper 7033417

GUIDE, Belt
(Superseded to 7033417YP)

$23.99

$

Usually ships in 2-12 days

0

6

Snapper 7017336

PULLEY, Single
(Superseded to 7017336YP)

Note: (Manual Blade)

$90.99

$

Usually ships in 2-12 days

0

Snapper 7017337

PULLEY, Double

Note: (Electric Clutch)

$

$

Not available

7

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap
(Superseded to 703871)

Note: Was 76941

$4.99

$

Usually ships in 2-12 days

0

8

Snapper 7091047

WASHER, 13/32 I.D. x 1-1/2" O.D.

$

$

Not available

9

Snapper 7029908

BELT, 36" Deck
(Superseded to 7029908YP)

Note: Was 38624 (Manual Blade)

$56.99

$

Usually ships in 2-12 days

0

Snapper 7029908

BELT, 36" Deck
(Superseded to 7029908YP)

Note: Was 38624 (Electric Clutch)

$56.99

$

Usually ships in 2-12 days

0

10

Snapper 7027881

DECAL, Caution

$

$

Currently unavailable

11

Snapper 7022890

STUD, Hood
(Superseded to 7022890YP)

$18.99

$

Usually ships in 2-12 days

0

12

Snapper 7091299

NUT, 3/8 - 16 Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

13

Snapper 7017033

KEY, 1/4 x 1/4 x 2 1/2"
(Superseded to 7017033YP)

$5.49

$

In Stock, only 4 left!

0

14

Snapper 7052457

ASSEMBLY, Cutter Housing
(Superseded to 7052457YP)

Note: (Manual Blade)

$569.99

$

Usually ships in 2-12 days

0

Snapper 7052369

ASSEMBLY, Cutter Housing

Note: (Electric Clutch)

$

$

Currently unavailable

15

Snapper 7026931

DECK WELDMENT, 36"

$

$

Currently unavailable

16

Snapper 7024124

ROD, Chute Pivot
(Superseded to 7024124YP)

$13.99

$

Usually ships in 2-12 days

0

17

Snapper 7041321

DEFLECTOR, 36" Chute
(Superseded to 7041321YP)

$153.99

$

Usually ships in 2-12 days

0

18

Snapper 7091313

COTTER PIN, 3/32 x 1"
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 1 left!

0

19

Snapper 7090188

WASHER, 5/16 SAE Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

20

Snapper 7024125

SPRING, Chute
(Superseded to 7027950YP)

$

$

Not available

21

Snapper 7022522

DECAL, Caution
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0

22

Snapper 7013010

DECAL, Warning
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0
