PMH 7361 (80572) - Snapper 36" Pro Mower Deck Assembly Blade Brake 36" Deck (Manual Blade) Parts Diagram

36" Pro Mower Deck Assembly

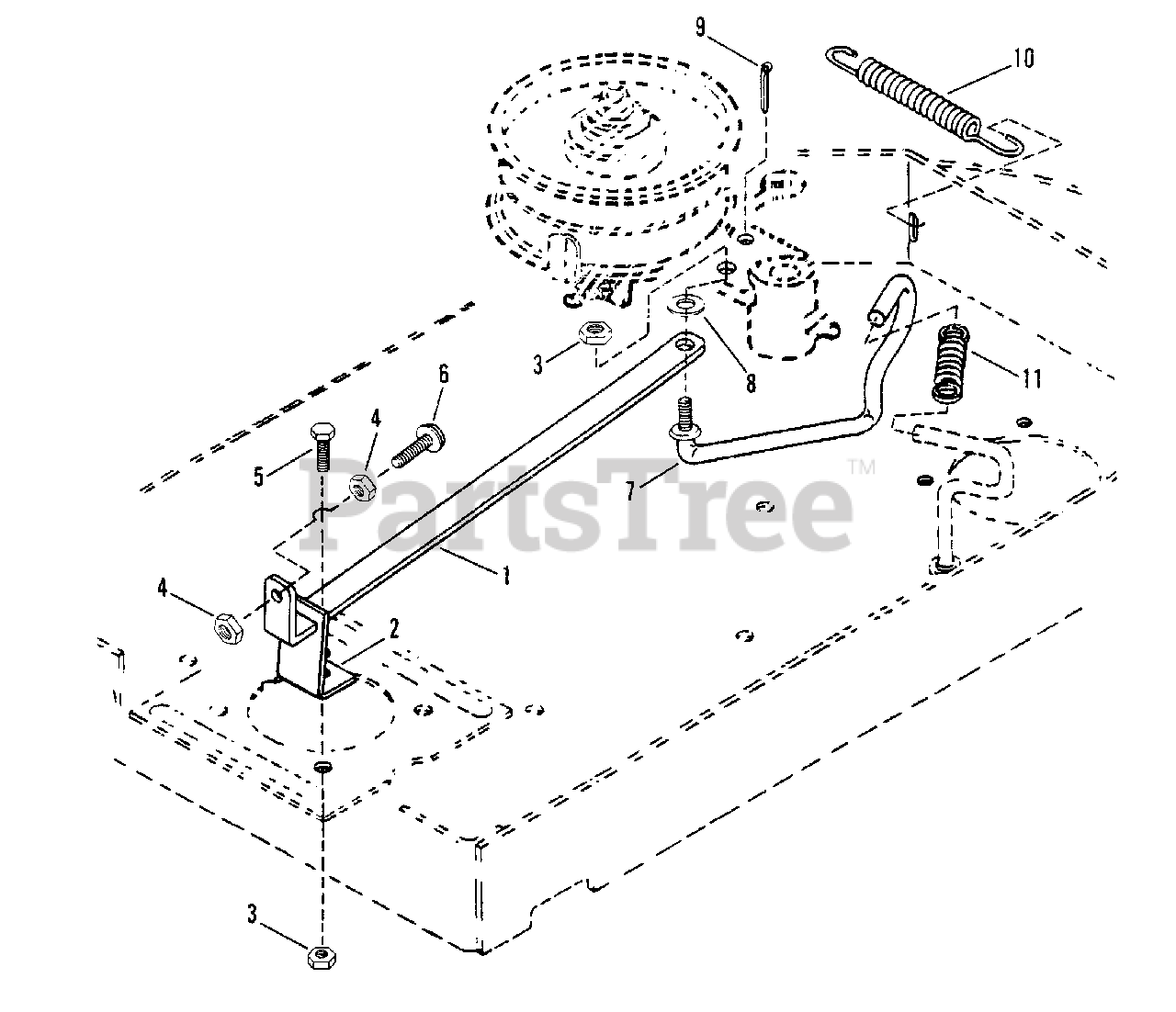

Blade Brake 36" Deck (Manual Blade) Parts Diagram

  • Title

1

Snapper 7033453

ARM, Brake, 36" Deck
(Superseded to 7033453YP)

$18.99

$

Usually ships in 2-12 days

0

2

Snapper 7033452

BRACKET, Brake Arm
(Superseded to 7033452YP)

$7.99

$

Usually ships in 2-12 days

0

3

Snapper 7091299

NUT, 3/8 Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

4

Snapper 7090197

NUT, 5/16 Hex Jam
(Superseded to 7090197YP)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7091497

SCREW, 3/8 - 16 x 1 1/2"
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, only 1 left!

0

6

Snapper 7091928

BOLT, 5/16 - 18 x 1 1/4" Carriage
(Superseded to 703446)

Note: Was 90978

$4.49

$

In Stock, Qty 5

0

7

Snapper 7033454

GUIDE, Brake Belt
(Superseded to 7033454YP)

$41.99

$

Usually ships in 2-12 days

0

8

Snapper 7017855

WASHER, 3/8 Wave

$

$

Currently unavailable

9

Snapper 7090357

COTTER PIN, 3/16 x 3/4"
(Superseded to 7090357YP)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7022433

SPRING, Idler Return
(Superseded to 7022433YP)

$9.49

$

Usually ships in 2-12 days

0

11

Snapper 7016158

SPRING, Traction
(Superseded to 7016158YP)

$

$

Not available
