PMA 7482 (80368) - Snapper 48" Pro Mower Deck Assembly Blade Deck Idler Assembly Parts Diagram

48" Pro Mower Deck Assembly

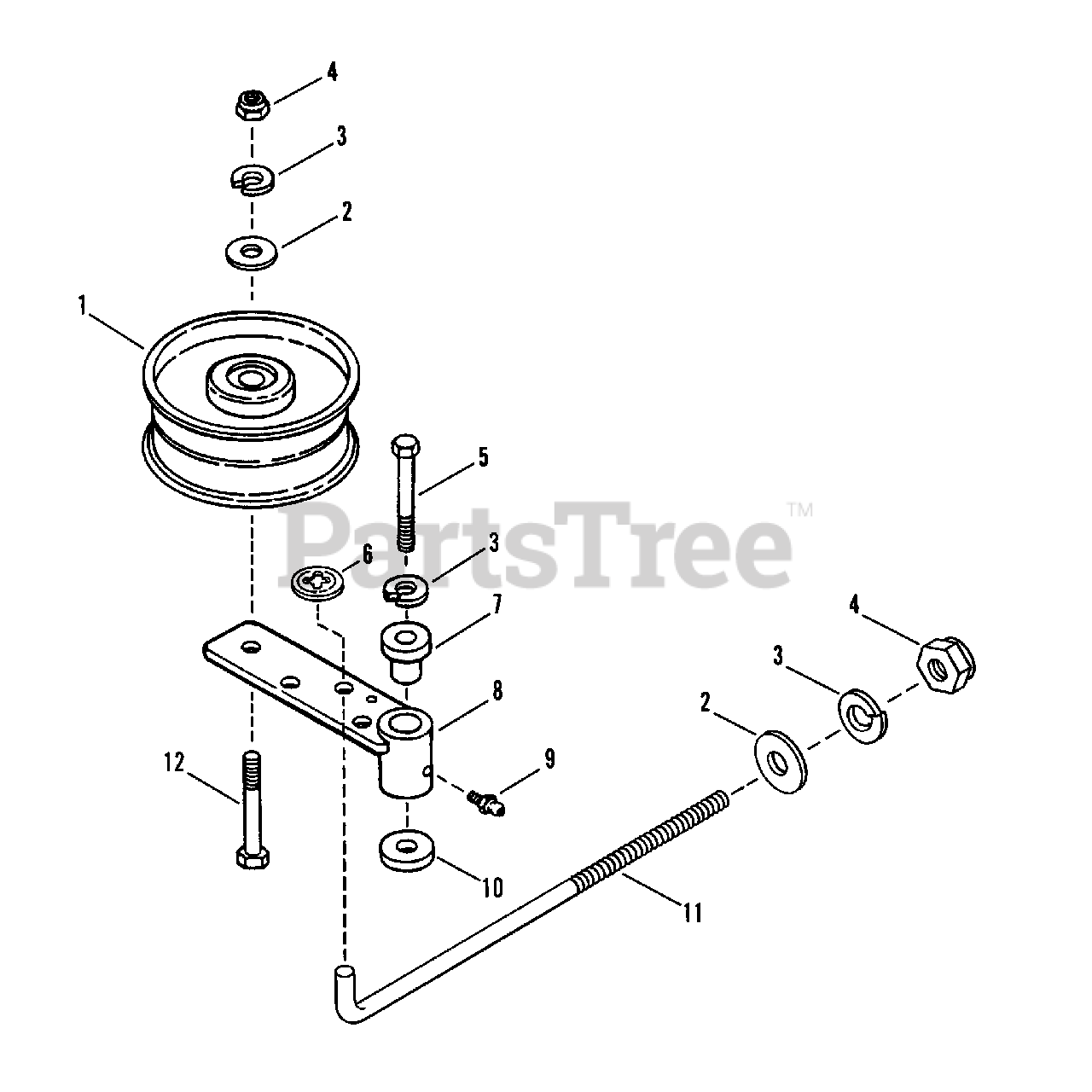

Blade Deck Idler Assembly Parts Diagram

  • Title
1

Snapper 7024761

PULLEY, Idler, 5.25
(Superseded to 7024761YP)

$76.99

$

Usually ships in 2-12 days

0

2

Snapper 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

4

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7090590

BOLT, 3/8-16 x 3" Hex Head Cap, Grade 5
(Superseded to 7090590YP)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7013946

RETAINER, 3/8"
(Superseded to 7013946YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7016173

SPACER, Pivot
(Superseded to 7016173YP)

$6.99

$

Usually ships in 2-12 days

0

8

Snapper 7041009

WELDMENT. 48" Blade/Blade Deck Idler
(Superseded to 7041009YP)

$111.99

$

Usually ships in 2-12 days

0

9

Snapper 7076998

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

10

Snapper 7016561

BUSHING
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 7

0

11

Snapper 7017161

ROD, 11.25"
(Superseded to 7017161YP)

$32.99

$

Usually ships in 2-12 days

0

12

Snapper 7091111

SCREW, 3/8-16 x 1 3/4" Hex Head Cap, Grade 8

$

$

Not available
