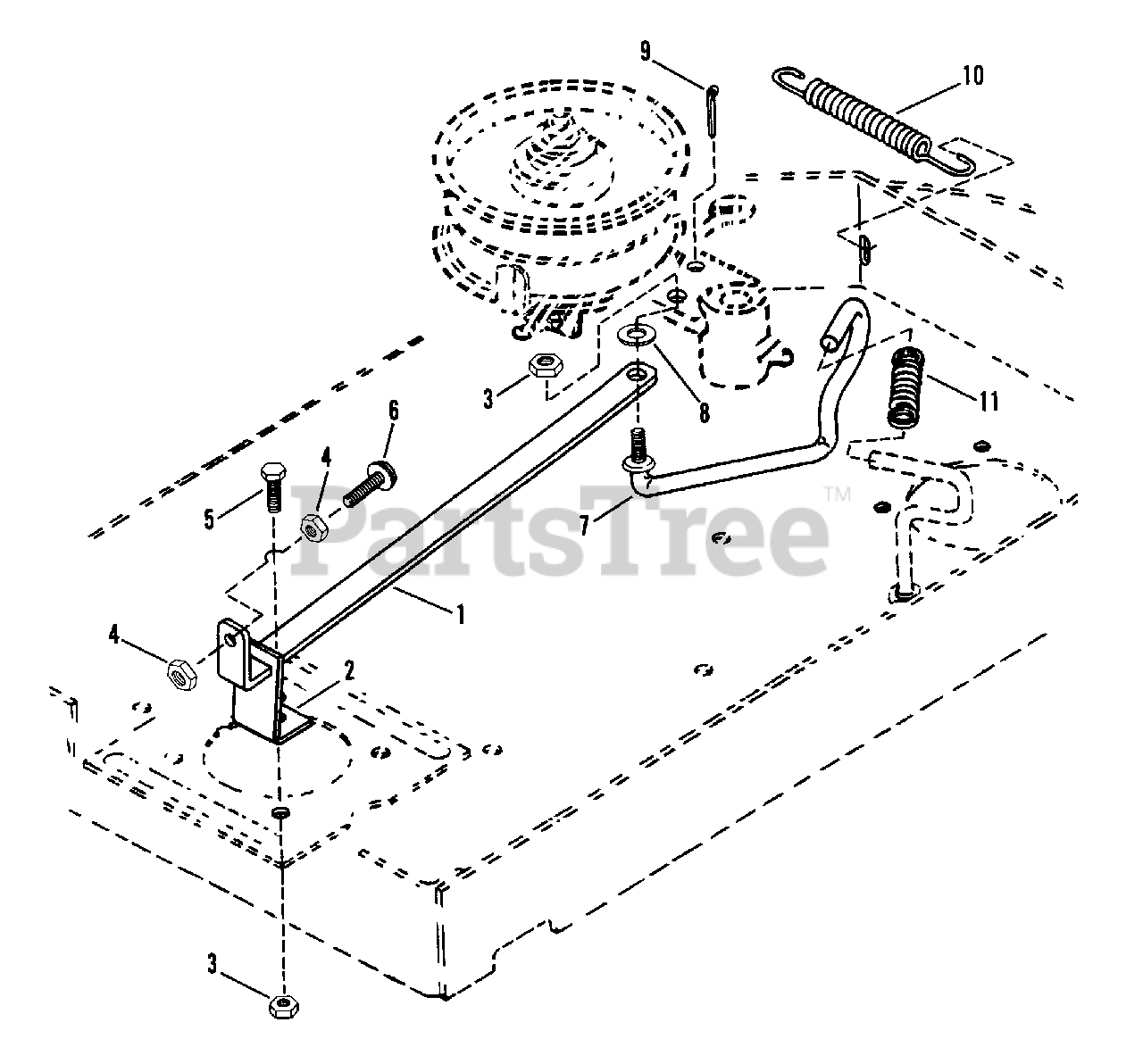

PMA 7362 (7080367) - Snapper 36" Pro Mower Deck Assembly Blade Brake (Part 1) Parts Diagram

36" Pro Mower Deck Assembly

Blade Brake (Part 1) Parts Diagram

  • Title
1

Snapper Pro 7033453

ARM, Brake, 36" Deck
(Superseded to 7033453YP)

$18.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7033452

BRACKET, Brake Arm
(Superseded to 7033452YP)

$7.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

4

Snapper Pro 7090197

NUT, 5/16-18 Hex Jam
(Superseded to 7090197YP)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 7091497

SCREW, 3/8-16 x 1 1/2" Hex Head Cap

Note: Was 90655

$

$

Not available

6

Snapper Pro 7091928

BOLT, 5/16-18 x 1 1/4" Carriage, Grade 2
(Superseded to 703446)

Note: Was 90978

$4.49

$

In Stock, Qty 5

0

7

Snapper Pro 7033454

GUIDE, Brake Belt
(Superseded to 7033454YP)

$41.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7017855

WASHER, 3/8 Wave

$

$

Currently unavailable

9

Snapper Pro 7090357

COTTER-PIN, 3/16 x 3/4"
(Superseded to 7090357YP)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 7022433

SPRING, Idler Return

$9.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 7016158

SPRING, Traction
(Superseded to 7016158YP)

$

$

Not available
