PLT 3400 (UT-15090-F) - Homelite String Trimmer Ignition - Rotor - Clutch For Models (PLT3400, PBC3600) Parts Diagram

String Trimmer

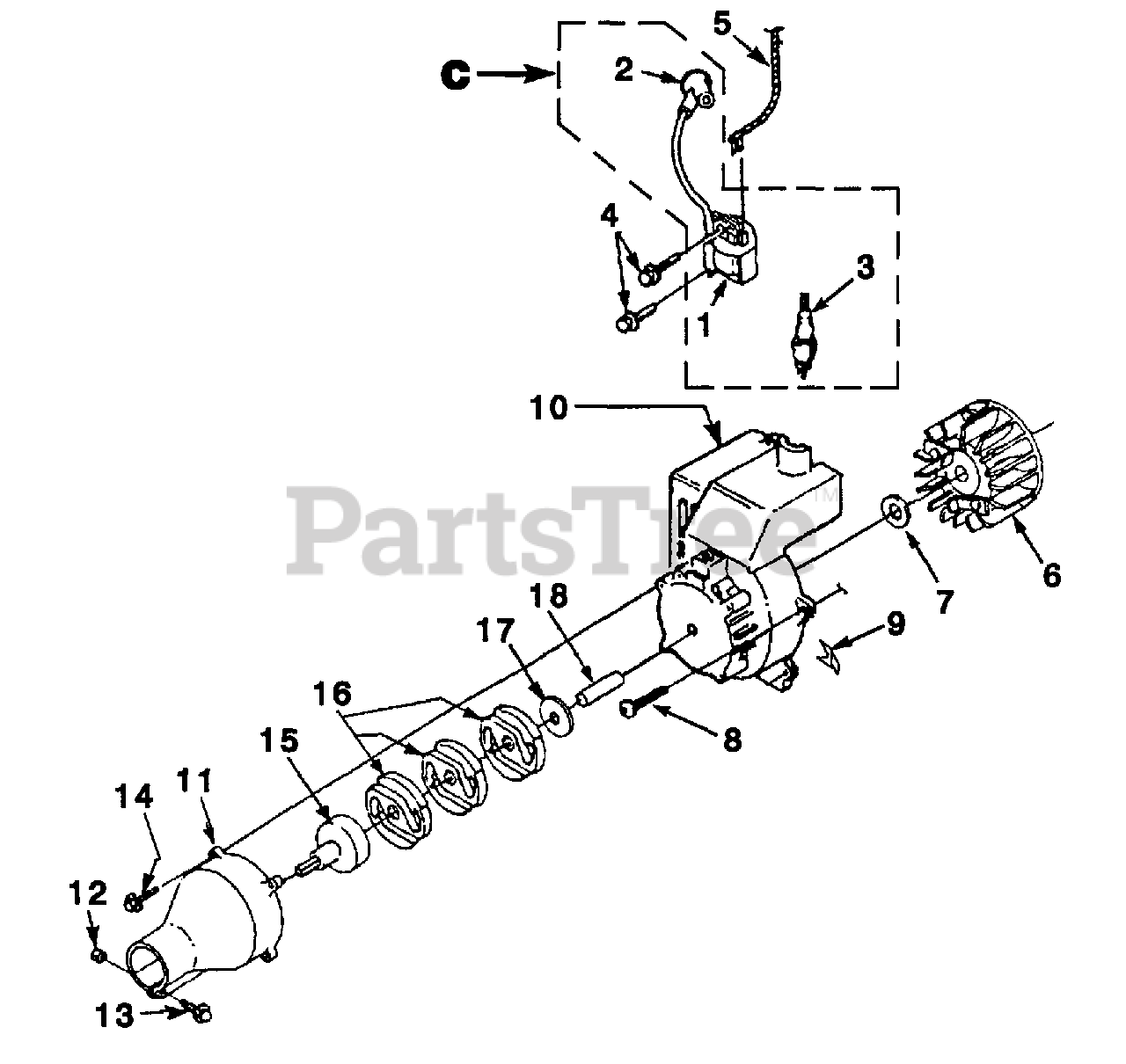

Ignition - Rotor - Clutch For Models (PLT3400, PBC3600) Parts Diagram

  • Title

C

Homelite A04446

IGNITION KIT
(Superseded to 984873001)

Note: For models (PLT3400, PBC3600)

$

$

Not available

1

Homelite 94711CS

MODULE-Ignition

$

$

Not available

2

Homelite A33055

TERMINAL & COVER

$

$

Not available

3

Homelite D96169C

SPARK PLUG (DJ-7Y)
(Superseded to UP03883)

Note: Torque Specs: 120-180 In/Lbs; 13.6-20.3 Nm

$3.49

$

In Stock, only 3 left!

0

4

Homelite 82540

SCREW-Thread Form. (8-32 X 1")

Note: Torque Specs: 30-40 In/Lbs; 3.4-4.5 Nm

$2.49

$

Usually ships in 3-7 days

0

5

Homelite A00681

LEAD-Electrical

$

$

Not available

6

Homelite A04158S

ROTOR & STARTER PAWL
(Superseded to UP03856A)

$

$

Not available

7

Homelite 95479A

WASHER-Flat

$

$

Not available

8

Homelite 82538

SCREW-Thread Form. (10-24 X 3/4")

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 02851

TAB-Male

$

$

Not available

10

Homelite A08295

HOUSING-Engine w/Decals

$

$

Not available

11

Homelite A02396A

TUBE ADAPTOR KIT

$

$

Currently unavailable

12

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

13

Homelite 96624

SCREW-Sems Hex Hd. (10-24 X 1 1/4")

$

$

Not available

14

Homelite 88052

SCREW-Sems Hex Hd. (10-24 X 7/8")

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm

$4.99

$

Usually ships in 3-7 days

0

15

Homelite A04655

DRUM & CONNECTOR

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Currently unavailable

16

Homelite 00242

CLUTCH

Note: Torque Specs: 90-110 In/Lbs; 10.1-12.4 Nm

$

$

Not available

17

Homelite 98929A

WASHER-Clutch
(Superseded to 638090001)

$1.99

$

In Stock, only 4 left!

0

18

Homelite 035661

SPACER
(Superseded to PS035661)

$5.49

$

Usually ships in 3-7 days

0
