PLT 3400 (UT-15090-F) - Homelite String Trimmer Handle-Throttle-Drveshaft-Gearhd-Strnghd-Dflector-Blade-Harness (Part 1) Parts Diagram

String Trimmer

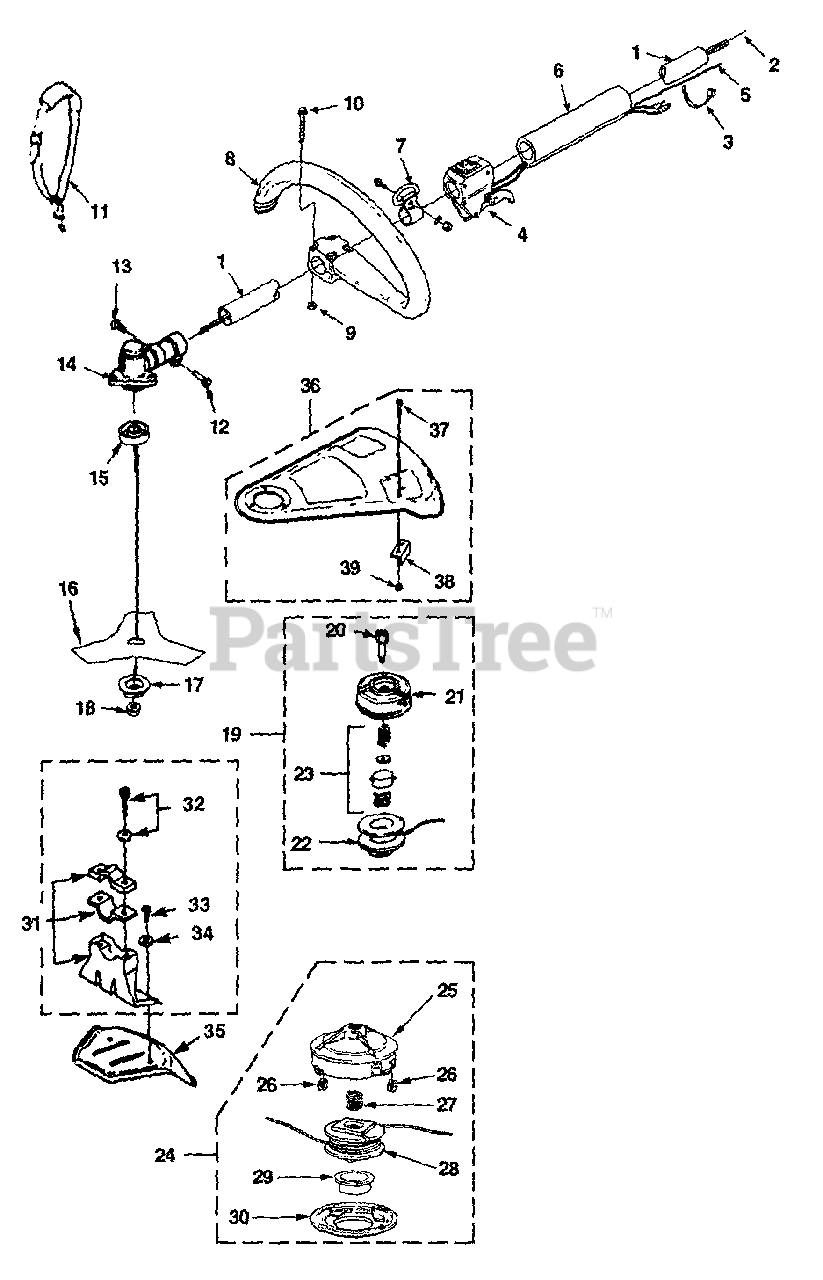

Handle-Throttle-Drveshaft-Gearhd-Strnghd-Dflector-Blade-Harness (Part 1) Parts Diagram

  • Title

1

Homelite A03800A

HOUSING-Driveshaft
(Superseded to UP04489)

Note: For model (PBC3600)

$

$

Currently unavailable

1

Homelite A08210

HOUSING-with Driveshaft
(Superseded to UP08116)

Note: For model (PLT3400)

$

$

Not available

2

Homelite 04641

DRIVESHAFT

Note: For model (PBC3600)

$

$

Not available

2

Homelite 98838

DRIVESHAFT

Note: For model (PLT3400)

$

$

Not available

3

Homelite PS46840

TIE-Cable

$

$

Currently unavailable

4

Homelite 06275

THROTTLE & SWITCH

Note: For model (PBC3600)

$

$

Not available

4

Homelite A08423B

THROTTLE & SWITCH
(Superseded to 06275)

Note: For model (PLT3400)

$

$

Not available

5

Homelite 0254206

THROTTLE CABLE
(Superseded to UP07203)

$10.99

$

Usually ships in 3-7 days

0

6

Homelite 03234A

HIP PAD

$

$

Not available

7

Homelite 07255

HANGER

$

$

Not available

8

Homelite A07137A

HANDLE-Front

$

$

Not available

9

Homelite 81208

NUT (10-24)

$

$

Not available

10

Homelite 82605

SCREW

Note: Torque Specs: 30-40 In/Lbs; 3.4-4.5 Nm

$

$

Not available

11

Homelite DA92703C

STRAP
(Superseded to A00980)

$11.99

$

In Stock, only 1 left!

0

12

Homelite 82586

SCREW-Cap Socket Hd (1/4-20 X 7/8")

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$4.99

$

Usually ships in 3-7 days

0

13

Homelite 88049

SCREW-Sems Hex Hd (10-24 X 1/2")

Note: Torque Specs: 35-45 In/Lbs; 4.0-5.1 Nm

$

$

Not available

14

Homelite A04151

GEAR HEAD
(Superseded to UP06866A)

$111.99

$

Usually ships in 3-7 days

0

15

Homelite 041681A

WASHER-Flanged
(Superseded to 04168A)

$10.99

$

Usually ships in 3-7 days

0

16

Homelite 08297

BLADE-Tri-Arc

$

$

Currently unavailable

17

Homelite 04409

WASHER-Flange (Lower)

$3.99

$

In Stock, only 1 left!

0

18

Homelite 04277

NUT-Lock
(Superseded to 678018001)

$

$

Not available

19

Homelite DA023331

STRING HEAD

Note: For model (PBC3600 UT15089F)

$

$

Not available

20

Homelite 03709

BOLT, Shaft

$

$

Not available

21

Homelite 02341

HOUSING w/Eyelets

$

$

Not available

22

Homelite 02355

SPOOL & STRING

$

$

Not available

23

Homelite A02342

REPAIR KIT

$

$

Not available

24

Homelite A07247

STRING HEAD

$

$

Currently unavailable

25

Homelite 07248

HOUSING, String

$

$

Not available

26

Homelite 04141

EYELET

$

$

Not available

27

Homelite 02351

SPRING

$

$

Not available

28

Homelite 07251

SPOOL W/String

$

$

Not available

29

Homelite 07252

BUTTON
(Superseded to UP06664)

$

$

Not available

30

Homelite 07253

COVER

$

$

Not available

31

Homelite A03404

DEFLECTOR BRACKET KIT

$

$

Not available

32

Homelite 03998

SCREW & WASHER
(Superseded to UP03998)

$

$

Not available

33

Homelite 04003

SCREW-Machine (6M)

$

$

Not available

34

Homelite 04004

WASHER-Flat

$

$

Not available

35

Homelite 03155

BLADE GUARD

$

$

Not available

36

Homelite A04683A

DEFLECTOR-Grass

$

$

Not available

37

Homelite 80869

SCREW-Mach Hex Hd. (10-24 x 3/8")

$

$

Not available

38

Homelite 07128

BLADE-Cut-Off

$

$

Not available

39

Homelite 81208

NUT-(10-24)

$

$

Not available
