PLT 2248 - Paramount String Trimmer ENGINE & SHROUD Parts Diagram

String Trimmer

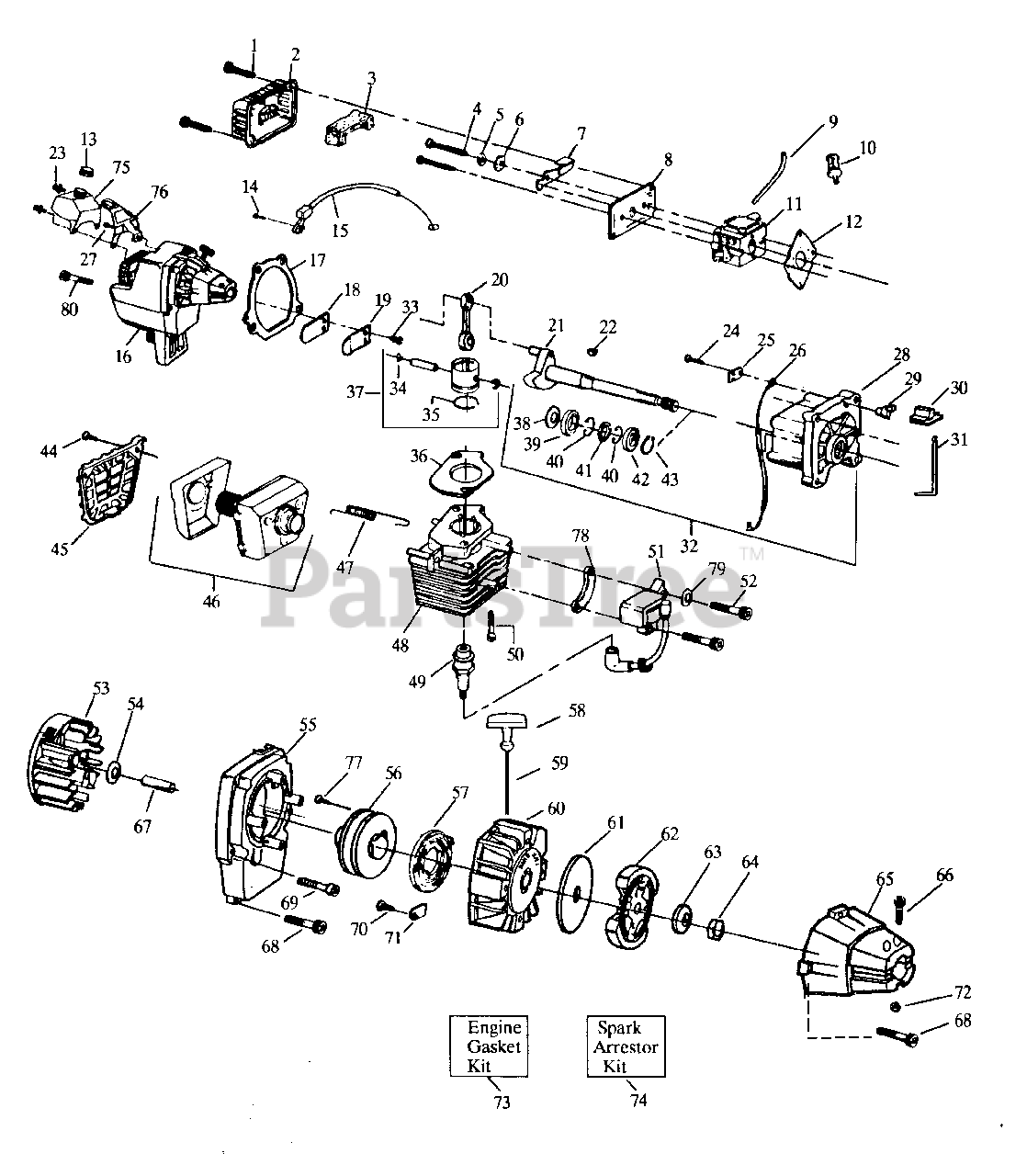

ENGINE & SHROUD Parts Diagram

  • Title

1

Poulan 530015773

Screw

$3.99

$

In Stock, only 2 left!

0

2

Poulan 530027529

Air Filter Cover

$

$

Not available

3

Poulan 530027530

Air Filter

$6.49

$

In Stock, Qty 11

0

4

Poulan 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

5

Poulan 530027528

Spacer
(Superseded to 530015852)

$3.49

$

In Stock, only 1 left!

0

6

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

7

Poulan 530027526

Choke Shutter

$1.99

$

Usually ships in 3-10 days

0

8

Poulan 530027527

Air Filter Plate

$2.99

$

Usually ships in 3-10 days

0

9

Poulan 530069247

Fuel Line

$7.99

$

In Stock, Qty 20+

0

10

Poulan 530010897

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 16

0

11

Poulan 530035259

Carburetor
(Superseded to 545081825)

$66.99

$

Usually ships in 3-10 days

0

12

Poulan 530019156

Carburetor Gasket

$8.99

$

In Stock, only 2 left!

0

13

Poulan 530010729

Fuel Cap Ass'y.
(Superseded to 530014347)

$9.49

$

In Stock, Qty 15

0

14

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

15

Poulan 530027549

Throttle Cable Ass'y.
(Superseded to 530037497)

$

$

Not available

16

Poulan 530036819

Shroud

$

$

Not available

17

Poulan 530019154

Crankcase/Shroud Gasket

$3.99

$

In Stock, only 1 left!

0

18

Poulan 530027593

Reed

$6.49

$

In Stock, only 2 left!

0

19

Poulan 530027594

Reed Stop

$5.99

$

Usually ships in 3-10 days

0

20

Poulan 530014005

Connecting Rod Ass'y. (Inc. Bearings)

$

$

Not available

21

Poulan 530010934

Crankshaft Ass'y.

$34.99

$

Usually ships in 3-10 days

0

22

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530015843

Screw

$6.49

$

Usually ships in 3-10 days

0

24

Poulan 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

25

Poulan 530027546

Switch Insulator

$4.99

$

Usually ships in 3-10 days

0

26

Poulan 530027547

Lead Wire

$

$

Not available

27

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

28

Poulan 530014016

Crankcase Ass'y. (Inc. #39-42)

$

$

Not available

29

Poulan 530027545

Switch Ramp

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530027958

Switch Button
(Superseded to 530038309)

$4.99

$

In Stock, Qty 8

0

31

Poulan 530027959

Switch Spring

$

$

Not available

32

Poulan 530014015

Crankcase & Crankshaft Ass'y (Inc. 21,28,38, 43)
(Superseded to 530071705)

$37.99

$

Usually ships in 3-10 days

0

33

Poulan 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 530015162

Piston Pin Retainer

$6.49

$

In Stock, only 1 left!

0

35

Poulan 530026413

Piston Ring

$

$

Not available

36

Poulan 530019178

Cylinder Gasket
(Superseded to 530019267)

$4.99

$

In Stock, only 4 left!

0

37

Poulan 530069274

Piston Kit (Inc.34,35, & pin)

$

$

Not available

38

Poulan 530015788

Spacer

$0.99

$

Usually ships in 3-10 days

0

39

Poulan 530032103

Inner Bearing

$

$

Not available

40

Poulan 530015787

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530019158

Crankshaft Seal

$6.49

$

Usually ships in 3-10 days

0

42

Poulan 530032102

Outer Bearing

$

$

Not available

43

Poulan 530015789

Crankshaft Retaining Ring

$4.99

$

Usually ships in 3-10 days

0

44

Poulan 530015717

Screw

$3.99

$

Usually ships in 3-10 days

0

45

Poulan 530027781

Muffler Guard

$3.99

$

Usually ships in 3-10 days

0

46

Poulan 530069257

Muffler Kit
(Superseded to 530069310)

$

$

Not available

47

Poulan 530024903

Muffler Attachment Spring
(Superseded to 530036409)

$

$

Not available

48

Poulan 530012244

Cylinder
(Superseded to 530069627)

$

$

Not available

49

Poulan 530030077

Spark Plug

$

$

Not available

50

Poulan 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

51

Poulan 530039134

Ignition Module Kit

$

$

Not available

52

Poulan 530015776

Screw

$0.99

$

Usually ships in 3-10 days

0

53

Poulan 530039136

Flywheel Ass'y.
(Superseded to 530039189)

$

$

Not available

54

Poulan 530347987

Washer
(Superseded to 530016030)

$3.99

$

Usually ships in 3-10 days

0

55

Poulan 530027946

Fan Housing

$14.99

$

Usually ships in 3-10 days

0

56

Poulan 530069291

Starter Pulley
(Superseded to 530071387)

$

$

Not available

57

Poulan 530029395

Starter Spring
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

58

Poulan 530027569

Starter Handle

$6.49

$

Usually ships in 3-10 days

0

59

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 17

0

60

Poulan 530014022

Pulley Housing Ass'y.

$

$

Not available

61

Poulan 530094189

Clutch Washer

$6.99

$

In Stock, only 1 left!

0

62

Poulan 530069254

Clutch Ass'y. Kit

$

$

Not available

63

Poulan 530015796

Washer

$3.99

$

Usually ships in 3-10 days

0

64

Poulan 530001733

Nut

$

$

Not available

65

Poulan 530014023

Clutch Housing

$

$

Not available

66

Poulan 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

67

Poulan 530027511

Spacer

$8.99

$

Usually ships in 3-10 days

0

68

Poulan 530015770

Screw

$

$

Not available

69

Poulan 530015769

Screw

$3.99

$

Usually ships in 3-10 days

0

70

Poulan 530015496

Screw

$3.99

$

Usually ships in 3-10 days

0

71

Poulan 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

72

Poulan 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0

73

Poulan 530069276

Engine Gasket Kit

$

$

Not available

74

Poulan 952701612

Spark Arrestor Kit

$

$

Not available

75

Poulan 530014176

Fuel Tank Ass'y.

$16.99

$

Usually ships in 3-10 days

0

76

Poulan 530029370

Fuel Tank Mtg. Bracket

$9.99

$

Usually ships in 3-10 days

0

77

Poulan 530015823

Screw (Inc. in Starter Pulley Kit)
(Superseded to 530016080)

$6.49

$

Usually ships in 3-10 days

0

78

Poulan 530027525

Spacer

$0.99

$

In Stock, only 1 left!

0

79

Poulan 530015811

Washer

$

$

Not available

80

Poulan 530015771

Screw

$6.49

$

In Stock, Qty 6

0

Poulan 530014052

Carton Contents Bag

Note: Not Shown.

$

$

Not available

Poulan 530061553

Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available

Poulan 530036849

Starting Instruction Decal

Note: Not Shown.

$

$

Not available
