PLT 2145 - Paramount String Trimmer CUTTING HEAD & DRIVE SHAFT ASSEMBLIES Parts Diagram

String Trimmer

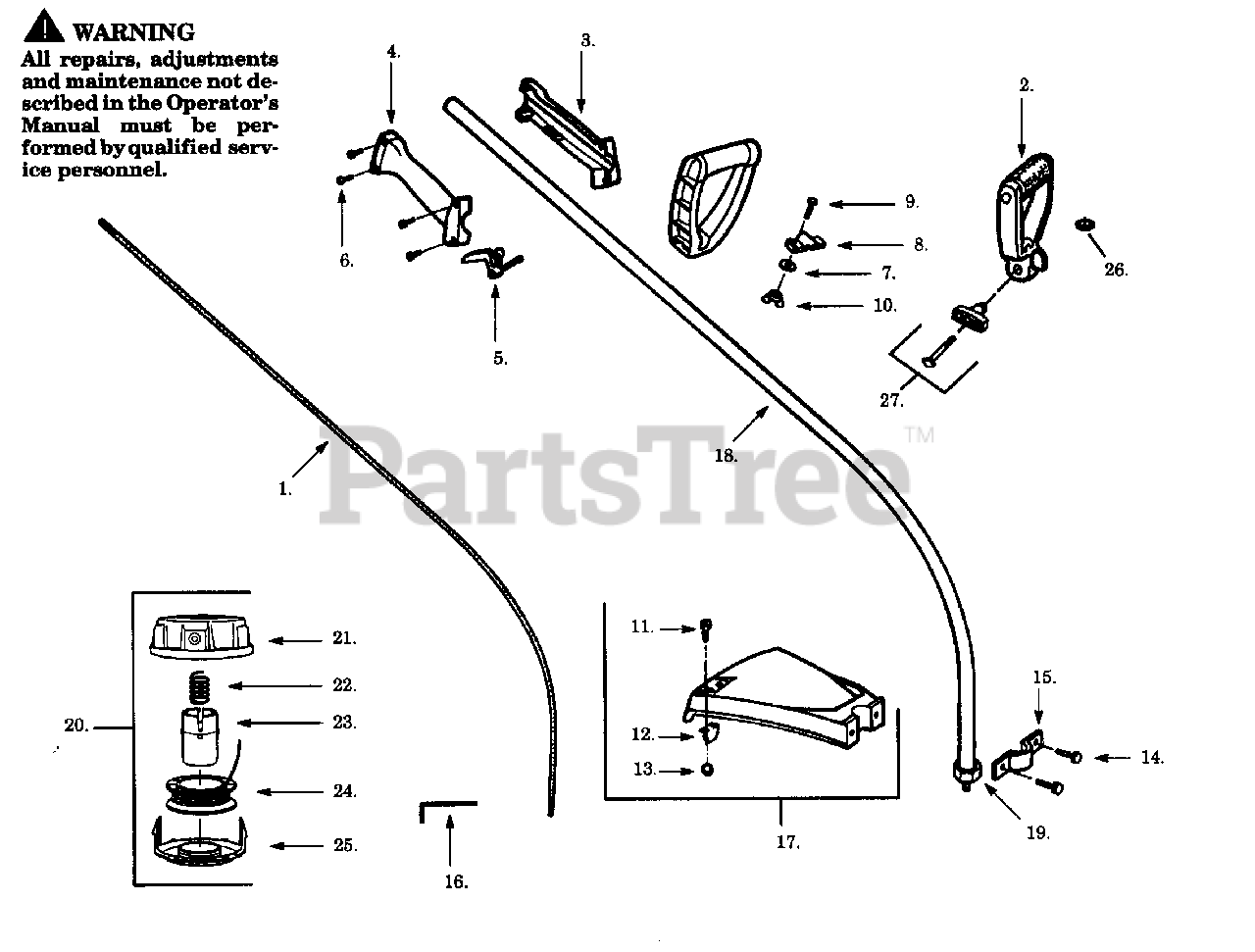

CUTTING HEAD & DRIVE SHAFT ASSEMBLIES Parts Diagram

  • Title
1

Poulan 530094671

Drive Shaft

$31.99

$

Usually ships in 3-10 days

0

2

$

$

Not available

3

Poulan 530036514

Throttle Hsg. (Left)

$

$

Not available

4

Poulan 530036515

Throttle Hsg. (Right)

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530036556

Throttle Lever

$3.99

$

In Stock, only 1 left!

0

$2.49

$

Usually ships in 3-10 days

0

7

$3.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 1 left!

0

$2.49

$

In Stock, only 1 left!

0

11

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 530094570

Line Limiter

$5.99

$

In Stock, only 2 left!

0

13

Poulan 534235901

Locknut
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 530092243

Screw
(Superseded to 530016107)

$3.99

$

In Stock, Qty 11

0

15

Poulan 530029373

Bracket Shield

$0.99

$

Usually ships in 3-10 days

0

16

Poulan 530031111

Hex Wrench (5/32)
(Superseded to 530031159)

$4.99

$

In Stock, only 1 left!

0

17

Poulan 530069299

Shield Kit Ass'y.

$

$

Not available

18

Poulan 530094874

Drive Shaft Hsg.

$

$

Not available

19

Poulan 530094543

Dust Cup

$

$

Not available

20

Poulan 952701618

Cutting Head Ass'y. (Inc. 21-25)
(Superseded to 952715542)

$

$

Not available

21

Poulan 530094875

Hub Ass'y.

$

$

Not available

22

$3.99

$

In Stock, Qty 20+

0

23

Poulan 530094827

Release Button

$

$

Not available

24

Poulan 952701619

Spool w/Line

$

$

Not available

25

$

$

Not available

$6.49

$

In Stock, only 4 left!

0

27

Poulan 530069252

"T" Handle Ass'y.
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

Poulan 530014612

Carton Contents Bag

Note: Not Shown.

$

$

Not available

Poulan 530081996

Operator Manual

Note: Not Shown.

$

$

Not available

Poulan 530029159

Shaft Warning Decal

Note: Not Shown.

$

$

Not available

Poulan 530061543

Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available
