PLT 2145 - Paramount String Trimmer CARBURETOR BREAKDOWN Parts Diagram

String Trimmer

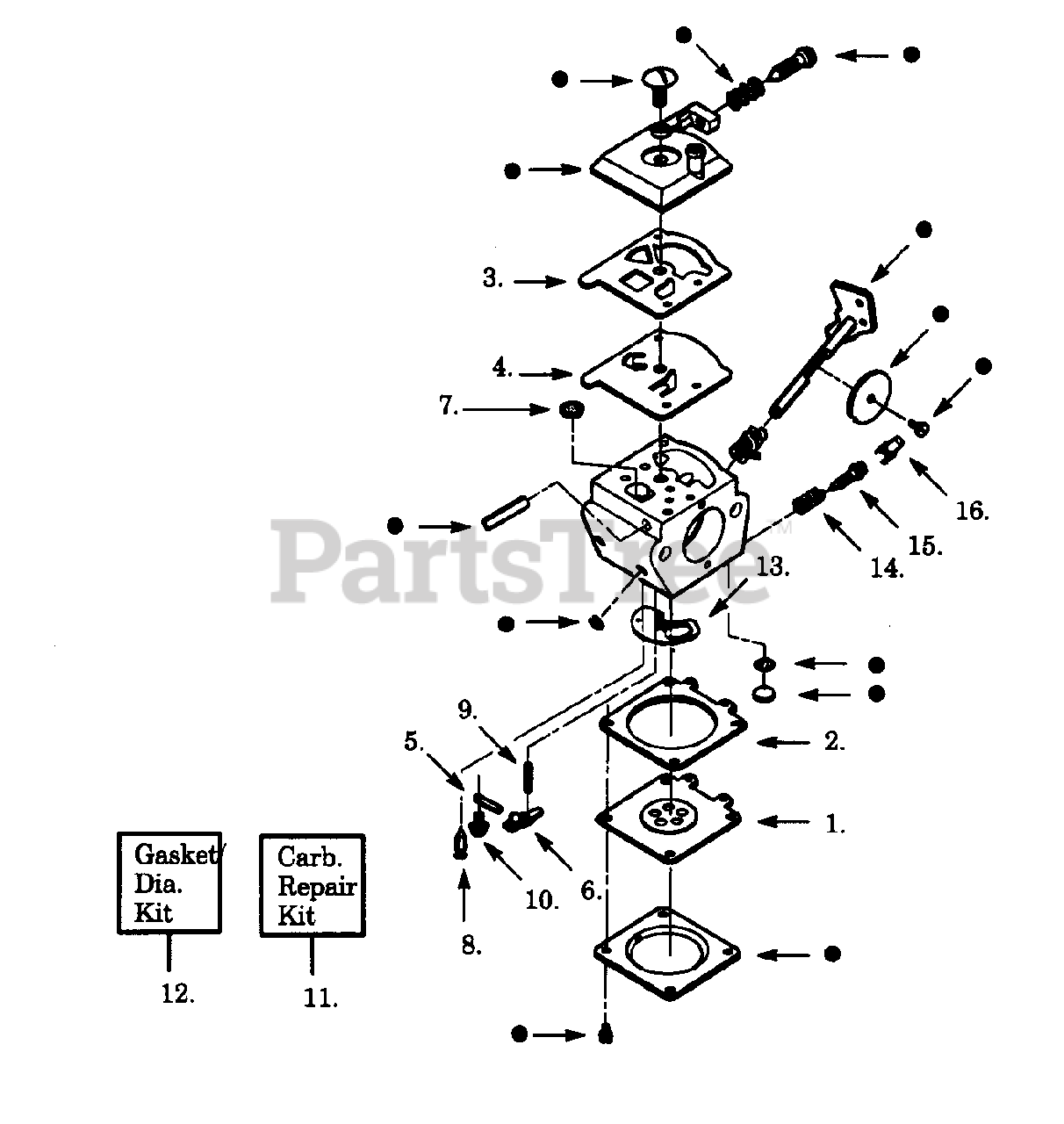

CARBURETOR BREAKDOWN Parts Diagram

  • Title

Note: Parts indicated by a . in illustration are, for clarity only order complete ass'y.

$

$

Not available

1

Poulan 530035014

Metering Diaphragm
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

2

Poulan 530035001

Metering Diaphragm Gasket
(Superseded to 530035011)

$

$

Not available

3

Poulan 530035164

Pump Gasket
(Superseded to 504130906)

$11.99

$

In Stock, only 3 left!

0

4

Poulan 530035166

Pump Diaphragm
(Superseded to 504130807)

$31.99

$

In Stock, Qty 6

0

5

Poulan 530035028

Metering Lever Pin
(Superseded to 505520125)

$7.99

$

In Stock, only 3 left!

0

6

Poulan 530035031

Metering Lever
(Superseded to 505520127)

$5.99

$

Usually ships in 3-10 days

0

7

Poulan 530035178

Fuel Inlet Screen

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530035106

Inlet Needle Valve
(Superseded to 503117001)

$22.99

$

In Stock, Qty 8

0

9

Poulan 530037330

Metering Lever Spring

$

$

Not available

10

Poulan 530035016

Metering Lever Pin Screw

$7.99

$

In Stock, Qty 6

0

11

Poulan 530069460

Carburetor Repair Kit
(Superseded to 530069902)

$

$

Not available

12

Poulan 530069461

Gasket/Diaphragm Kit
(Superseded to 531004519)

$12.99

$

In Stock, only 1 left!

0

13

Poulan 530035211

Circuit Plate Gasket

$

$

Not available

14

Poulan 530035342

Spring-Idle Needle-Type II

$4.99

$

In Stock, Qty 5

0

15

Poulan 530035341

Idle Needle-Type II

$

$

Not available

16

Poulan 530035337

Limiter Cap-Type II

$

$

Not available
