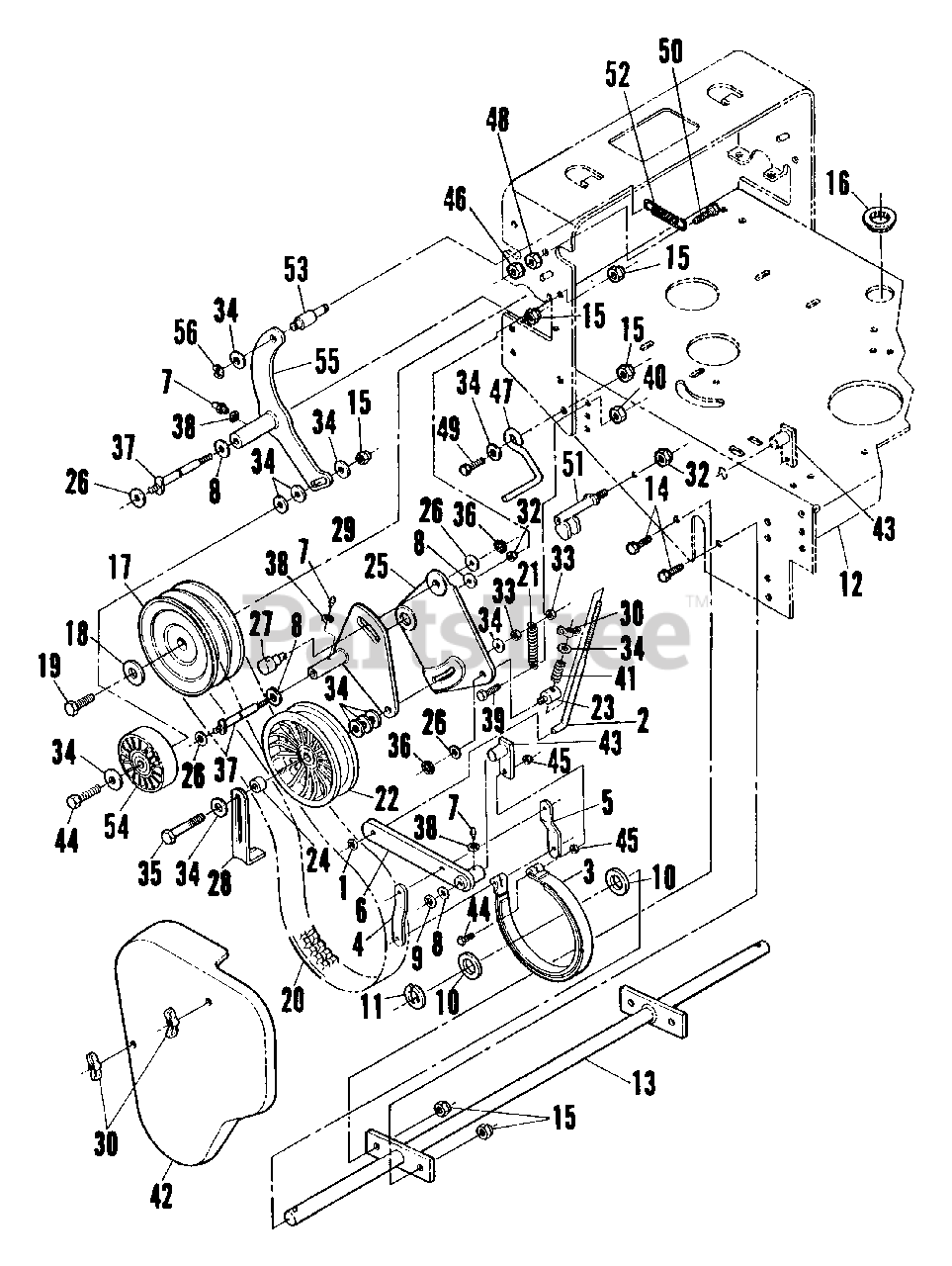

PL 8180KE (80341) - Snapper Walk-Behind Mower, 18hp Rear Deck, Brake, Traction & Reverse Arm Assemblies - 36, 48, 52 And 61 Parts Diagram

Walk-Behind Mower, 18hp

Rear Deck, Brake, Traction & Reverse Arm Assemblies - 36, 48, 52 And 61 Parts Diagram

  • Title

1

Snapper 7013946

WHEEL, Retainer, 3/8"
(Superseded to 7013946YP)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 7016886

ROD, Brake

$

$

Not available

3

Snapper 7074810

BAND, Brake, 6"
(Superseded to 7074810YP)

Note: Was 17048

$64.99

$

Usually ships in 2-12 days

0

4

Snapper 7032903

PLATE, Brake Link
(Superseded to 7032903YP)

$11.99

$

In Stock, only 1 left!

0

5

Snapper 7040622

LINK, Brake
(Superseded to 7040622YP)

$50.99

$

In Stock, only 1 left!

0

6

Snapper 7040634

LEVER, Brake, R.H.
(Superseded to 7040634YP)

$103.99

$

Usually ships in 2-12 days

0

Snapper 7040633

LEVER, Brake, L.H.

Note: (Not Shown)

$

$

Not available

7

Snapper 7076998

FITTING, Grease, 1/4-28 Straight
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

8

Snapper 7091043

BUSHING, Machinery, 5/8"
(Superseded to 7091043YP)

$3.49

$

In Stock, only 4 left!

0

9

Snapper 7091040

RETAINER, 5/8" Bolt
(Superseded to 7091040YP)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7016561

BUSHING, Machinery, 1"
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 5

0

11

Snapper 7012730

RING, 1" External Retaining
(Superseded to 7012730YP)

$3.99

$

In Stock, only 2 left!

0

12

Snapper 7040616

WELDMENT, Rear Deck

Note: (For Reference Only)

$

$

Not available

13

Snapper 7047952

WELDMENT, Axle
(Superseded to 7047952YP)

$153.99

$

Usually ships in 2-12 days

0

14

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

15

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

16

Snapper 7077882

SNAP BUSHING

$

$

Not available

17

Snapper 7019146

PULLEY, Output

$

$

Not available

18

Snapper 7012063

WASHER, 3/8" Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

19

Snapper 77748

SCREW, 3/8-24 x 3/4" Hex Head Cap, Grade 5

$

$

Currently unavailable

20

Snapper 7017053

BELT, Traction
(Superseded to 7017053YP)

$80.99

$

In Stock, only 2 left!

0

Snapper 7051967

ARM, Traction Assembly, R.H.

Note: (Incl. Items 21 thru 35)

$

$

Currently unavailable

21

Snapper 7016158

SPRING, Traction
(Superseded to 7016158YP)

$

$

Not available

22

Snapper 7034422

PULLEY, Idler
(Superseded to 7034422SM)

Note: Was 24239

$38.99

$

In Stock, Qty 20+

0

23

Snapper 7017780

SWIVEL, Brake Link
(Superseded to 7017780YP)

$11.99

$

Usually ships in 2-12 days

0

24

Snapper 7022083

SPACER, Guide

$

$

Currently unavailable

25

Snapper 7023652

ARM, Idler Bracket, R.H.
(Superseded to 7023652YP)

$35.99

$

Usually ships in 2-12 days

0

Snapper 7019177

ARM, Idler Bracket, L.H.
(Superseded to 7019177YP)

Note: (Not Shown)

$35.99

$

Usually ships in 2-12 days

0

26

Snapper 7090692

WASHER, 5/16" Flat
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper 7017781

SWIVEL, Traction

$

$

Currently unavailable

28

Snapper 7032868

GUIDE, Belt Forward

$

$

Not available

29

Snapper 40619

ARM, Traction, R.H.

$

$

Currently unavailable

Snapper 7040618

ARM, Traction, L.H.

Note: (Not Shown)

$

$

Not available

30

Snapper 7091049

WING NUT, 3/8-16 Nyloc
(Superseded to 7091049SM)

$5.49

$

In Stock, only 2 left!

0

?31

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

32

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

33

Snapper 7090499

NUT, 3/8-16 Hex Top Lock
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

34

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

35

Snapper 7091119

SCREW, 3/8-16 x 3-1/2" Hex Head Cap, Grade 5

$

$

Currently unavailable

36

Snapper 7016459

RETAINER, Ring

$

$

Not available

37

Snapper 7023664

STUD, Fender Mt.

$

$

Not available

38

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 6

0

39

Snapper 7014664

SHOULDER BOLT, 5/16-18
(Superseded to 7014664SM)

Note: Was 16562

$1.99

$

Usually ships in 2-12 days

0

40

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

41

Snapper 7017108

SPRING, Bracket Link

$

$

Not available

42

Snapper 7016164

FENDER, R.H.
(Superseded to 7016164YP)

$19.99

$

Usually ships in 2-12 days

0

Snapper 7016165

FENDER, L.H.
(Superseded to 7016165YP)

Note: (Not Shown)

$27.99

$

Usually ships in 2-12 days

0

43

Snapper 7040711

WELDMENT, Brake Stud

$

$

Not available

44

Snapper 7091305

BOLT, 3/8-16 x 2" Hex Head, Grade 5
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

In Stock, only 1 left!

0

45

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

46

Snapper 7090372

NUT, 1/4-20 Hex Center Lock, Grade B or 5
(Superseded to 703954)

$

$

Not available

47

Snapper 7019288

BELT GUIDE, Traction
(Superseded to 7019288YP)

$2.99

$

Usually ships in 2-12 days

0

48

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

49

Snapper 7091328

BOLT, 3/8-16 x 1-1/4" Hex, Grade 5
(Superseded to 703871)

Note: Was 90587

$4.99

$

Usually ships in 2-12 days

0

50

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap, Grade 5
(Superseded to 703820)

Note: Was 90548

$3.99

$

In Stock, only 4 left!

0

51

Snapper 7040627

SCRAPER, Wheel
(Superseded to 7040627YP)

$42.99

$

Usually ships in 2-12 days

0

52

Snapper 7077250

SPRING
(Superseded to 7077250YP)

$15.99

$

Usually ships in 2-12 days

0

53

Snapper 7016170

SWIVEL, Reverse

$

$

Not available

54

Snapper 7019225

PULLEY, Idler
(Superseded to 7019225YP)

$38.99

$

Usually ships in 2-12 days

0

55

Snapper 7040621

ARM, Reverse, R.H.
(Superseded to 7040621YP)

$54.99

$

Usually ships in 2-12 days

0

Snapper 7040620

ARM, Reverse, L.H.
(Superseded to 7040620YP)

Note: (Not Shown)

$47.99

$

Usually ships in 2-12 days

0

56

Snapper 7090870

RING, 3/8" External Retaining

$

$

Not available
