PL 8180KE (80341) - Snapper Walk-Behind Mower, 18hp Fuel Tank Assembly Parts Diagram

Walk-Behind Mower, 18hp

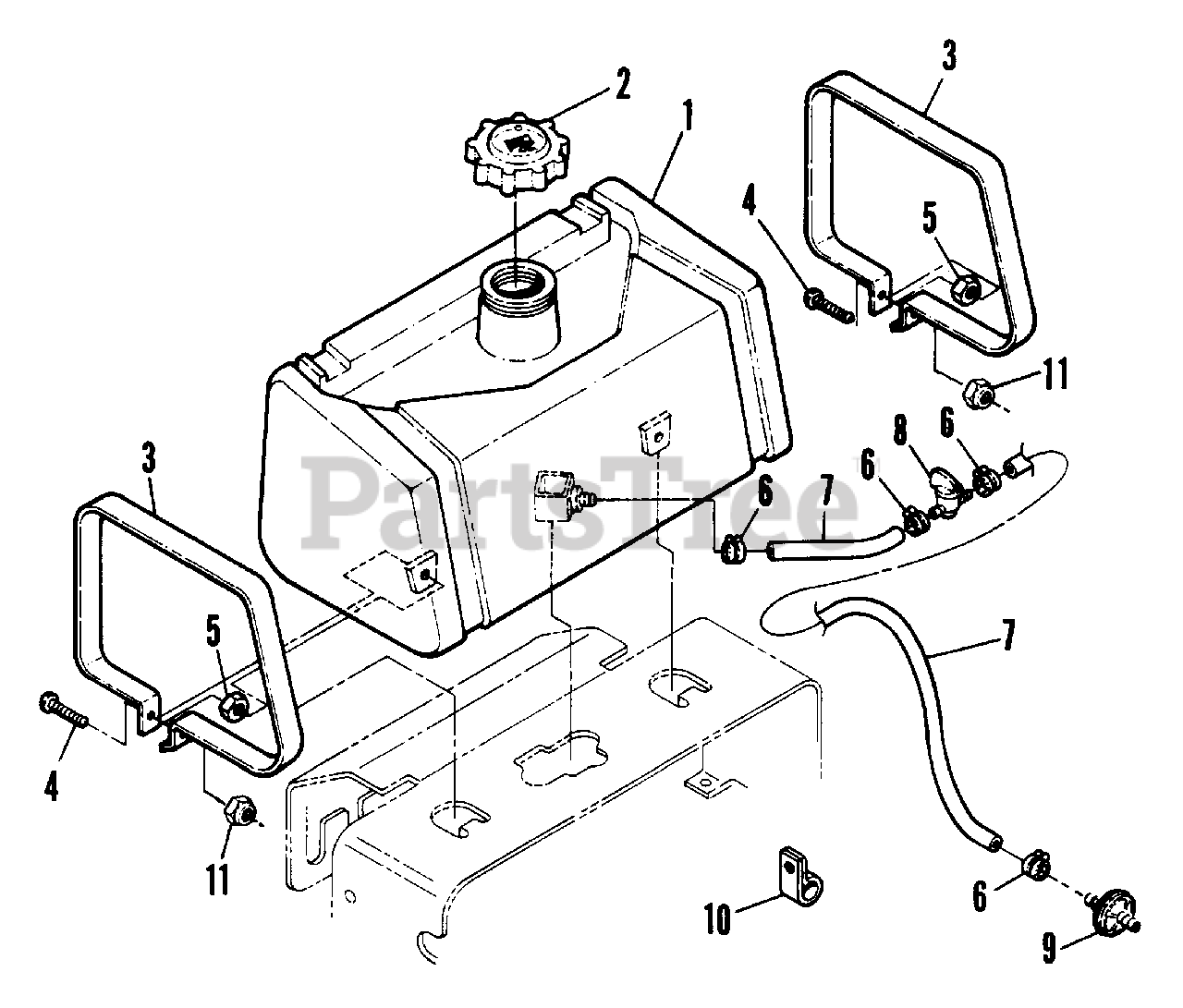

Fuel Tank Assembly Parts Diagram

  • Title

1

Snapper 7019186

TANK, Fuel
(Superseded to 7019186YP)

$

$

Not available

2

Snapper 7012515

GAS CAP
(Superseded to 7012515YP)

Note: Was 14363

$19.99

$

In Stock, only 3 left!

0

3

Snapper 7032875

STRAP, Tank
(Superseded to 7032875YP)

$63.99

$

Usually ships in 2-12 days

0

4

Snapper 7091052

SCREW, Machine Head Phillips, #10-24 x 2
(Superseded to 7091052YP)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 7091053

NUT, Keps #10-24
(Superseded to 7091053YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7029900

HOSE CLAMP
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7032956

FUEL LINE, 10" (18 HP)
(Superseded to 7032956YP)

$

$

Not available

Snapper 7077351

FUEL LINE, 3 1/2" (18 HP)
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

Snapper 7023479

FUEL LINE, 16" (18 HP)
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

Snapper 7032956

FUEL LINE, 10" (14 HP)
(Superseded to 7032956YP)

$

$

Not available

Snapper 7073240

FUEL LINE, 5" (14 HP)
(Superseded to 7073240SM)

Note: Was 32038

$24.99

$

Usually ships in 2-12 days

0

8

Snapper 7016325

FUEL SHUT-OFF VALVE
(Superseded to 7016325SM)

$19.99

$

In Stock, Qty 11

0

9

Snapper 7014359

FILTER, In-Line
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

10

Snapper 7014375

CLAMP

$

$

Currently unavailable

11

Snapper 7090594

NUT, #10- 24 Lock
(Superseded to 7090594YP)

$2.99

$

Usually ships in 2-12 days

0
