PL 8180KE (80341) - Snapper Walk-Behind Mower, 18hp Battery & Battery Mount Assembly Parts Diagram

Walk-Behind Mower, 18hp

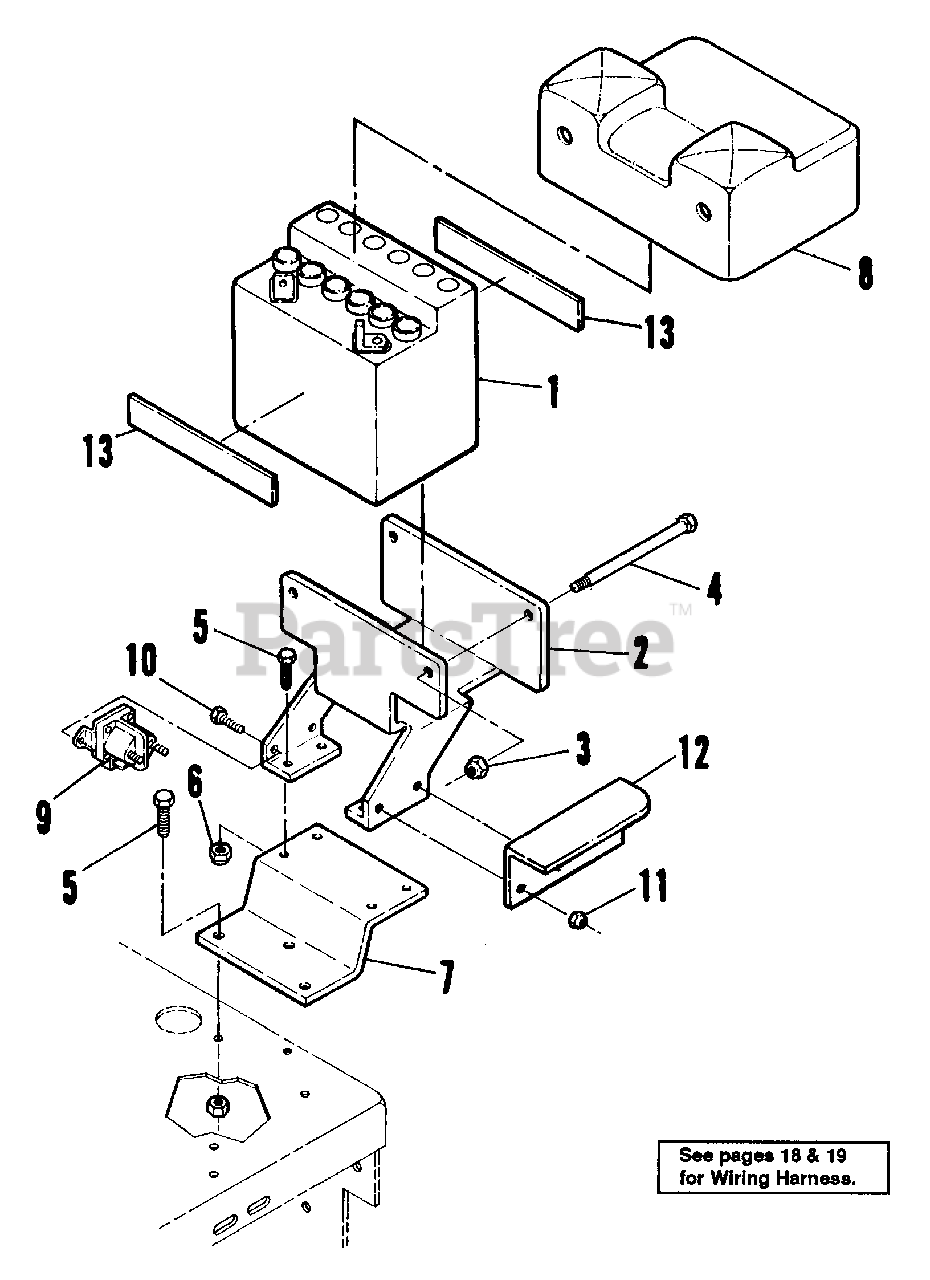

Battery & Battery Mount Assembly Parts Diagram

  • Title

1

Snapper 7013533

BATTERY, 12 Volt
(Superseded to 7060753YP)

$

$

Not available

2

Snapper 32964

BOX, Battery

$

$

Currently unavailable

3

Snapper 7076978

NUT, 1/4"-20 Hex Nylon Lock
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7091087

SCREW, 1/4"-20 x 5 3/4" Lg. Hex Head Cap

$

$

Currently unavailable

5

Snapper 7076934

SCREW, 5/16"-18 x 3/4" Lg.
(Superseded to 7076934YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7091298

NUT, 5/16"-18 Hex Lock
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

7

Snapper 32960

BRACKET, Battery Mount

$

$

Currently unavailable

8

Snapper 7017370

COVER, Battery

$

$

Not available

9

Snapper 7075622

SOLENOID, 12V LT
(Superseded to 1755382YP)

Note: Was 18604

$29.99

$

In Stock, Qty 20+

0

10

Snapper 7090072

SCREW, 1/4"-20 x 5/8" Lg. Hex Head Cap
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

11

Snapper 7091584

NUT, 1/4"-20 Hex Nylon Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0

12

Snapper 32965

SHIELD, Heat (18 HP Kohler)

$

$

Currently unavailable

13

Snapper 7016496

STRIP, Rubber

$

$

Currently unavailable
