PL 8140KVE (80340) - Snapper Walk-Behind Mower, 14hp Rear Deck, Transmission & Transmission Shift Assemblies - 36, 48, 52 and 61 Parts Diagram

Walk-Behind Mower, 14hp

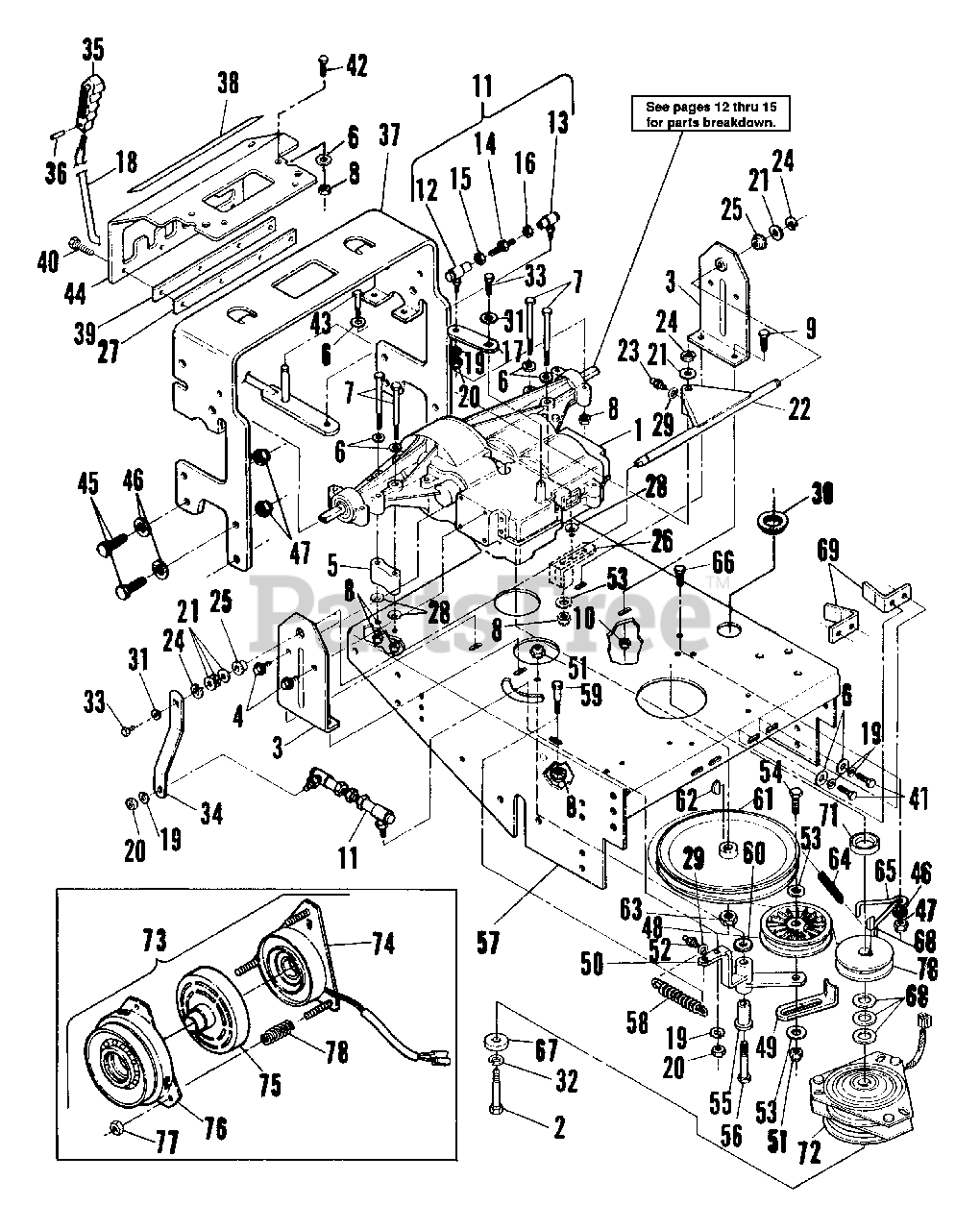

Rear Deck, Transmission & Transmission Shift Assemblies - 36, 48, 52 and 61 Parts Diagram

  • Title

1

Snapper 7017049

TRANSMISSION

$

$

Currently unavailable

2

Snapper 7091029

SCREW, M10-1.5 x 55 Hex Head Cap
(Superseded to 7091029YP)

$4.99

$

Usually ships in 2-12 days

0

Snapper 7091028

SCREW, 7/16-20 x 2-1/4" Hex Head Cap, Grade 5
(Superseded to 7091028YP)

$

$

Not available

3

Snapper 7019187

MOUNT, Shift Pivot

$

$

Currently unavailable

4

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

5

Snapper 19147

SPACER, Transmission

$

$

Currently unavailable

6

Snapper 7090692

WASHER, 5/16" Flat
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 90145

SCREW, 5/16-18 x 5" Hex Head Cap, Grade 5

$

$

Currently unavailable

8

Snapper 7091298

NUT, 5/16-18 Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, Grade 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

10

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7057587

ASSEMBLY, Linkage
(Superseded to 7057587YP)

Note: (Incl. Items 12 thru 16)

$38.99

$

Usually ships in 2-12 days

0

12

Snapper 16319

BALL JOINT, 5/16" F,R.H.

$

$

Currently unavailable

13

Snapper 7057587

BALL JOINT, 5/16" F,L.H.
(Superseded to 7057587YP)

Note: Was 16320

$38.99

$

Usually ships in 2-12 days

0

14

Snapper 16321

TURNBUCKLE, 5/16" F

$

$

Currently unavailable

15

Snapper 7092031

NUT, 5/16-24 Hex Jam
(Superseded to 7092031SM)

Note: Was 77697

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7091073

NUT, 5/16-24 Hex Jam L.H.

$

$

Currently unavailable

17

Snapper 7023789

ARM, Transmission Shift

$

$

Not available

18

Snapper 7040624

HANDLE, Shift
(Superseded to 7040624YP)

$76.99

$

Usually ships in 2-12 days

0

19

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7091030

BUSHING, Machinery, 1/2"
(Superseded to 7091030YP)

$2.99

$

Usually ships in 2-12 days

0

22

Snapper 7040626

PIVOT, Transmission Shift
(Superseded to 7040626YP)

$66.99

$

Usually ships in 2-12 days

0

23

Snapper 7076998

FITTING, 1/4-28 Straight, Grease
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

24

Snapper 7014341

RING, External Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

25

Snapper 7011016

BEARING, Nylon
(Superseded to 7011016YP)

$4.49

$

In Stock, only 1 left!

0

26

Snapper 7032874

BELT GUIDE
(Superseded to 7032874YP)

$7.99

$

Usually ships in 2-12 days

0

27

Snapper 7017765

STRIP, Rubber
(Superseded to 7017765YP)

$4.49

$

Usually ships in 2-12 days

0

28

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

30

Snapper 7077882

BUSHING, Snap

$

$

Not available

31

Snapper 7091102

WASHER, 1/4" Bellville

$

$

Currently unavailable

32

Snapper 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

Note: Was 90247

$4.49

$

In Stock, Qty 20+

0

33

Snapper 7090100

SCREW, 1/4-28 x 5/8" Hex Head Cap, Grade 5
(Superseded to 7090100YP)

$5.99

$

Usually ships in 2-12 days

0

34

Snapper 7038452

ARM, Clutch

$

$

Currently unavailable

35

Snapper 7019376

BALL, Knob
(Superseded to 7019376YP)

$6.49

$

Usually ships in 2-12 days

0

36

Snapper 7090844

PIN, 3/16" x 3/4" Roll
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0

37

Snapper 7016985

BRACKET, Tank
(Superseded to 7016985YP)

$119.99

$

Usually ships in 2-12 days

0

38

Snapper 7016183

DECAL, Shift

$

$

Currently unavailable

39

Snapper 7017765

STRIP, Quadrant
(Superseded to 7017765YP)

Note: Was 16296

$4.49

$

Usually ships in 2-12 days

0

40

Snapper 7090896

SCREW, #10-24 x 1/2" Hex Washer Self-Tap
(Superseded to 7090896YP)

Note: Was 90853

$3.49

$

In Stock, only 3 left!

0

41

Snapper 7076934

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 5
(Superseded to 7076934YP)

$3.49

$

Usually ships in 2-12 days

0

42

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, Grade 5
(Superseded to 703800)

Note: Was 90383

$3.99

$

In Stock, Qty 7

0

43

Snapper 7091046

SCREW, 5/16-18 x 2-1/2" Hex Head Cap, Grade 5
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

44

Snapper 7016986

QUADRANT, Shift
(Superseded to 7016986YP)

$72.99

$

Usually ships in 2-12 days

0

45

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

46

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

47

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

Snapper 7051972

IDLER, Transmission Asy

Note: (Incl. Items 48 thru 54)

$

$

Currently unavailable

48

Snapper 7016157

PULLEY, Idler
(Superseded to 7016157YP)

$34.99

$

Usually ships in 2-12 days

0

49

Snapper 7032868

BELT GUIDE, Idler

$

$

Not available

50

Snapper 40625

IDLER, Transmission

$

$

Currently unavailable

51

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

52

Snapper 7076998

FITTING, 1/4" Straight Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

53

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

54

Snapper 7091305

BOLT, 3/8-16 x 2" Hex Head, Grade 5
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

In Stock, only 1 left!

0

55

Snapper 7017163

SPACER, Pivot

$

$

Currently unavailable

56

Snapper 7091044

SCREW, 3/8-16 x 3-1/4" Hex Head Cap, Grade 5

$

$

Not available

57

Snapper 7040616

DECK, Rear

$

$

Not available

58

Snapper 7016159

SPRING, Transmission

$

$

Not available

59

Snapper 7014664

BOLT, 5/16-18 Shoulder
(Superseded to 7014664SM)

Note: Was 16562

$1.99

$

Usually ships in 2-12 days

0

60

Snapper 7016561

BUSHING, Machinery, 1"
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 7

0

61

Snapper 7019164

PULLEY, Transmission

$

$

Not available

62

Snapper 7015894

KEY, Woodruff, #61/605
(Superseded to 7015894SM)

Note: Was 76992

$3.49

$

In Stock, Qty 7

0

63

Snapper 7090356

NUT, 5/8-18 Hex Center Lock Jam
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

64

Snapper 7019132

BELT, Transmission
(Superseded to 7019132YP)

$34.99

$

Usually ships in 2-12 days

0

65

Snapper 7031964

BELT GUIDE

$

$

Not available

66

Snapper 7090603

TAP BOLT, 3/8-16 x 7/8"

$2.99

$

In Stock, only 1 left!

0

67

Snapper 7016147

SPACER, LT 16
(Superseded to 7091807SM)

$2.99

$

Usually ships in 2-12 days

0

68

Snapper 7019188

KEY, 1/4" Square
(Superseded to 7019188YP)

$3.99

$

Usually ships in 2-12 days

0

69

Snapper 7032873

STOP, Clutch

$

$

Not available

?70

Snapper 7019148

PULLEY, Engine/Transmission

$

$

Not available

71

Snapper 7017782

SPACER, Clutch
(Superseded to 7017782YP)

$3.49

$

Usually ships in 2-12 days

0

72

Snapper 7017063

CLUTCH, Electric
(Superseded to 7017063YP)

$359.99

$

Usually ships in 2-12 days

0

73

Snapper 7017063

KIT, Electric Clutch
(Superseded to 7017063YP)

Note: (Incl. Items 74 thru 78)

$359.99

$

Usually ships in 2-12 days

0

74

Snapper 7014947

FIELD COIL

Note: Was 16254 (Includes ball Bearing)

$

$

Not available

75

Snapper 7016255

ROTOR

$

$

Not available

76

Snapper 7016256

ASSEMBLY, Arm-Pulley

Note: (Includes Ball Bearing)

$

$

Not available

77

Snapper 7090854

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

78

Snapper 7014950

COIL SPRING
(Superseded to 7014950YP)

$6.99

$

Usually ships in 2-12 days

0
