PL 7H141KV (80485) - Snapper Walk-Behind Mower, 14hp Electrical Components - Loop Handle & Pistol Grip Handle Parts Diagram

Walk-Behind Mower, 14hp

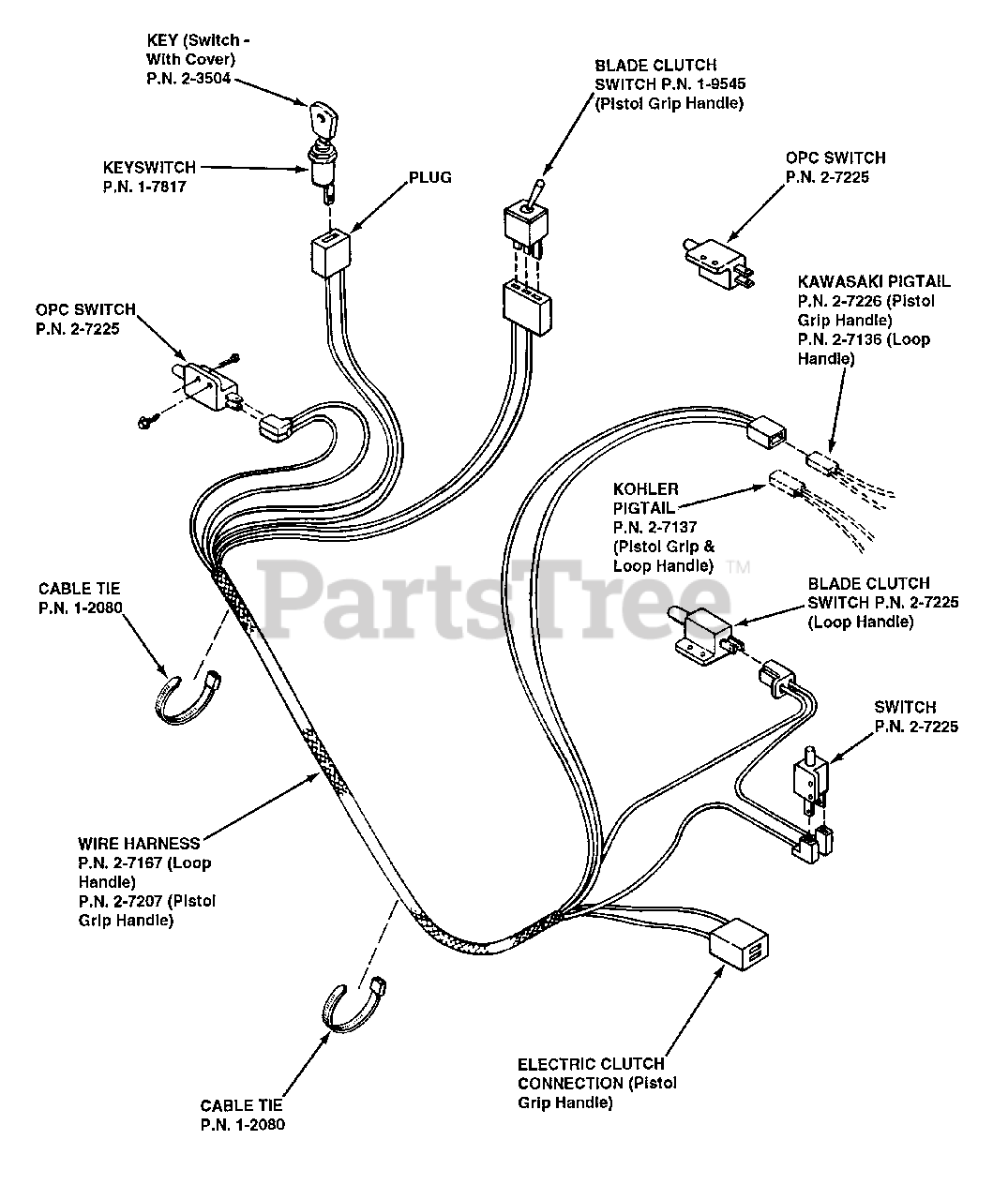

Electrical Components - Loop Handle & Pistol Grip Handle Parts Diagram

  • Title
23504

Snapper 7073406

KEY, Switch (With Cover)
(Superseded to 1717163SM)

Note: Was 23504

$8.99

$

In Stock, Qty 20+

0

17817

Snapper 7017817

KEYSWITCH
(Superseded to 7017817YP)

$31.99

$

In Stock, only 1 left!

0

27225

Snapper 7027225

OPC SWITCH
(Superseded to 7027225YP)

$

$

Not available

12080

Snapper 7012080

CABLE TIE
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

27167

Snapper 27167

WIRE HARNESS

Note: (Loop Handle)

$

$

Currently unavailable

27207

Snapper 7027207

WIRE HARNESS

Note: (Pistol Grip Handle)

$

$

Not available

12080

Snapper 7012080

CABLE TIE
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

ELECTRIC CLUTCH CONNECTION

Note: (Pistol Grip Handle)

$

$

Not available

27225

Snapper 7027225

SWITCH
(Superseded to 7027225YP)

$

$

Not available

27225

Snapper 7027225

BLADE CLUTCH SWITCH
(Superseded to 7027225YP)

Note: (Loop Handle)

$

$

Not available

27137

Snapper 7027137

KOHLER PIGTAIL

Note: (Pistol Grip & Loop Handle)

$

$

Currently unavailable

27226

Snapper 7027226

KAWASAKI PIGTAIL
(Superseded to 7027226YP)

Note: (Pistol Grip Handle)

$

$

Not available

27136

Snapper 7027136

KAWASAKI PIGTAIL

Note: (Loop Handle)

$

$

Not available

19545

Snapper 7019545

BLADE CLUTCH SWITCH
(Superseded to 7019545YP)

Note: (Pistol Grip Handle)

$44.99

$

Usually ships in 2-12 days

0
