PL 7H140KV (80485) - Snapper Walk-Behind Mower, 14hp Rear Deck Assembly Parts Diagram

Walk-Behind Mower, 14hp

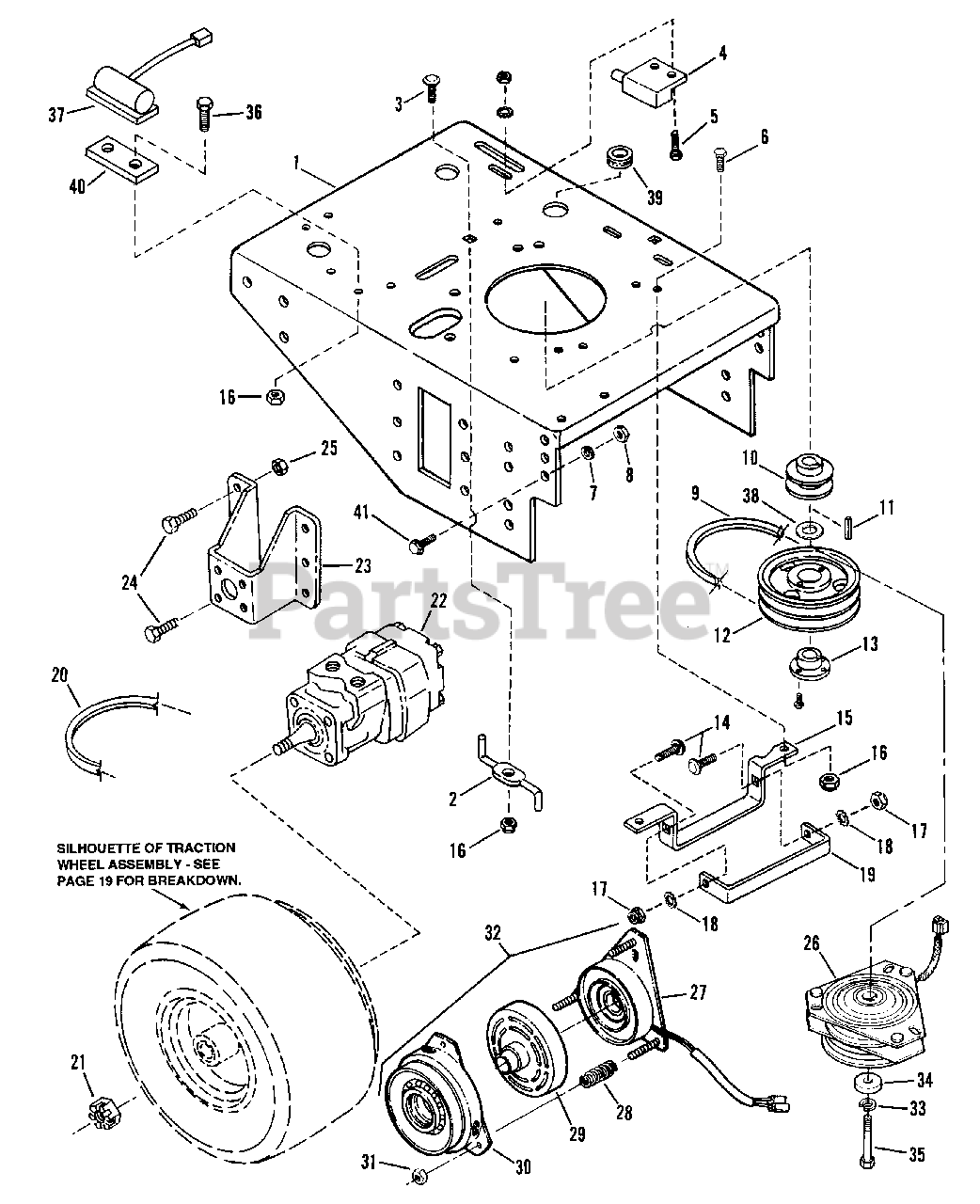

Rear Deck Assembly Parts Diagram

  • Title

1

Snapper 7026922

WELDMENT, Rear Deck

Note: (Manual Blade Engage)

$

$

Currently unavailable

Snapper 7026946

WELDMENT, Rear Deck

Note: (Electric Blade Engage)

$

$

Currently unavailable

2

Snapper 7033341

KEEPER, Belt
(Superseded to 7033341YP)

$12.99

$

Usually ships in 2-12 days

0

3

Snapper 7091303

BOLT, 5/16-18 x 1" Carriage
(Superseded to 703800)

Note: Was 90383

$3.99

$

In Stock, Qty 7

0

4

Snapper 7027225

SWITCH, Blade
(Superseded to 7027225YP)

$

$

Not available

5

Snapper 7027222

SCREW, #10-24 x 3/4" Slotted Hex Head Flange

$

$

Not available

6

Snapper 7091318

BOLT, 5/16-28 x 3/4 Hex Head Cap
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 9

0

7

Snapper 7090254

WASHER, 1/2" Split Lock
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7091316

NUT, 1/2-13 Hex
(Superseded to 703340)

Note: Was 90258

$7.99

$

In Stock, only 1 left!

0

9

Snapper 7029908

BELT, Engine/Deck, 36" Model
(Superseded to 7029908YP)

Note: Was 38624

$56.99

$

Usually ships in 2-12 days

0

Snapper 7024678

BELT, Engine/Deck, 48" Model
(Superseded to 7024678YP)

$57.99

$

Usually ships in 2-12 days

0

10

Snapper 7027132

PULLEY, Engine/Hydro 4"
(Superseded to 7027132YP)

$92.99

$

Usually ships in 2-12 days

0

11

Snapper 7017033

KEY, 1/4" Square
(Superseded to 7017033YP)

Note: (Manual Blade Engage)

$5.49

$

In Stock, only 4 left!

0

Snapper 7019188

KEY, 1/4" Square
(Superseded to 7019188YP)

Note: (Electric Blade Engage)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7017337

PULLEY, Engine/Deck

$

$

Not available

13

Snapper 7023381

BUSHING, Taperlock
(Superseded to 7023381YP)

Note: (Includes Bolts)

$50.99

$

Usually ships in 2-12 days

0

14

Snapper 7090496

BOLT, 1/4-20 x 1" Carriage
(Superseded to 7090496YP)

Note: (48" Unit Only)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7033420

GUIDE, Engine Belt 36"
(Superseded to 7033420YP)

$110.99

$

Usually ships in 2-12 days

0

Snapper 7026912

GUIDE, Engine Belt 48"

$

$

Not available

16

Snapper 7091298

NUT, 5/16-18 Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7076978

NUT, 1/4-20
(Superseded to 703232)

Note: (48" Unit Only)

$4.49

$

In Stock, Qty 20+

0

18

Snapper 7090574

WASHER, 1/4" ITET Lock

Note: (48" Unit Only)

$

$

Not available

19

Snapper 7024288

SUPPORT, Belt
(Superseded to 7024288YP)

Note: (48" Unit Only)

$13.99

$

Usually ships in 2-12 days

0

20

Snapper 7029615

BELT, Engine/Hydro
(Superseded to 7029615YP)

Note: Was 27130

$49.99

$

In Stock, only 1 left!

0

21

Snapper 7027194

NUT, 3/4-28 Pack
(Superseded to 7027194YP)

$62.99

$

Usually ships in 2-12 days

0

22

Snapper 7027128

WHEEL MOTOR

$

$

Currently unavailable

23

Snapper 7026907

WHEEL MOUNT

$

$

Not available

24

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

25

Snapper 7091299

NUT, 3/8-16 Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

26

Snapper 7017063

CLUTCH, Electric
(Superseded to 7017063YP)

$359.99

$

Usually ships in 2-12 days

0

27

Snapper 7014947

COIL, Field

Note: (Includes Ball Bearing)

$

$

Not available

28

Snapper 7014950

SPRING, Coil
(Superseded to 7014950YP)

$6.99

$

Usually ships in 2-12 days

0

29

Snapper 7014948

ROTOR
(Superseded to 7014948YP)

$153.99

$

Usually ships in 2-12 days

0

30

Snapper 7014949

ASSEMBLY, Arm Pulley
(Superseded to 7014949YP)

Note: (Includes Ball Bearing)

$295.99

$

In Stock, only 1 left!

0

31

Snapper 7090854

NUT, 3/8-24 Hex Lock
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

32

Snapper 7053679

KIT, Electric Clutch
(Superseded to 7053679YP)

Note: Was 19982 (Includes items 27 thru 31)

$396.99

$

Usually ships in 2-12 days

0

33

Snapper 7091301

WASHER, 7/16 Lock
(Superseded to 704007)

Note: Was 90247

$4.49

$

In Stock, Qty 20+

0

34

Snapper 7016147

SPACER
(Superseded to 7091807SM)

$2.99

$

Usually ships in 2-12 days

0

35

Snapper 7091029

SCREW, M10- 1.5 x 55mm Hex Head Cap
(Superseded to 7091029YP)

$4.99

$

Usually ships in 2-12 days

0

36

Snapper 7076934

SCREW, 5/16-18 x 1"
(Superseded to 7076934YP)

$3.49

$

Usually ships in 2-12 days

0

37

Snapper 7027215

CAPACITOR

Note: (Kawasaki Engines Only)

$

$

Currently unavailable

38

Snapper 7027206

BUSHING, 1-1/2" O.D. x 1 I.D.

$

$

Not available

39

Snapper 7027156

GROMMET

$

$

Currently unavailable

40

Snapper 7026978

MOUNT, Capacitor
(Superseded to 7026978YP)

Note: (Kawasaki Engines Only)

$7.99

$

Usually ships in 2-12 days

0

41

Snapper 7090622

BOLT, 1/2-13 x 1-1/4" Hex Flange lock
(Superseded to 7090622YP)

$4.99

$

Usually ships in 2-12 days

0
