PL 7H1404KV (80683) - Snapper Walk-Behind Mower, 14hp Tank Bracket Assembly Parts Diagram

Walk-Behind Mower, 14hp

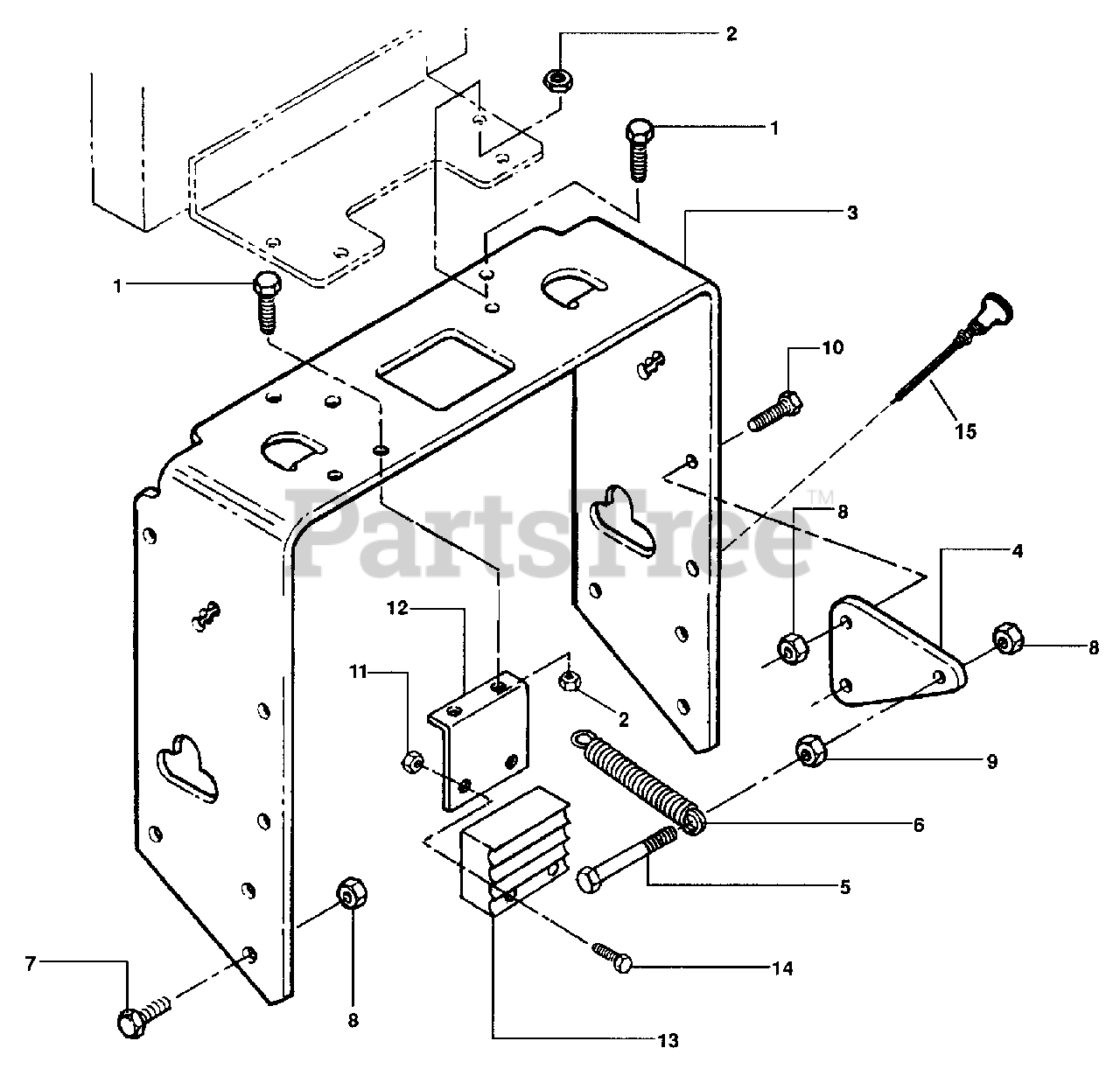

Tank Bracket Assembly Parts Diagram

  • Title

1

Snapper 7091303

SCREW, 5/16-18 X 1"
(Superseded to 703800)

Note: Was 90383

$3.99

$

In Stock, Qty 7

0

2

Snapper 7091298

NUT, 5/16 Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

3

Snapper 7026980

TANK MOUNT BRACKET

$

$

Currently unavailable

4

Snapper 7026891

SPRING MOUNT PLATE

$

$

Currently unavailable

5

Snapper 7091305

BOLT, 3/8-16 X 2" Hex Head Cap
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

In Stock, only 1 left!

0

6

Snapper 7027197

SPRING, Drive
(Superseded to 7027197YP)

$12.99

$

Usually ships in 2-12 days

0

7

Snapper 7027198

BOLT, 3/8-16 X 1" Flanged
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

8

Snapper 7091299

NUT, 3/8-16 Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

9

Snapper 7091302

NUT, 3/8-16
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7091304

BOLT, 3/8-16 X 1"
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

11

Snapper 7076978

NUT, 1/4-20 Nyloc
(Superseded to 703232)

Note: (Kawasaki Engine Only)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7073073

BRACKET, Module, Electric Clutch
(Superseded to 7073073YP)

Note: Was 26977 (Kawasaki Engine only)

$16.99

$

Usually ships in 2-12 days

0

13

Snapper 7027234

MODULE, Electric Clutch
(Superseded to 7027234YP)

Note: (Kawasaki Engine Only)

$279.99

$

Usually ships in 2-12 days

0

14

Snapper 7091495

SCREW, 1/4-20 X 3/4"
(Superseded to 703925)

Note: Was 90073 (Kawasaki Engine Only)

$4.49

$

In Stock, Qty 7

0

15

Snapper 7024185

CONTROL, Choke
(Superseded to 7024185YP)

Note: (18 HP B&S and Kohler)

$31.99

$

In Stock, only 1 left!

0
