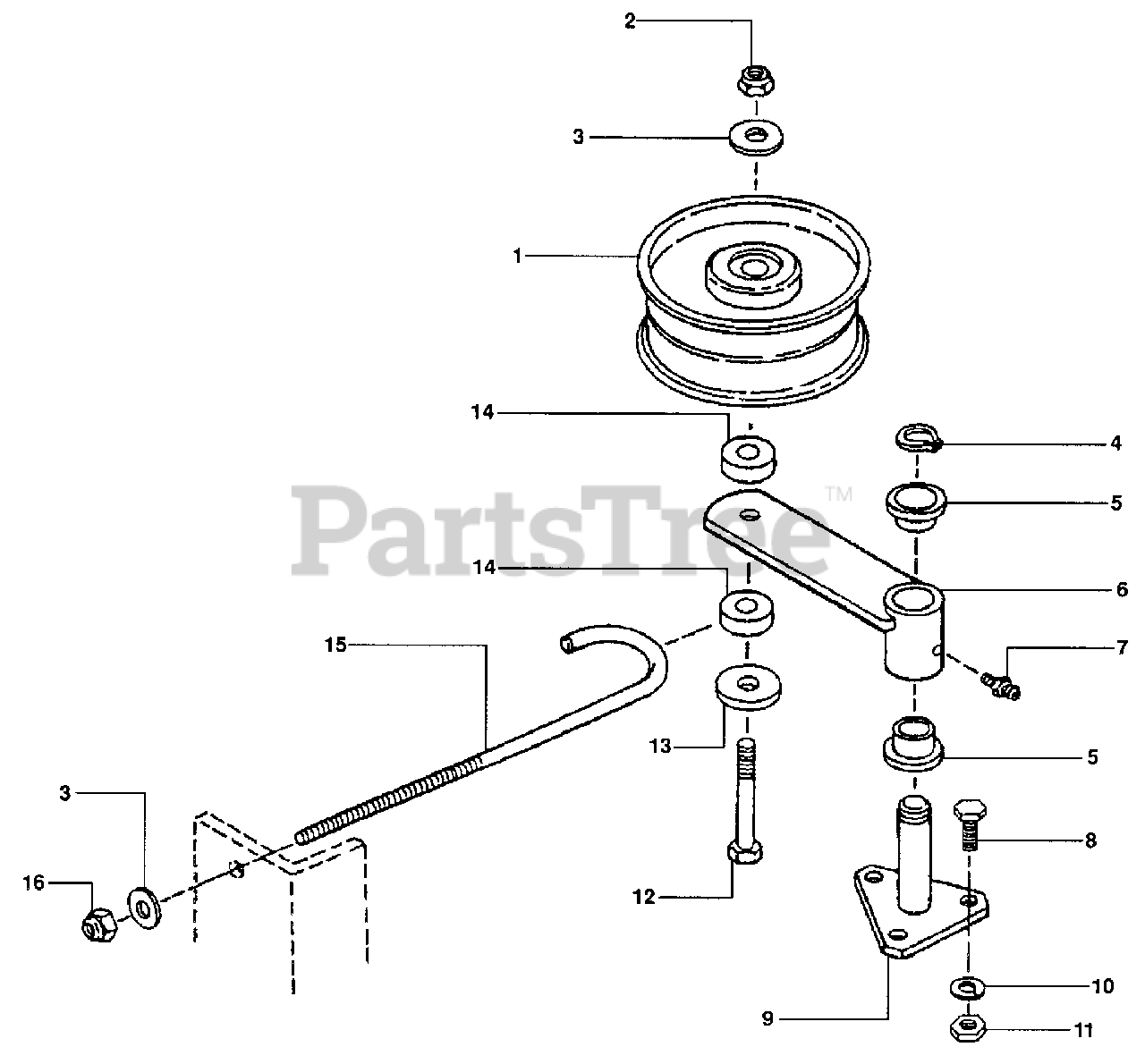

PL 7H1404KV (80683) - Snapper Walk-Behind Mower, 14hp Deck Idler Assembly Parts Diagram

Walk-Behind Mower, 14hp

Deck Idler Assembly Parts Diagram

  • Title

1

Snapper 7034422

PULLEY, Idler (5.00 O.D.)
(Superseded to 7034422SM)

$38.99

$

In Stock, Qty 20+

0

2

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

3

Snapper 7090517

WASHER,.44" I.D. X 1" O.D.
(Superseded to 7090517SM)

Note: Was 91300

$4.49

$

In Stock, Qty 8

0

4

Snapper 7012709

RING, 1" Retaining
(Superseded to 703993)

$3.49

$

In Stock, Qty 13

0

5

Snapper 7023556

BUSHING
(Superseded to 7023556YP)

$8.49

$

In Stock, Qty 20+

0

6

Snapper 7041296

IDLER ARM (Weldment)
(Superseded to 7041296YP)

$148.99

$

Usually ships in 2-12 days

0

7

Snapper 7076998

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

8

Snapper 7091304

BOLT, 3/8-16 X 1" Hex Head Cap
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

9

Snapper 7041295

PIVOT, Idler Arm
(Superseded to 7041295YP)

$44.99

$

Usually ships in 2-12 days

0

10

Snapper 7091320

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

11

Snapper 7091302

NUT, 3/8-16 Hex, Grade 5
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7091557

BOLT, 3/8-16 X 2 3/4" Hex Head Cap, Grade 5
(Superseded to 703133)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 7091331

WASHER, 13/32" Flat
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

14

Snapper 7029723

BUSHING, .38" I.D. X 1" O.D. X .410"
(Superseded to 7029723YP)

$11.99

$

Usually ships in 2-12 days

0

15

Snapper 7029695

HOOK, "J"
(Superseded to 7029695YP)

$7.99

$

Usually ships in 2-12 days
