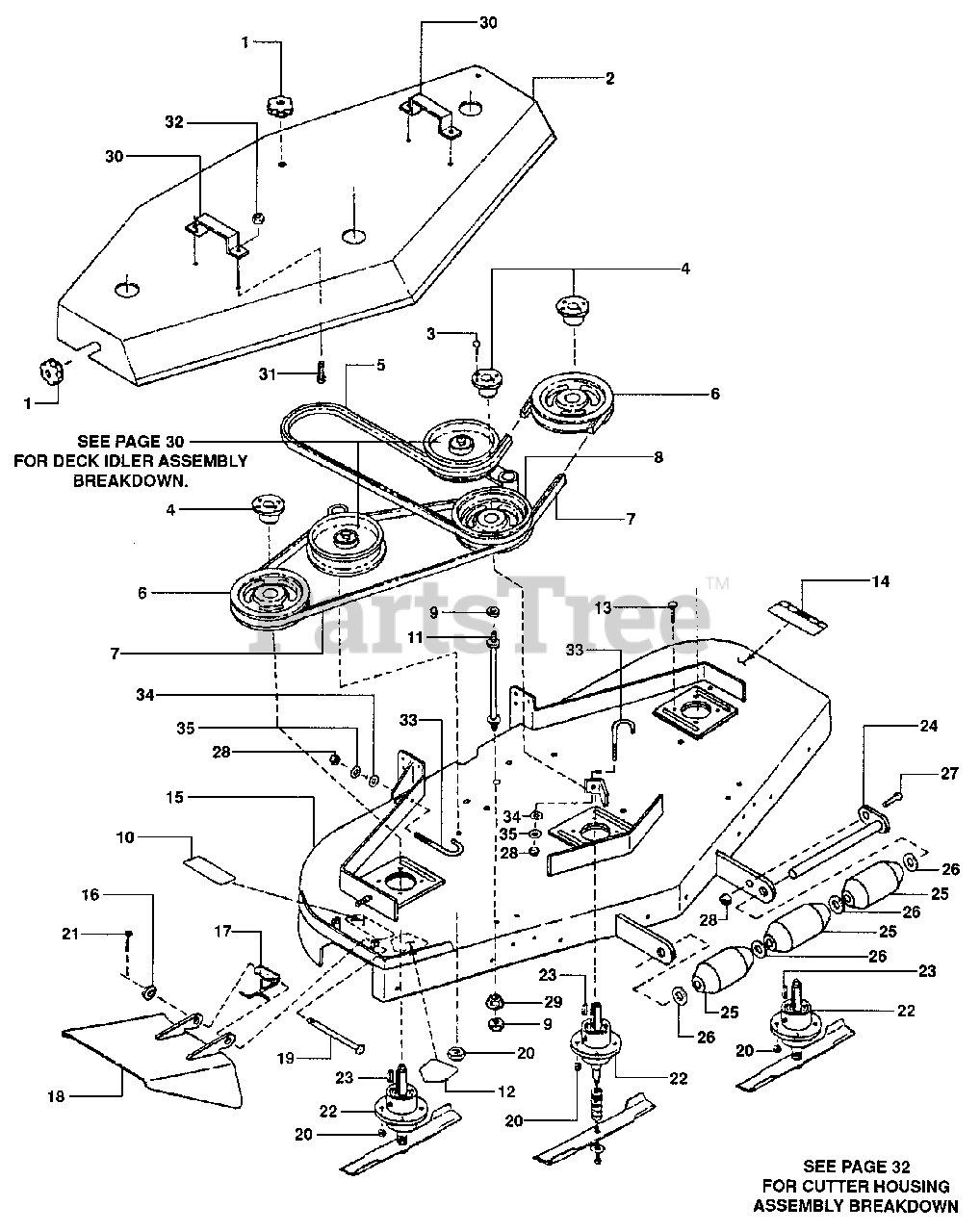

PL 7H1404KV (80683) - Snapper Walk-Behind Mower, 14hp 52" Mower Deck Assembly Parts Diagram

Walk-Behind Mower, 14hp

52" Mower Deck Assembly Parts Diagram

  • Title

1

Snapper 7023735

KNOB, Hood
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

2

Snapper 7027312

HOOD
(Superseded to 7027312YP)

$535.99

$

Usually ships in 2-12 days

0

3

Snapper 7090643

BOLT, 1/4-20 x 7/8" Hex Head Cap
(Superseded to 7090643YP)

$

$

Not available

4

Snapper 7023381

BUSHING, Taperlock
(Superseded to 7023381YP)

$50.99

$

Usually ships in 2-12 days

0

5

Snapper 7027346

BELT, Engine To Deck
(Superseded to 7027346YP)

$66.99

$

Usually ships in 2-12 days

0

6

Snapper 7017336

PULLEY, Cutter Blade Drive
(Superseded to 7017336YP)

$90.99

$

Usually ships in 2-12 days

0

7

Snapper 7027347

BELT, Blade
(Superseded to 7027347YP)

$49.99

$

In Stock, only 1 left!

0

8

Snapper 7029922

PULLEY, Cutter Blade Drive (Double Groove)
(Superseded to 7029922YP)

$99.99

$

Usually ships in 2-12 days

0

9

Snapper 7091298

NUT, 5/16-18 Hex (Nyloc)
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7022522

DECAL, Caution
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0

11

Snapper 7027345

STUD, Hood Mount
(Superseded to 7027345YP)

$12.99

$

Usually ships in 2-12 days

0

12

Snapper 7013010

DECAL, Danger
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

13

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

14

Snapper 7027881

DECAL, Caution

$

$

Currently unavailable

15

Snapper 7080707

WELDMENT, 52" Deck

Note: Was 27326

$

$

Currently unavailable

16

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

17

Snapper 7024125

SPRING, Chute
(Superseded to 7027950YP)

$

$

Not available

18

Snapper 7027329

DEFLECTOR, Chute, 52" Deck
(Superseded to 7027329YP)

$176.99

$

Usually ships in 2-12 days

0

19

Snapper 7024124

ROD, Chute Pivot
(Superseded to 7024124YP)

$13.99

$

Usually ships in 2-12 days

0

20

Snapper 7091299

NUT, 3/8-16 Hex Lock (Nyloc)
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7091313

PIN, 3/32 x 1" Cotter
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 1 left!

0

22

Snapper 7052457

ASSEMBLY, Cutter Housing
(Superseded to 7052457YP)

$569.99

$

Usually ships in 2-12 days

0

23

Snapper 7017033

KEY, Spindle
(Superseded to 7017033YP)

$5.49

$

In Stock, only 4 left!

0

24

Snapper 7027327

WELDMENT, Roller Pivot Pin
(Superseded to 7027327YP)

$82.99

$

In Stock, only 1 left!

0

25

Snapper 7073142

ROLLER
(Superseded to 7073142YP)

Note: Was 79226

$16.99

$

In Stock, Qty 7

0

26

Snapper 7027344

WASHER, 5/8 Flat
(Superseded to 7027344SM)

$3.99

$

Usually ships in 2-12 days

0

27

Snapper 7091304

BOLT, 3/8- x 1" Hex Head
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

28

Snapper 7091299

NUT, 3/8- Hex Lock (Nyloc)
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

29

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

30

Snapper 7076585

HANDLE
(Superseded to 7076585YP)

$29.99

$

Usually ships in 2-12 days

0

31

Snapper 7091495

SCREW, 1/4- x 3/4" Hex Head Cap
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 7

0

32

Snapper 7076978

NUT, 1/4- Hex Lock (Nyloc)
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

33

Snapper 7029695

"S" ROD
(Superseded to 7029695YP)

$7.99

$

Usually ships in 2-12 days

0

34

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

35

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17
