PL 7H1404KV (80683) - Snapper Walk-Behind Mower, 14hp 48" Mower Deck Assembly Parts Diagram

Walk-Behind Mower, 14hp

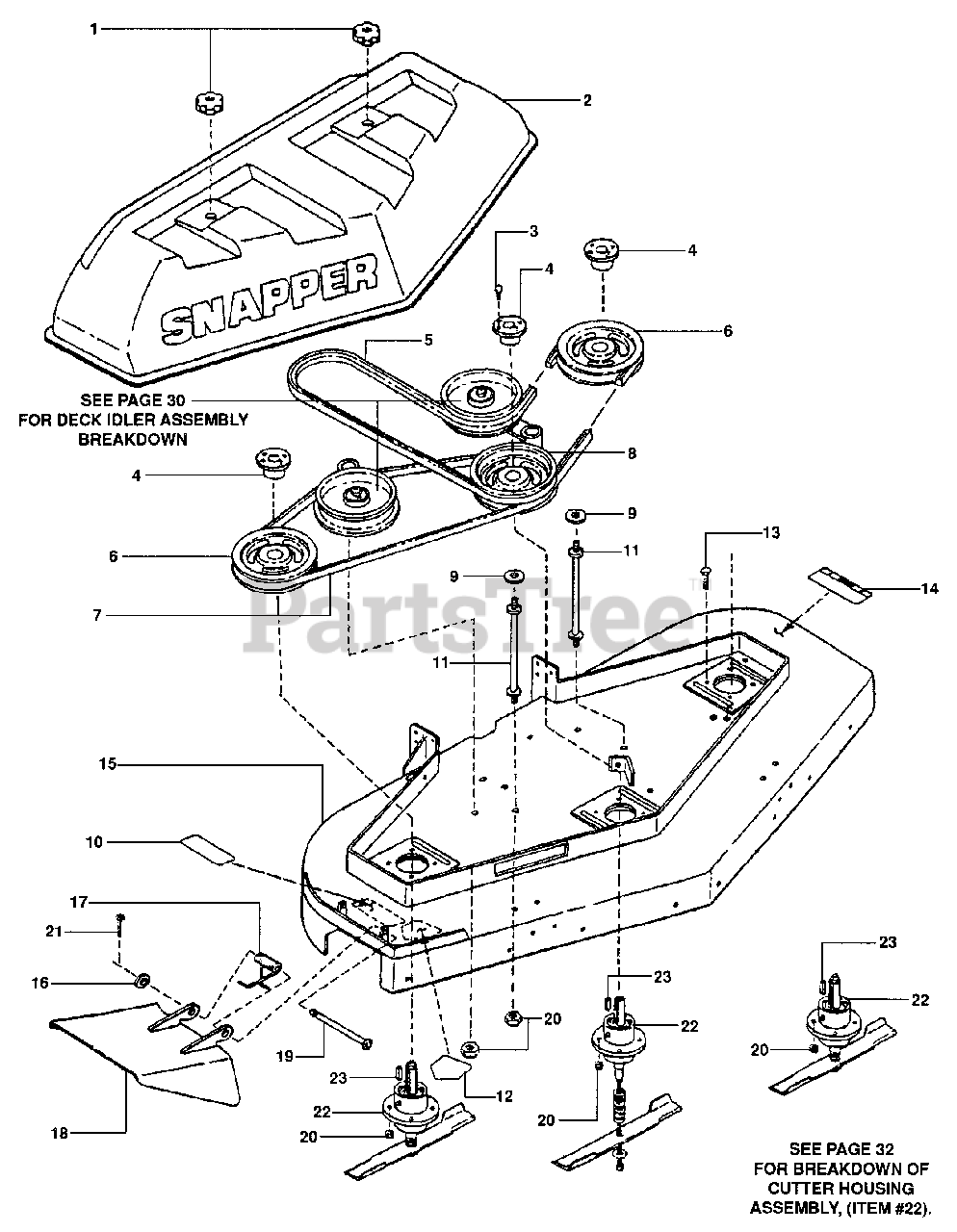

48" Mower Deck Assembly Parts Diagram

  • Title

1

Snapper 7023735

KNOB, Hood
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

2

Snapper 7017874

HOOD
(Superseded to 7017874YP)

$378.99

$

Usually ships in 2-12 days

0

3

Snapper 7090643

BOLT, 1/4-20 X 7/8" Hex Head Cap
(Superseded to 7090643YP)

$

$

Not available

4

Snapper 7023381

BUSHING, Taperlock
(Superseded to 7023381YP)

$50.99

$

Usually ships in 2-12 days

0

5

Snapper 7029907

BELT, Engine To Deck
(Superseded to 7029907YP)

$57.99

$

In Stock, only 2 left!

0

6

Snapper 7017338

PULLEY, Cutter Blade Drive

$

$

Not available

7

Snapper 7019205

BELT, Blade
(Superseded to 7019205YP)

$56.99

$

In Stock, only 1 left!

0

8

Snapper 7029922

PULLEY, Cutter Blade Drive (Double Groove)
(Superseded to 7029922YP)

$99.99

$

Usually ships in 2-12 days

0

9

Snapper 7091331

WASHER, 13/32" I.D. X 1-1/2" O.D.
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

10

Snapper 7022522

DECAL, Caution
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0

11

Snapper 7022890

STUD, Hood Mount
(Superseded to 7022890YP)

$18.99

$

Usually ships in 2-12 days

0

12

Snapper 7013010

DECAL, Danger
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

13

Snapper 7091328

SCREW, 3/8-16 X 1 1/4 Hex Head Cap
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

14

Snapper 7073647

DECAL, Caution
(Superseded to 7073647YP)

Note: Was 24156

$7.99

$

Usually ships in 2-12 days

0

15

Snapper 7080689

WELDMENT, 48" Deck

Note: Was 41280 (Series 1)

$

$

Currently unavailable

16

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 3 left!

0

17

Snapper 7027950

SPRING, Chute
(Superseded to 7027950YP)

$

$

Not available

18

Snapper 7040659

DEFLECTOR, Chute, 48" Deck
(Superseded to 7040659YP)

$128.99

$

Usually ships in 2-12 days

0

19

Snapper 7024124

ROD, Chute Pivot
(Superseded to 7024124YP)

$13.99

$

Usually ships in 2-12 days

0

20

Snapper 7091299

NUT, 3/8-16 Hex (Nyloc)
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7091313

PIN, 3/32 X 1" Cotter
(Superseded to 704058)

$3.49

$

In Stock, only 1 left!

0

22

Snapper 7052457

ASSEMBLY, Cutter Housing
(Superseded to 7052457YP)

$569.99

$

Usually ships in 2-12 days

0

23

Snapper 7017033

KEY, Spindle
(Superseded to 7017033YP)

$5.49

$

In Stock, only 4 left!

0
