PL 7140KWV (80336) - Snapper Walk-Behind Mower, 14hp Traction Wheel Assembly Parts Diagram

Walk-Behind Mower, 14hp

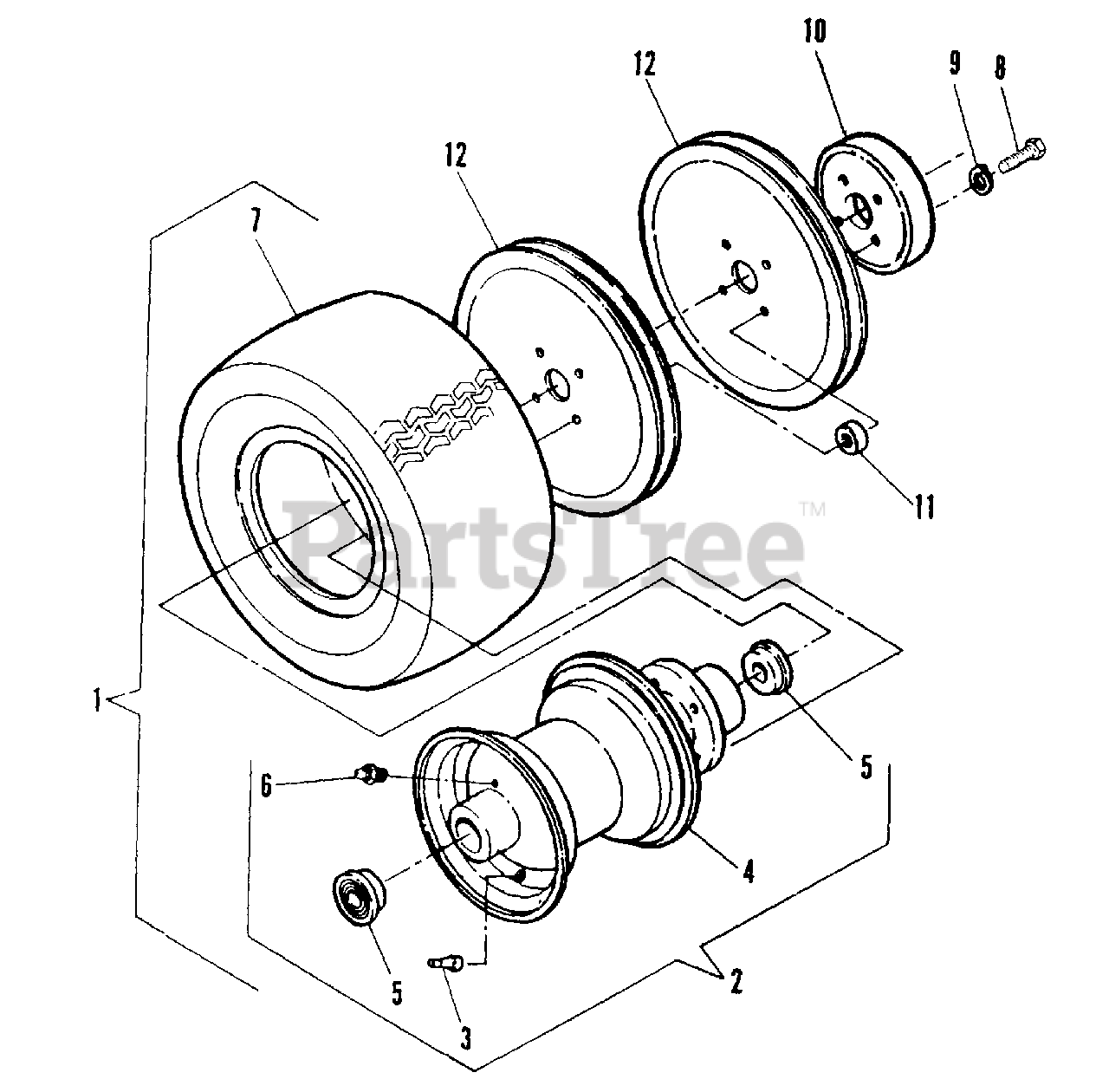

Traction Wheel Assembly Parts Diagram

  • Title

1

Snapper 7029860

WHEEL & RIM ASSEMBLY

Note: Was 24177 (Includes Items 2 thru 7)

$

$

Currently unavailable

2

Snapper 7023518

RIM ASSEMBLY

Note: (Includes Items 3 thru 6)

$

$

Currently unavailable

3

Snapper 7012234

VALVE STEM
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

4

Snapper 7023518

RIM

Note: Was 16239

$

$

Currently unavailable

5

Snapper 7019169

BEARING, Wheel
(Superseded to 7019169YP)

$35.99

$

In Stock, only 4 left!

0

6

Snapper 7076998

ZERK FITTING
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

7

Snapper 7023788

TIRE, 6.50 x 13 - 6, 2 Ply, Tubeless
(Superseded to 7023788YP)

Note: Was 24176

$120.99

$

Usually ships in 2-12 days

0

8

Snapper 7076935

SCREW, Hex Head Cap, 5/16" - 2 x 1-1/2"
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

9

Snapper 7090187

WASHER, Lock, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 7023516

DRUM, Brake
(Superseded to 7023516YP)

$39.99

$

Usually ships in 2-12 days

0

11

Snapper 7023515

SPACER
(Superseded to 7023515YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7017531

PULLEY, 8"
(Superseded to 7017531YP)

$41.99

$

Usually ships in 2-12 days

0
