PL 7140KWV (80336) - Snapper Walk-Behind Mower, 14hp R.H. Traction Pulley Assembly Parts Diagram

Walk-Behind Mower, 14hp

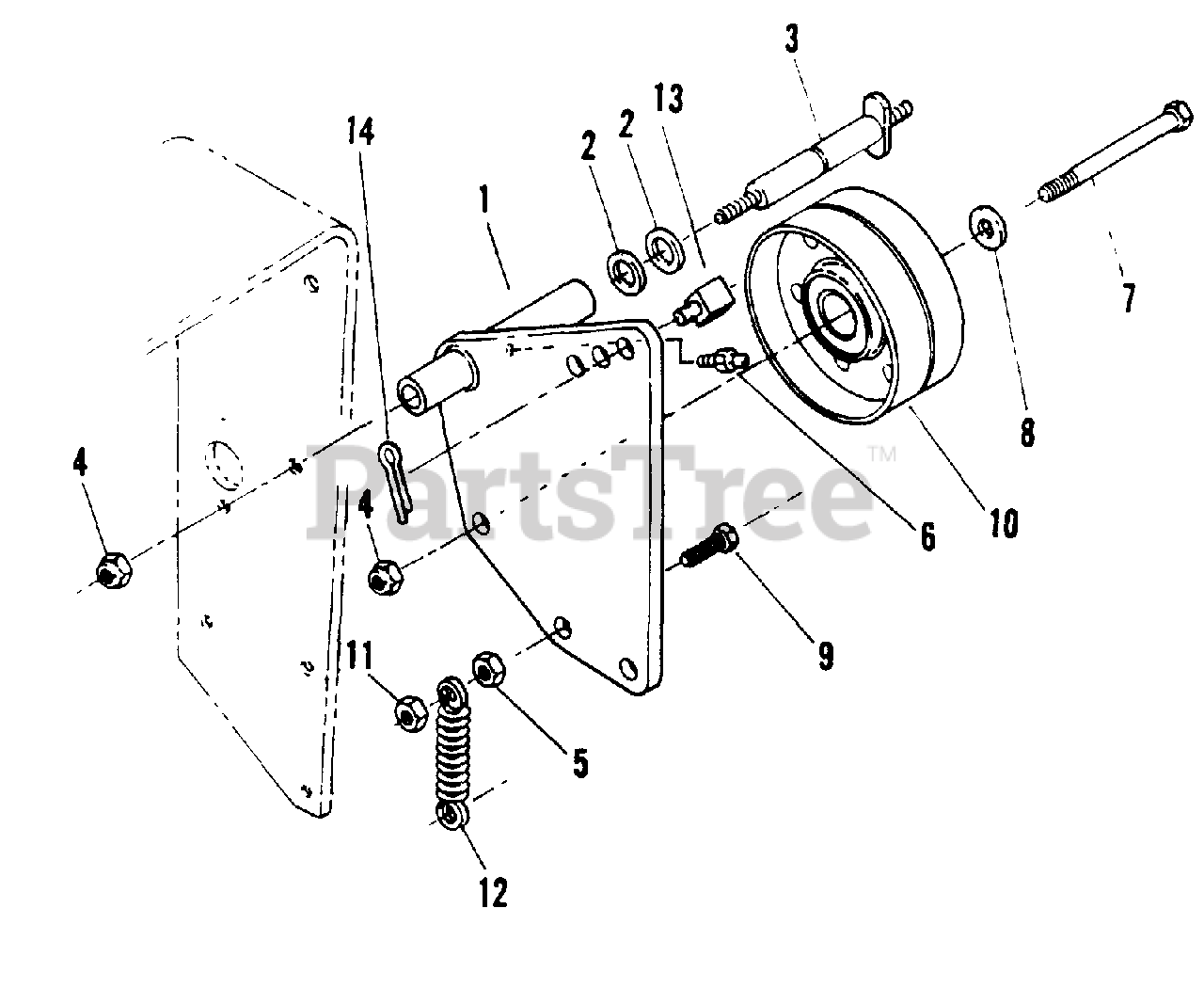

R.H. Traction Pulley Assembly Parts Diagram

  • Title

1

Snapper 7041326

ARM, Traction R.H.

$

$

Not available

2

Snapper 7091043

MACHINE BUSHING, 5/8"
(Superseded to 7091043YP)

$3.49

$

In Stock, only 4 left!

0

3

Snapper 7023664

STUD, Fender Mount

$

$

Not available

4

Snapper 7091299

NUT, 3/8" C Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7091601

NUT, 5/16C Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7076998

GREASE FITTING, 1/4" - 28 Str. Zerk
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

7

Snapper 7090629

SCREW, 3/8" -16 x 2-1/4" Lg. Hex Cap
(Superseded to 7090629YP)

$2.49

$

Usually ships in 2-12 days

0

8

Snapper 7090517

FLATWASHER, 3/8"
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

9

Snapper 7090627

BOLT, 5/16 - 18 x 1-1/4" Hex

$

$

Not available

10

Snapper 24246

PULLEY, Idler 4.0

$1.99

$

Usually ships in 2-12 days

0

11

Snapper 7091298

NUT, 5/16"
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

12

Snapper 7016158

SPRING, Traction
(Superseded to 7016158YP)

$

$

Not available

13

Snapper 7017516

SWIVEL, Traction Rod
(Superseded to 7017516YP)

Note: (Loop Handle)

$23.99

$

Usually ships in 2-12 days

0

Snapper 7024270

SWIVEL, Traction Rod

Note: (Pistol Grip Handle)

$

$

Not available

14

Snapper 7091313

PIN, 3/32 x 1' Cotter
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 1 left!

0
