PL 7140KWV (80336) - Snapper Walk-Behind Mower, 14hp Deck Idler Assembly Parts Diagram

Walk-Behind Mower, 14hp

Deck Idler Assembly Parts Diagram

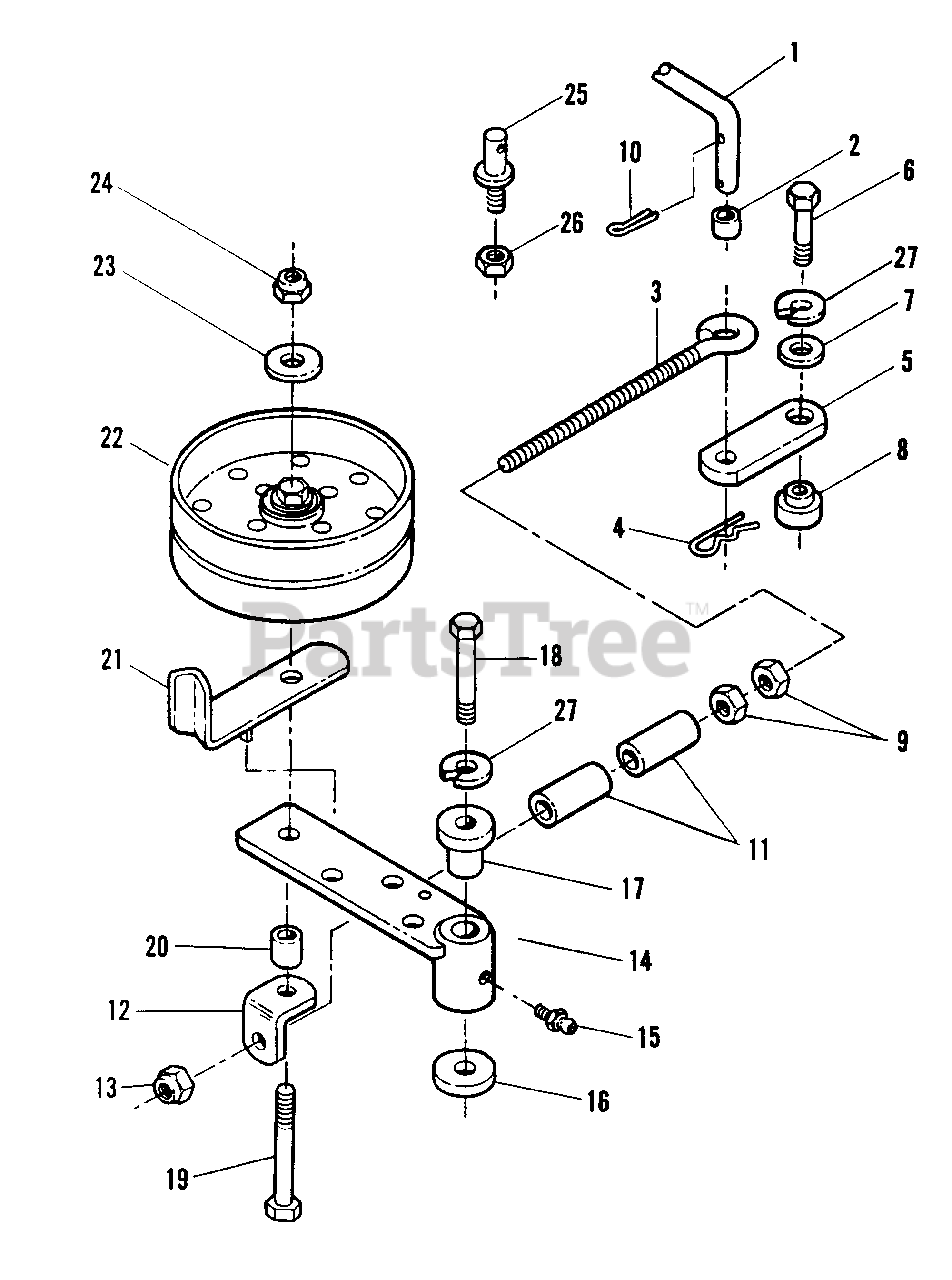

  • Title

1

Snapper 7017528

LINK, Blade Engage
(Superseded to 7017528YP)

$18.99

$

Usually ships in 2-12 days

0

2

Snapper 7017513

SLEEVE, Linkage
(Superseded to 7017513YP)

$25.99

$

Usually ships in 2-12 days

0

3

Snapper 7017530

LINK, Blade Engage
(Superseded to 7017530YP)

$25.99

$

Usually ships in 2-12 days

0

4

Snapper 7091310

PIN, #13 Hair
(Superseded to 703430)

Note: Was 16231

$3.49

$

In Stock, only 2 left!

0

5

Snapper 7033194

LINK, Blade Assist
(Superseded to 7033194YP)

$12.99

$

Usually ships in 2-12 days

0

6

Snapper 7091497

SCREW, 3/8" x 1 1/2 Lg. Hex Cap
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, only 1 left!

0

7

Snapper 7090517

FLAT WASHER, 3/8"
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

8

Snapper 7022183

SPACER, Pivot

$8.49

$

Usually ships in 2-12 days

0

9

Snapper 7091302

NUT, 3/8" - 16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7091313

PIN, 3/32" x 1" Lg. Cotter
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 1 left!

0

11

Snapper 7024095

BUSHING
(Superseded to 7024095YP)

$5.49

$

Usually ships in 2-12 days

0

12

Snapper 7033204

ANGLE, Blade Engage
(Superseded to 7033204YP)

$12.99

$

Usually ships in 2-12 days

0

13

Snapper 7091299

NUT, 3/8" - 16 Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7040981

WELDMENT, 36" Idler
(Superseded to 7040981YP)

$95.99

$

Usually ships in 2-12 days

0

15

Snapper 7076998

GREASE Fitting., 1/4" - 28 Str. Zerk
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

16

Snapper 7016561

MACHINE BUSHING, 14 GA. 1
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 7

0

17

Snapper 7016173

SPACER, Pivot
(Superseded to 7016173YP)

$6.99

$

Usually ships in 2-12 days

0

18

Snapper 7090590

SCREW, 3/8" C x 3" Lg. Hex. Cap, GR. 5
(Superseded to 7090590YP)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 7090637

SCREW, 3/8" x 2 1/2" Lg. Hex. Cap
(Superseded to 7090637YP)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7017509

SPACER, Blade Link

$5.49

$

Usually ships in 2-12 days

0

21

Snapper 7033480

BELT GUIDE
(Superseded to 7033480YP)

$9.99

$

Usually ships in 2-12 days

0

22

Snapper 7034422

PULLEY, Idler 5.0
(Superseded to 7034422SM)

Note: Was 24239

$38.99

$

In Stock, Qty 20+

0

23

Snapper 7090517

FLATWASHER, 3/8"
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

24

Snapper 7091299

NUT, 3/8" C Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

25

Snapper 7015464

STUD
(Superseded to 7015464YP)

$7.49

$

In Stock, only 1 left!

0

26

Snapper 7090289

NUT, 3/8" Hex.
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

27

Snapper 7090118

LOCKWASHER, 3/8" Split
(Superseded to 703454)

$3.49

$

In Stock, Qty 16
