PL 7140KWV (80336) - Snapper Walk-Behind Mower, 14hp Brake Assembly Parts Diagram

Walk-Behind Mower, 14hp

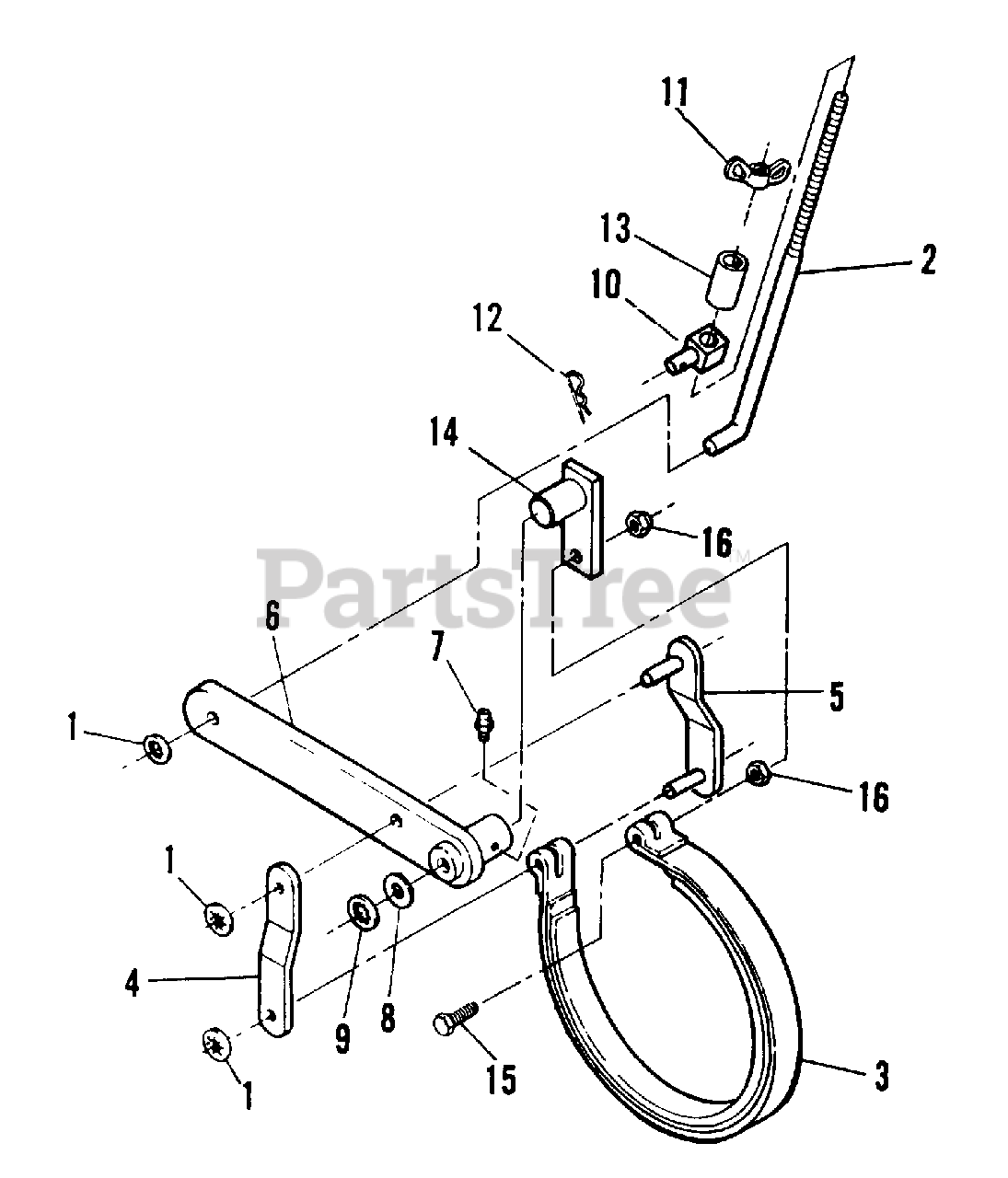

Brake Assembly Parts Diagram

  • Title

1

Snapper 7013946

RETAINER, 3/8"
(Superseded to 7013946YP)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 7016886

ROD, Brake

$

$

Not available

3

Snapper 7074810

BAND, Brake, 6"
(Superseded to 7074810YP)

Note: Was 17048

$64.99

$

Usually ships in 2-12 days

0

4

Snapper 7032903

PLATE, Brake Link
(Superseded to 7032903YP)

$11.99

$

In Stock, only 1 left!

0

5

Snapper 7040622

LINK, Brake
(Superseded to 7040622YP)

$50.99

$

In Stock, only 1 left!

0

6

Snapper 7041020

BRAKE, Lever

$94.99

$

Usually ships in 2-12 days

0

7

Snapper 7076998

ZERK, 1/4 - 28, Straight
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

8

Snapper 7091043

BUSHING, Machinery, 5/8"
(Superseded to 7091043YP)

$3.49

$

In Stock, only 4 left!

0

9

Snapper 7091040

RETAINER, 5/8"
(Superseded to 7091040YP)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7017780

SWIVEL, Brake Link
(Superseded to 7017780YP)

$11.99

$

Usually ships in 2-12 days

0

11

Snapper 7091049

WING NUT, 3/8" C, Nylon Lock
(Superseded to 7091049SM)

$5.49

$

In Stock, only 2 left!

0

12

Snapper 7091313

PIN, 3/32" x 1" Cotter
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 1 left!

0

13

Snapper 7024095

SPACER
(Superseded to 7024095YP)

$5.49

$

Usually ships in 2-12 days

0

14

Snapper 7040711

BRAKE STUD WLD

$

$

Not available

15

Snapper 7091305

BOLT, 3/8" - 16 x 2", Hex
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

In Stock, only 1 left!

0

16

Snapper 7091302

NUT, 3/8 C, Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0
