PL 7140KWV (80336) - Snapper Walk-Behind Mower, 14hp Blade Brake (PMA7480) Parts Diagram

Walk-Behind Mower, 14hp

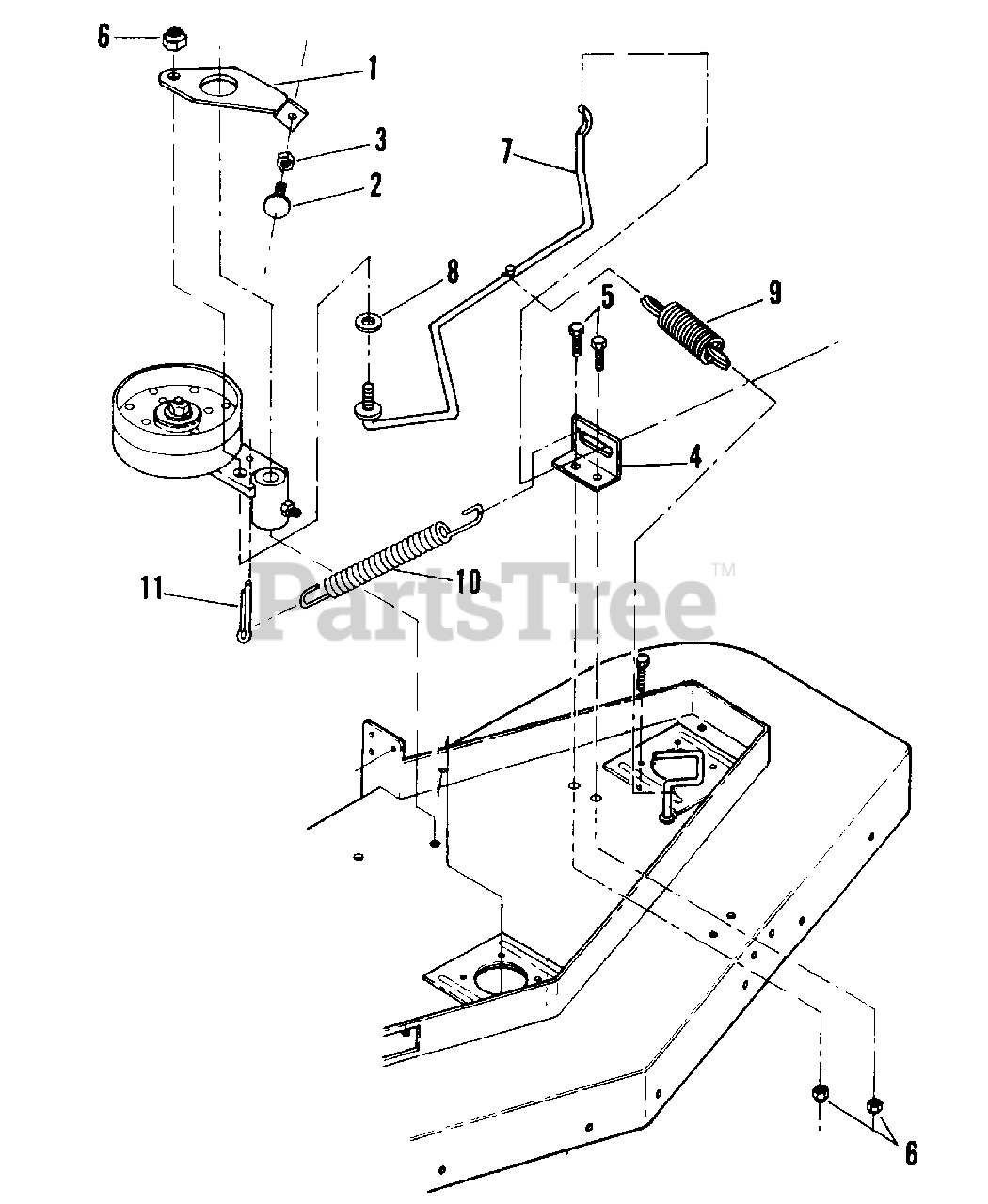

Blade Brake (PMA7480) Parts Diagram

  • Title

1

Snapper 7024254

ARM, Brake 48"
(Superseded to 7024254YP)

$25.99

$

Usually ships in 2-12 days

0

2

Snapper 7091928

BOLT, 5/16C x 1-11/4" Grade 2 Carriage
(Superseded to 703446)

Note: Was 90978

$4.49

$

In Stock, Qty 5

0

3

Snapper 7090197

NUT, 5/16C Hex Jam
(Superseded to 7090197YP)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 7033491

BRACKET, Brake
(Superseded to 7033491YP)

$16.99

$

Usually ships in 2-12 days

0

5

Snapper 7091086

SCREW, 3/8C x 3/4" Grade 5 Hex Cap
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

6

Snapper 7091299

NUT, 3/8C Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7024255

BELT GUIDE, Brake
(Superseded to 7024255YP)

$34.99

$

In Stock, only 3 left!

0

8

Snapper 7017855

WASHER, 3/8" Wave

$

$

Currently unavailable

9

Snapper 7016158

SPRING, Traction
(Superseded to 7016158YP)

$

$

Not available

10

Snapper 7012264

SPRING, Idler Return
(Superseded to 7012264YP)

$6.99

$

In Stock, Qty 16

0

11

Snapper 7090357

PIN, 3/16 x 3/4"
(Superseded to 7090357YP)

$3.49

$

Usually ships in 2-12 days

0
