PL 71404KWV (7080695) - Snapper Walk-Behind Mower, 14hp 36" Mower Deck Assembly Parts Diagram

Walk-Behind Mower, 14hp

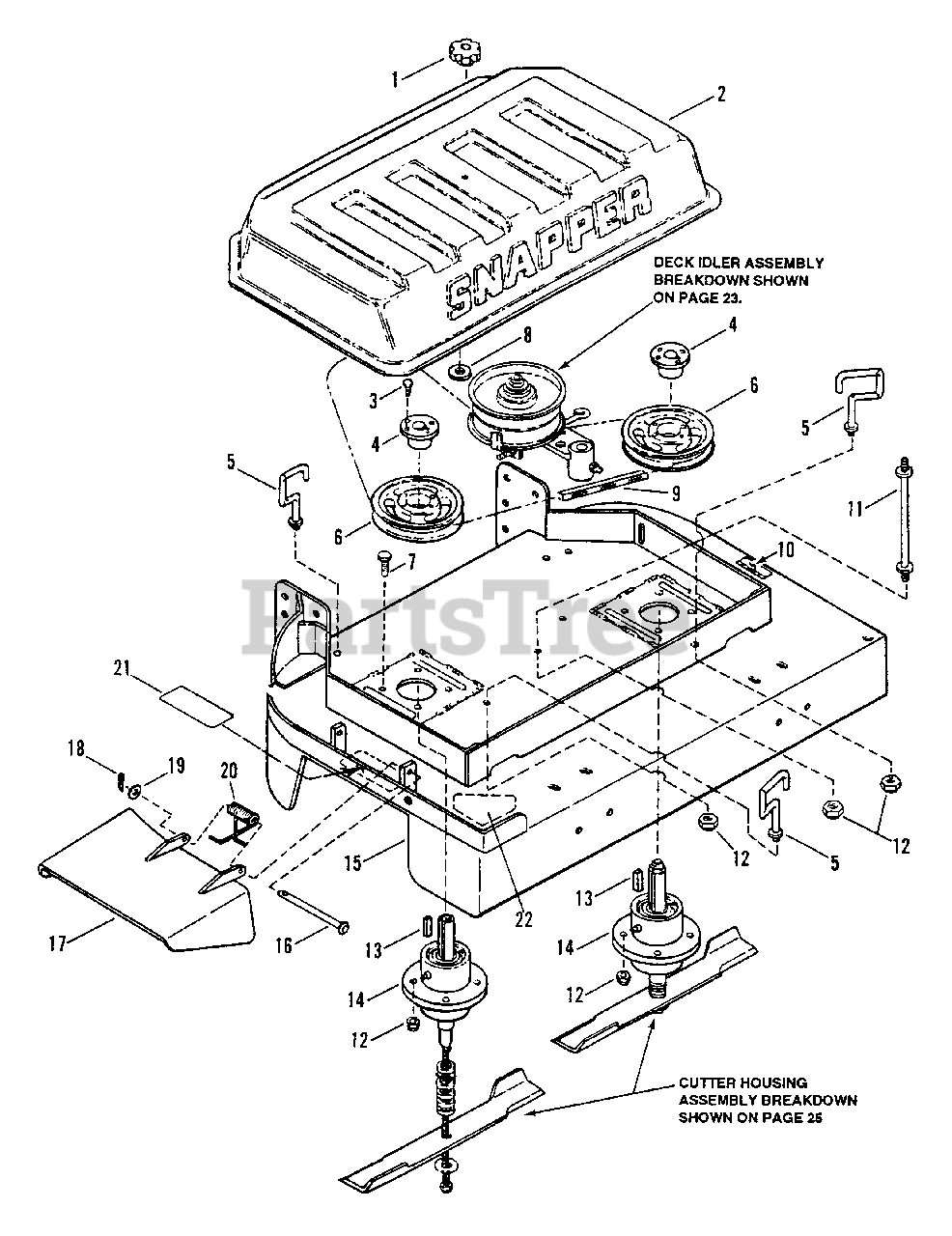

36" Mower Deck Assembly Parts Diagram

  • Title
1

Snapper Pro 7023735

KNOB, Hood

$6.99

$

In Stock, Qty 20+

0

$

$

Currently unavailable

3

Snapper Pro 7090643

BOLT, 1/4-20 x 7/8" Hex Head Cap

$

$

Not available

4

Snapper Pro 7023381

BUSHING, Taperlock
(Superseded to 7023381YP)

$50.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7017336

PULLEY, Cutter Blade Drive
(Superseded to 7017336YP)

$90.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

8

Snapper Pro 7091331

WASHER, 13/32" I.D. x 1-1/2" O.D.

$

$

Not available

9

Snapper Pro 7029908

BELT, 36" Deck, 83.625" E.L. HB
(Superseded to 7029908YP)

$56.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7073647

DECAL, Caution
(Superseded to 7073647YP)

Note: Was 24156

$7.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7022890

STUD, Hood Mount

$18.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

13

Snapper Pro 7017033

KEY, Spindle, 1/4 x 1/4 x 2 1/2"
(Superseded to 7017033YP)

$5.49

$

In Stock, only 4 left!

0

14

Snapper Pro 7052457

ASSEMBLY, Cutter Housing
(Superseded to 7052457YP)

$569.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 7041279

WELDMENT, 36" Deck

$

$

Currently unavailable

16

Snapper Pro 7024124

ROD, Chute Pivot

$13.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 7041321

DEFLECTOR, 36" Chute
(Superseded to 7041321YP)

$153.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 7091313

PIN, 3/32 x 1" Cotter

$

$

Not available

19

Snapper Pro 7090188

WASHER, 5/16 Flat

Note: Was 91296

$

$

Not available

20

Snapper Pro 7027950

SPRING, Chute
(Superseded to 7027950YP)

$

$

Not available

21

Snapper Pro 7022522

DECAL, Caution
(Superseded to 7046720SM)

$7.49

$

In Stock, only 1 left!

0

22

Snapper Pro 7013010

DECAL, Danger
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 10

0
