PL 71402KWV (80584) - Snapper Walk-Behind Mower, 14hp Pistol Grip Handle & Control Assemblies Parts Diagram

Walk-Behind Mower, 14hp

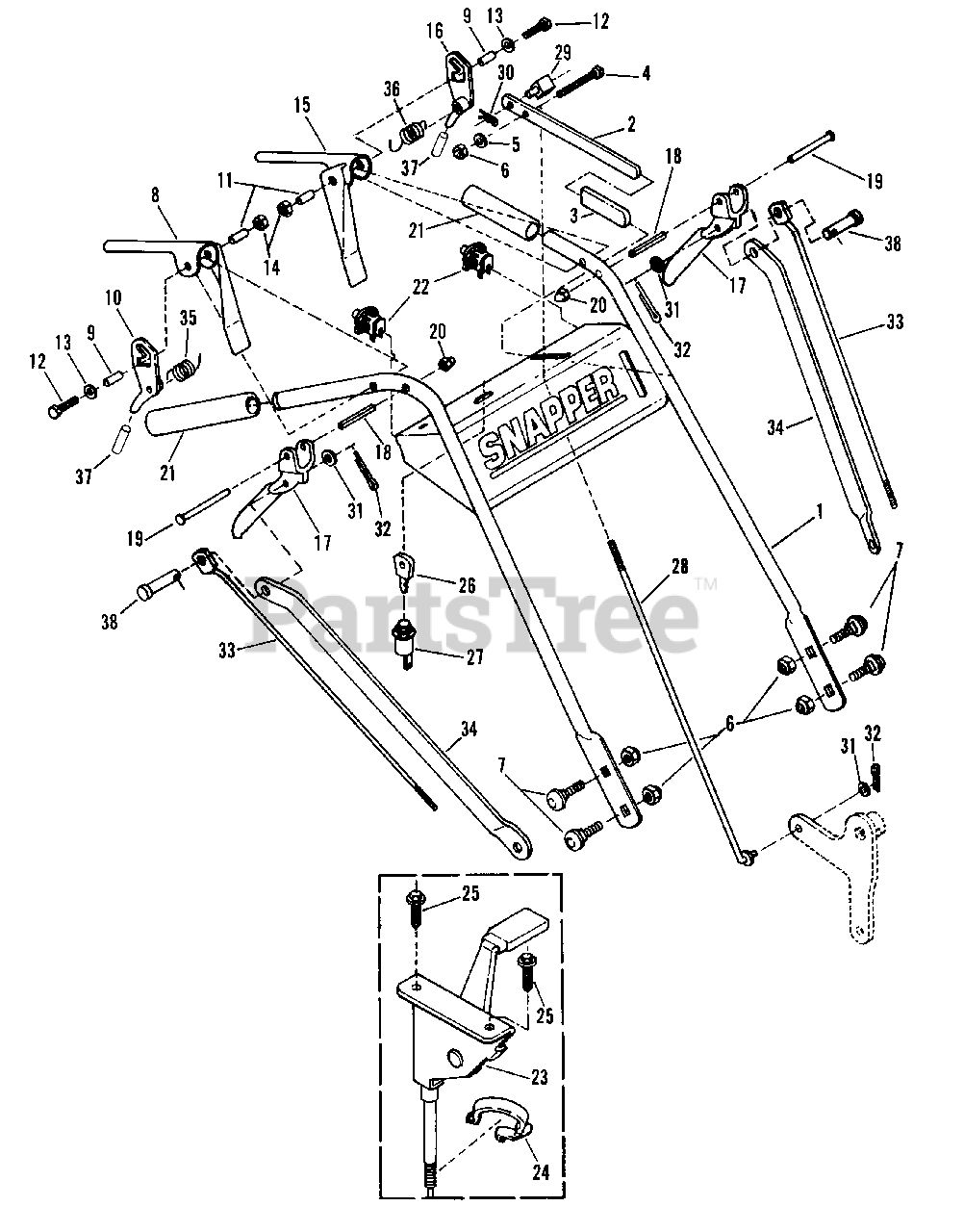

Pistol Grip Handle & Control Assemblies Parts Diagram

  • Title

1

Snapper 7041147

HANDLE, Pistol Grip
(Superseded to 7041147YP)

$478.99

$

Usually ships in 2-12 days

0

2

Snapper 7033550

LEVER, Blade Engagement
(Superseded to 7033550YP)

$13.99

$

Usually ships in 2-12 days

0

3

Snapper 7076526

GRIP, Lever
(Superseded to 7076526YP)

$3.99

$

In Stock, only 1 left!

0

4

Snapper 7090590

SCREW, 3/8-16 x 3" Hex Head Cap
(Superseded to 7090590YP)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7090250

WASHER, 3/8" Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

6

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7091640

BOLT, 3/8-16 x 1" Short Neck Carriage (Grade 2)
(Superseded to 703814)

Note: Was 90747

$4.49

$

In Stock, only 4 left!

0

8

Snapper 7041317

GRIP, Pistol OPC (Right Hand)
(Superseded to 7041317YP)

$75.99

$

Usually ships in 2-12 days

0

9

Snapper 24079

SPACER, OPC

$

$

Currently unavailable

10

Snapper 7041320

LATCH (Right Hand)
(Superseded to 7041320YP)

$62.99

$

Usually ships in 2-12 days

0

11

Snapper 7024129

SPACER, Brake
(Superseded to 7024129YP)

$15.99

$

Usually ships in 2-12 days

0

12

Snapper 7091732

SCREW, 1/4-20 x 2-3/4" Hex Head Cap

Note: Was 90971

$

$

Not available

13

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7091705

NUT, 1/4-20 Hex Lock
(Superseded to 704319)

Note: Was 90761

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7041318

GRIP, Pistol OPC (Left Hand)
(Superseded to 7041318YP)

$71.99

$

Usually ships in 2-12 days

0

16

Snapper 7041319

LATCH (Left Hand)
(Superseded to 7041319YP)

$62.99

$

Usually ships in 2-12 days

0

17

Snapper 7071640

LEVER, Drive (With Grip)

Note: Was 77870

$

$

Not available

18

Snapper 7023313

PIN, 5/16 x 1-1/8" Roll
(Superseded to 7023313YP)

$2.99

$

Usually ships in 2-12 days

0

19

Snapper 7014733

PIN, 3/16 x 1-3/4" Clevis
(Superseded to 7014733YP)

$4.49

$

In Stock, only 1 left!

0

20

Snapper 7014734

NUT, 3/16 Push

$3.49

$

In Stock, Qty 9

0

21

Snapper 7024127

GRIP, Handle
(Superseded to 7024127YP)

$7.49

$

Usually ships in 2-12 days

0

22

Snapper 7015707

SWITCH, Seat
(Superseded to 7015707YP)

$8.99

$

In Stock, Qty 20+

0

23

Snapper 7024665

CONTROL, Throttle
(Superseded to 7024665YP)

Note: (Kohler)

$

$

Not available

Snapper 7022354

CONTROL, Throttle
(Superseded to 7022354YP)

Note: (Kawasaki)

$28.99

$

Usually ships in 2-12 days

0

24

Snapper 7011709

CLIP, Throttle
(Superseded to 7011709YP)

$

$

Not available

25

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 11

0

26

Snapper 7073406

KEY, Switch (With Cover)
(Superseded to 1717163SM)

Note: Was 23504

$8.99

$

In Stock, Qty 20+

0

27

Snapper 7011853

SWITCH (On-Off)
(Superseded to 7011853YP)

Note: Was 15211

$27.99

$

In Stock, only 3 left!

0

28

Snapper 7024099

ROD, Blade Clutch
(Superseded to 7024099YP)

$17.99

$

Usually ships in 2-12 days

0

29

Snapper 7024607

SWIVEL
(Superseded to 7024607YP)

$8.49

$

In Stock, only 1 left!

0

30

Snapper 7091310

HAIR-PIN, 3/32 x 1 3/16"
(Superseded to 703430)

Note: Was 16231

$3.49

$

In Stock, only 2 left!

0

31

Snapper 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

32

Snapper 7091313

COTTER-PIN, 3/32 x 1"
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 1 left!

0

33

Snapper 7029156

ROD, Traction
(Superseded to 7029156YP)

Note: Was 24710

$18.99

$

Usually ships in 2-12 days

0

34

Snapper 7033725

STRAP, Brake (Left Side)

$

$

Not available

Snapper 7033719

STRAP, Brake (Right Side)

$

$

Currently unavailable

35

Snapper 7024501

SPRING, Torsion (Left Hand)
(Superseded to 7024501YP)

$7.99

$

Usually ships in 2-12 days

0

36

Snapper 7024502

SPRING, Torsion (Right Hand)
(Superseded to 7024502YP)

$7.99

$

Usually ships in 2-12 days

0

37

Snapper 7024571

GRIP
(Superseded to 7024571YP)

$3.49

$

Usually ships in 2-12 days

0

38

Snapper 7024590

PIN, 5/16 x 2" Reverse
(Superseded to 7024590YP)

$3.99

$

Usually ships in 2-12 days

0
