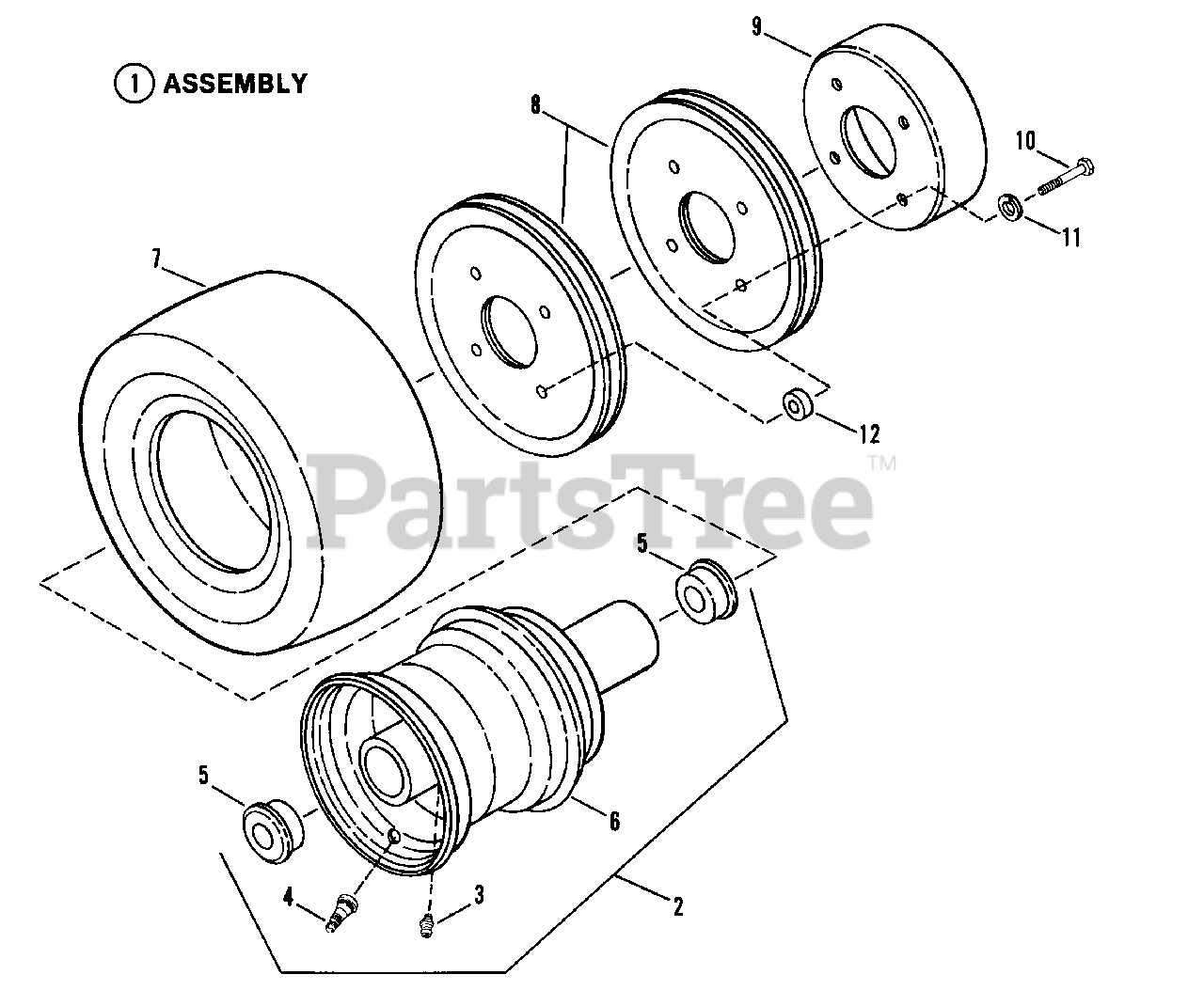

PL 71402KV (7080579) - Snapper Walk-Behind Mower, 14hp Traction, Rear Wheel Assembly Parts Diagram

Walk-Behind Mower, 14hp

Traction, Rear Wheel Assembly Parts Diagram

  • Title

1

Snapper Pro 7029860

ASSEMBLY, Rear Tire & Rim

Note: Was 24177 (Includes Items 2 thru 7)

$

$

Currently unavailable

2

Snapper Pro 7023518

ASSEMBLY, Rim

Note: (Includes items 3 thru 6)

$

$

Currently unavailable

3

Snapper Pro 7076998

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

4

Snapper Pro 7012234

VALVE, Air (Snap-In)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 7019169

BEARING, Wheel
(Superseded to 7019169YP)

$35.99

$

In Stock, only 4 left!

0

6

Snapper Pro 7023518

RIM

Note: Was 16239

$

$

Currently unavailable

7

Snapper Pro 7023788

TIRE, 6.50 x 13-6, 2-Ply, Tubeless
(Superseded to 7023788YP)

Note: Was 24176

$120.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7017531

PULLEY, 8"
(Superseded to 7017531YP)

$41.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7023516

DRUM, Brake
(Superseded to 7023516YP)

$39.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7076935

SCREW, 5/16-18 x 1 1/2" Hex Head Cap
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

11

Snapper Pro 7090187

WASHER, 5/16 Split Lock

$

$

Not available

12

Snapper Pro 7023515

SPACER
(Superseded to 7023515YP)

$3.49

$

Usually ships in 2-12 days

0
