PL 71252KV (7080537) - Snapper Walk-Behind Mower, 12.5hp Tank Bracket Assembly Parts Diagram

Walk-Behind Mower, 12.5hp

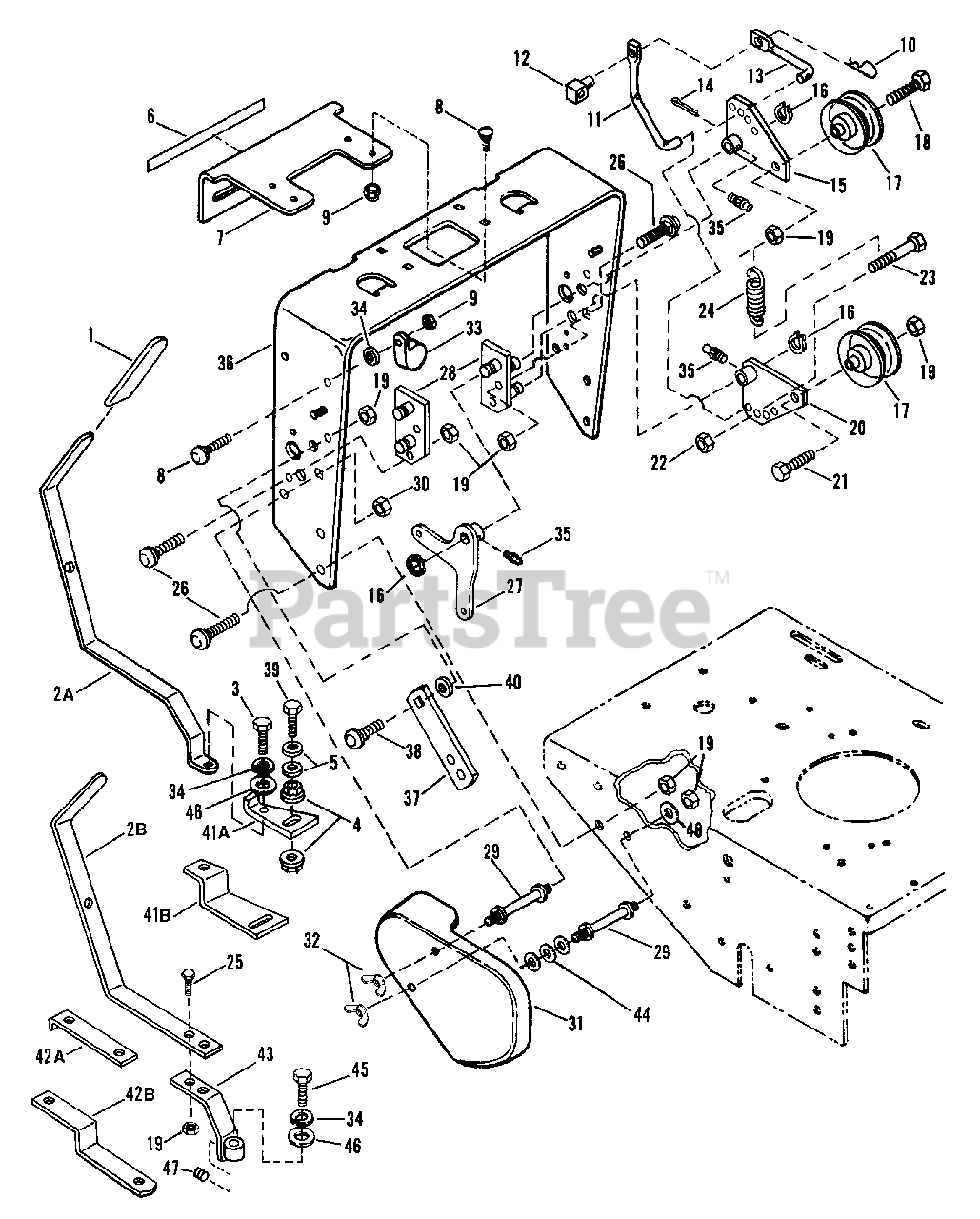

Tank Bracket Assembly Parts Diagram

  • Title

1

Snapper Pro 7076526

GRIP, Shift Lever

$4.99

$

In Stock, only 1 left!

0

2A

Snapper Pro 7034429

LEVER, Shifter
(Superseded to 7034429YP)

Note: Was 33250 (Now 34429 + 34430) (Early Production Series 1) & (Series 2)

$85.99

$

Usually ships in 2-12 days

0

2B

Snapper Pro 7033758

LEVER, Shifter
(Superseded to 7033758YP)

Note: (Late Production Series 1 Only)

$56.99

$

In Stock, only 1 left!

0

3

Snapper Pro 7090100

SCREW, 1/4-28 x 5/8" Hex Cap
(Superseded to 7090100YP)

Note: (Early Production Series 1) & (Series 2)

$5.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7090541

SCREW, 1/4-28 x 3/4" Hex Cap
(Superseded to 7090541YP)

Note: (Late Production Series 1 Only)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0

5

Snapper Pro 7014241

WASHER, 1/4" I.D., 1" O.D. Flat

Note: (12.5HP Kohler, Kawasaki, 14HP Kohler)

$

$

Currently unavailable

6

Snapper Pro 7022333

DECAL, Shift

$

$

Currently unavailable

7

Snapper Pro 7033253

QUADRANT, Shift
(Superseded to 7033253YP)

$93.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7076972

SCREW, 1/4-20 x 3/4" Short Neck Carriage

$

$

Currently unavailable

9

Snapper Pro 7076978

NUT, 1/4-20 Hex, Nyloc

$

$

Not available

10

Snapper Pro 7091310

HAIR-PIN, 3/32 x 1 3/16"
(Superseded to 703430)

Note: Was 16231 (Used With Pistol Grip)

$3.49

$

In Stock, Qty 8

0

11

Snapper Pro 7033715

LINK, Long (Left Hand)
(Superseded to 7033715YP)

$9.49

$

In Stock, only 1 left!

0

Snapper Pro 7033714

LINK, Long (Right Hand)
(Superseded to 7033714YP)

$6.99

$

In Stock, only 1 left!

0

12

Snapper Pro 7024607

SWIVEL
(Superseded to 7024607YP)

$8.99

$

In Stock, only 1 left!

0

13

Snapper Pro 7033713

LINK, Short

$

$

Not available

14

Snapper Pro 7091313

COTTER-PIN, 3/32 x 1"

Note: Was 90038 (2 Used With Loop Handle)

$

$

Not available

15

Snapper Pro 7041358

WELDMENT, Idler (Upper Left & Lower Right Sides)

$61.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 1 left!

0

17

Snapper Pro 7024707

PULLEY, Idler
(Superseded to 7024707YP)

$91.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 7090796

SCREW, 3/8-16 x 2 1/2" Hex Head Cap

$

$

Not available

19

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

Note: Was 76979

$3.49

$

In Stock, Qty 9

0

20

Snapper Pro 7041357

WELDMENT, Idler (Lower Left & Upper Right Sides)

$80.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

Note: Was 90588

$4.49

$

In Stock, Qty 20+

0

22

Snapper Pro 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.99

$

In Stock, Qty 20+

0

23

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

Note: Was 90206

$3.99

$

In Stock, only 2 left!

0

24

Snapper Pro 7029740

SPRING, Extension
(Superseded to 7029740YP)

Note: Was 24717

$

$

Not available

25

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

Note: Was 90563

$3.99

$

In Stock, only 2 left!

0

26

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Carriage
(Superseded to 703814)

Note: Was 90747

$4.49

$

In Stock, only 4 left!

0

27

Snapper Pro 7040747

WELDMENT, Blade Bellcrank
(Superseded to 7040747YP)

$114.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 7041360

WELDMENT, Idler Pivot (Left Hand)

$

$

Not available

Snapper Pro 7041359

WELDMENT, Idler Pivot (Right Hand)
(Superseded to 7041359YP)

$82.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 7022768

STUD, Fender Mount
(Superseded to 7022768YP)

$45.99

$

In Stock, Qty 5

0

30

Snapper Pro 7090665

NUT, 3/8-16 Hex Jam

$

$

Not available

31

Snapper Pro 7024713

FENDER, Left Hand

$

$

Currently unavailable

Snapper Pro 7024714

FENDER, Right Hand
(Superseded to 7024714YP)

$54.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 7091049

WING-NUT, 3/8-16
(Superseded to 7091049SM)

$5.49

$

In Stock, Qty 7

0

33

Snapper Pro 7018999

MODULE
(Superseded to 7018999YP)

Note: (Kohler) (Shown)

$52.99

$

Usually ships in 2-12 days

0

Snapper Pro 7022849

MODULE
(Superseded to 7022849YP)

Note: (Kawasaki)

$

$

Not available

34

Snapper Pro 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 5

0

35

Snapper Pro 7076998

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 8

0

36

Snapper Pro 7033726

BRACKET, Tank

$

$

Currently unavailable

37

Snapper Pro 7033720

ARM, Brake
(Superseded to 7033720YP)

$73.99

$

Usually ships in 2-12 days

0

38

Snapper Pro 7091923

BOLT, 3/8-16 x 3/4" Short Neck Carriage
(Superseded to 7091923SM)

Note: Was 90136

$3.49

$

Usually ships in 2-12 days

0

39

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

Note: Was 90548

$3.99

$

In Stock, Qty 10

0

40

Snapper Pro 7090122

WASHER, 3/8" Flat

$

$

Not available

41A

Snapper Pro 7033722

ARM, Reverse

Note: (12.5HP Kohler & Kawasaki, 14HP Kohler) (Early Production Series 1) & (Series 2) (Shown)

$8.99

$

Usually ships in 2-12 days

0

41B

Snapper Pro 7033798

ARM, Reverse
(Superseded to 7033798YP)

Note: (12.5HP Kohler & Kawasaki, 14HP Kohler) (Late Production Series 1 Only)

$9.49

$

Usually ships in 2-12 days

0

42A

Snapper Pro 7033654

LEVER, Reverse

Note: (14HP Kawasaki) (Early Production Series 1) & (Series 2)

$

$

Not available

42B

Snapper Pro 7033802

LEVER, Reverse
(Superseded to 7033802YP)

Note: (14HP Kawasaki) (Late Production Series 1 Only)

$16.99

$

Usually ships in 2-12 days

0

43

Snapper Pro 7041373

WELDMENT, Shifter Lever
(Superseded to 7041373YP)

Note: (Late Production Series 1 Only)

$62.99

$

Usually ships in 2-12 days

0

44

Snapper Pro 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$4.49

$

In Stock, Qty 8

0

45

Snapper Pro 1920787

CAPSCREW-HEX HD 5/16-18X0.500 G5 BLK
(Superseded to 704317)

Note: Was 90547

$4.49

$

Usually ships in 2-12 days

0

46

Snapper Pro 7091098

WASHER, 1/4 Flat
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

47

Snapper Pro 7090471

SCREW, 1/4-20 x 5/16" Socket Set
(Superseded to 7090471YP)

$4.49

$

Usually ships in 2-12 days

0

48

Snapper Pro 7090250

WASHER, 1/2 Flat
(Superseded to 704123)

$4.49

$

In Stock, Qty 20+

0
