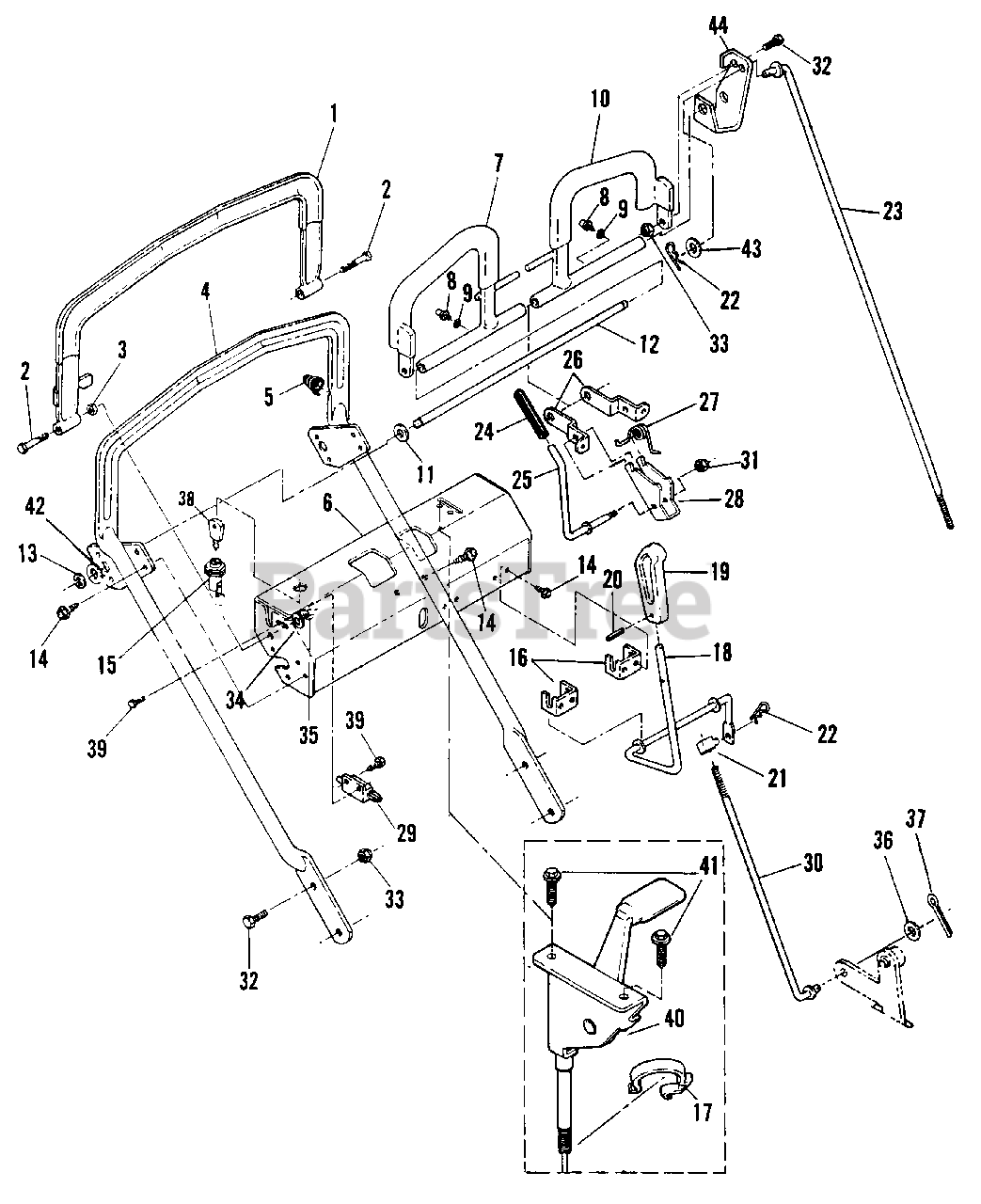

  • Title

1

Snapper 7040710

OPC BAIL (W/Grip)
(Superseded to 7040710YP)

Note: Was 17162

$119.99

$

Usually ships in 2-12 days

0

2

Snapper 7091813

BOLT, 1/4" - 20 x 1 3/4" Lg. Hex
(Superseded to 7091003YP)

Note: Was 91003

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7090977

NUT, 1/4" - 20 Hex J
(Superseded to 7090977YP)

$2.99

$

In Stock, only 2 left!

0

4

Snapper 7040743

HANDLE, Loop
(Superseded to 7040743YP)

$199.99

$

Usually ships in 2-12 days

0

5

Snapper 7017154

SPRING, Conical
(Superseded to 7017154YP)

$7.99

$

Usually ships in 2-12 days

0

6

Snapper 7024194

CONSOLE, Control
(Superseded to 7024194YP)

$142.99

$

Usually ships in 2-12 days

0

7

Snapper 7022741

TRACTION LEVER, R.H.
(Superseded to 7022741YP)

$125.99

$

Usually ships in 2-12 days

0

8

Snapper 7076998

GREASE FITTING, 1/4" - 28 Str. Zerk
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

9

Snapper 7090053

LOCKWASHER, 1/4" Int. Tooth
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

10

Snapper 7022740

TRACTION LEVER, L.H.

$

$

Not available

11

Snapper 7090250

WASHER, 1/2" Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

12

Snapper 7022166

ROD, Pivot
(Superseded to 7022166YP)

$31.99

$

Usually ships in 2-12 days

0

13

Snapper 7014341

E-RING, 1/2"
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

14

Snapper 7091122

SCREW, 1/4" - 20 x 1/2" Lg. Hex. Wshr. Self-Tap (Black)
(Superseded to 7091122SM)

$3.99

$

In Stock, Qty 7

0

15

Snapper 7011853

SWITCH, "ON-OFF"
(Superseded to 7011853YP)

Note: Was 15211 (Includes Key)

$27.99

$

In Stock, only 3 left!

0

16

Snapper 7033200

BRACKET, Lever Mounting
(Superseded to 7033200YP)

$14.99

$

Usually ships in 2-12 days

0

17

Snapper 7011709

CLIP, Cable
(Superseded to 7011709YP)

$

$

Not available

18

Snapper 7017649

LEVER, Blade Engagement
(Superseded to 7017649YP)

$26.99

$

Usually ships in 2-12 days

0

19

Snapper 7019376

KNOB
(Superseded to 7019376YP)

$6.49

$

Usually ships in 2-12 days

0

20

Snapper 7090844

PIN, 3/16" x 3/4" Lg. Roll
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 7017516

SWIVEL
(Superseded to 7017516YP)

$23.99

$

Usually ships in 2-12 days

0

22

Snapper 7091310

PIN, #13 Hair
(Superseded to 703430)

Note: Was 16231

$3.49

$

In Stock, only 2 left!

0

23

Snapper 7017371

ROD, Traction

$

$

Not available

24

Snapper 7023801

GRIP, Neutral Latch
(Superseded to 7023801YP)

Note: Was 11879

$4.49

$

In Stock, Qty 6

0

25

Snapper 7017322

LEVER, Neutral Latch
(Superseded to 7017322YP)

$18.99

$

Usually ships in 2-12 days

0

26

Snapper 7033193

BRACKET, Neutral Mounting
(Superseded to 7033193YP)

$23.99

$

Usually ships in 2-12 days

0

27

Snapper 7017323

SPRING, Neutral
(Superseded to 7017323YP)

$9.99

$

Usually ships in 2-12 days

0

28

Snapper 7033479

LATCH
(Superseded to 7033479YP)

$39.99

$

Usually ships in 2-12 days

0

29

Snapper 7019098

SWITCH (OPC)
(Superseded to 1723552SM)

$

$

Not available

30

Snapper 7017319

ROD, Blade Clutch (Loop Handle)
(Superseded to 7017319YP)

$18.99

$

Usually ships in 2-12 days

0

31

Snapper 7076978

LOCKNUT, 1/4" Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

32

Snapper 7091304

BOLT, 3/8" x 1" Lg. Hex., Gr. 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

33

Snapper 7091299

NUT, 3/8" Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

34

Snapper 7091098

WASHER, 1/4" Flat
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

35

Snapper 7076978

NUT, 1/4" - 20 Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

36

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

37

Snapper 7091313

PIN, 3/32" x 1" Cotter
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 1 left!

0

38

Snapper 7073406

KEY, Switch (With Cover)
(Superseded to 1717163SM)

Note: Was 23504

$8.99

$

In Stock, Qty 20+

0

39

Snapper 7077873

SCREW, #12-14 x 1/2" Hex Flange Self-tap
(Superseded to 7077873YP)

$3.49

$

Usually ships in 2-12 days

0

40

Snapper 7022354

CONTROL, Throttle
(Superseded to 7022354YP)

$28.99

$

Usually ships in 2-12 days

0

41

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 11

0

42

Snapper 7091030

BUSHING, 1/2" Machine
(Superseded to 7091030YP)

$2.99

$

Usually ships in 2-12 days

0

43

Snapper 13763

SPACER

$

$

Currently unavailable

44

Snapper 7033615

BRACE, Handle - LH
(Superseded to 7033615YP)

$53.99

$

Usually ships in 2-12 days

0

Snapper 7033616

BRACE, Handle - RH
(Superseded to 7033616YP)

$47.99

$

Usually ships in 2-12 days

0
