PL 71250KW (80247) - Snapper Walk-Behind Mower, 12.5hp Fuel Tank Assembly Parts Diagram

Walk-Behind Mower, 12.5hp

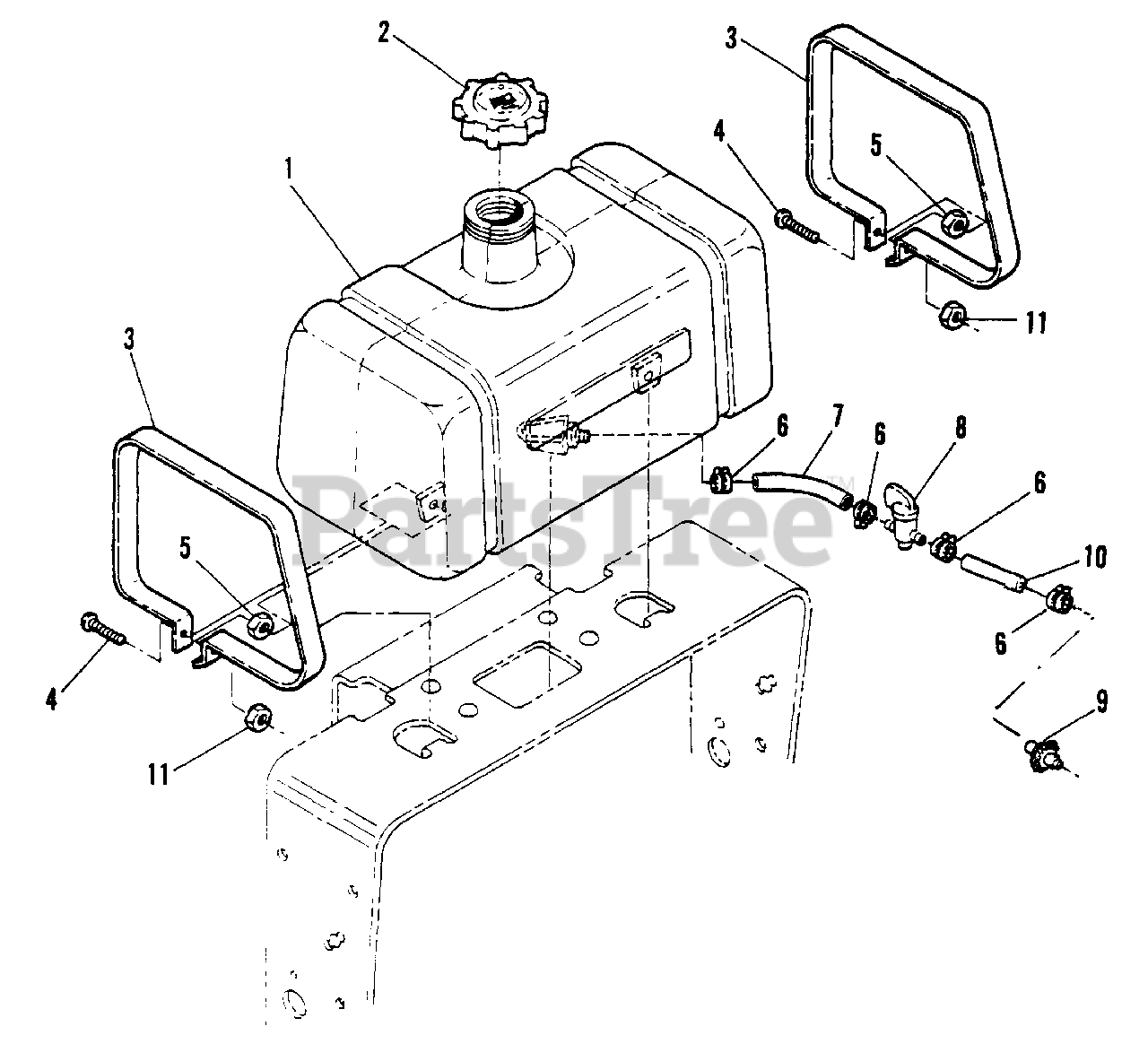

Fuel Tank Assembly Parts Diagram

  • Title
1

Snapper 7019186

TANK, Fuel
(Superseded to 7019186YP)

Note: (Includes Item 2)

$

$

Not available

2

Snapper 7012515

GAS CAP
(Superseded to 7012515YP)

Note: Was 14363

$19.99

$

In Stock, only 4 left!

0

3

Snapper 7032875

STRAP, Tank
(Superseded to 7032875YP)

$63.99

$

Usually ships in 2-12 days

0

4

Snapper 7091052

SCREW, Machine Head Phillips, #10 - 24 x 2
(Superseded to 7091052YP)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 7091053

NUT, Keps #10 - 24
(Superseded to 7091053YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7029900

HOSE, Clamp
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7032956

FUEL LINE, 10"
(Superseded to 7032956YP)

$

$

Not available

8

Snapper 7016325

FUEL SHUT-OFF VALVE
(Superseded to 7016325SM)

$19.99

$

In Stock, Qty 12

0

9

Snapper 7014359

FILTER, In-Line
(Superseded to 394358S)

Note: (Furnished by engine manufacturer)

$5.99

$

In Stock, Qty 20+

0

10

Snapper 7076272

FUEL LINE, 3-1/2"
(Superseded to 791766)

Note: (12.5HP Kawasaki)

$7.99

$

In Stock, Qty 20+

0

Snapper 7024055

FUEL LINE, 6-1/2"
(Superseded to 7024055YP)

Note: (14 HP Kawasaki)

$5.49

$

Usually ships in 2-12 days

0

11

Snapper 7090594

NUT, #10 - 24 Lock
(Superseded to 7090594YP)

$2.99

$

Usually ships in 2-12 days

0
