PL 71250KW (80247) - Snapper Walk-Behind Mower, 12.5hp 36" Mower Deck Assembly Parts Diagram

Walk-Behind Mower, 12.5hp

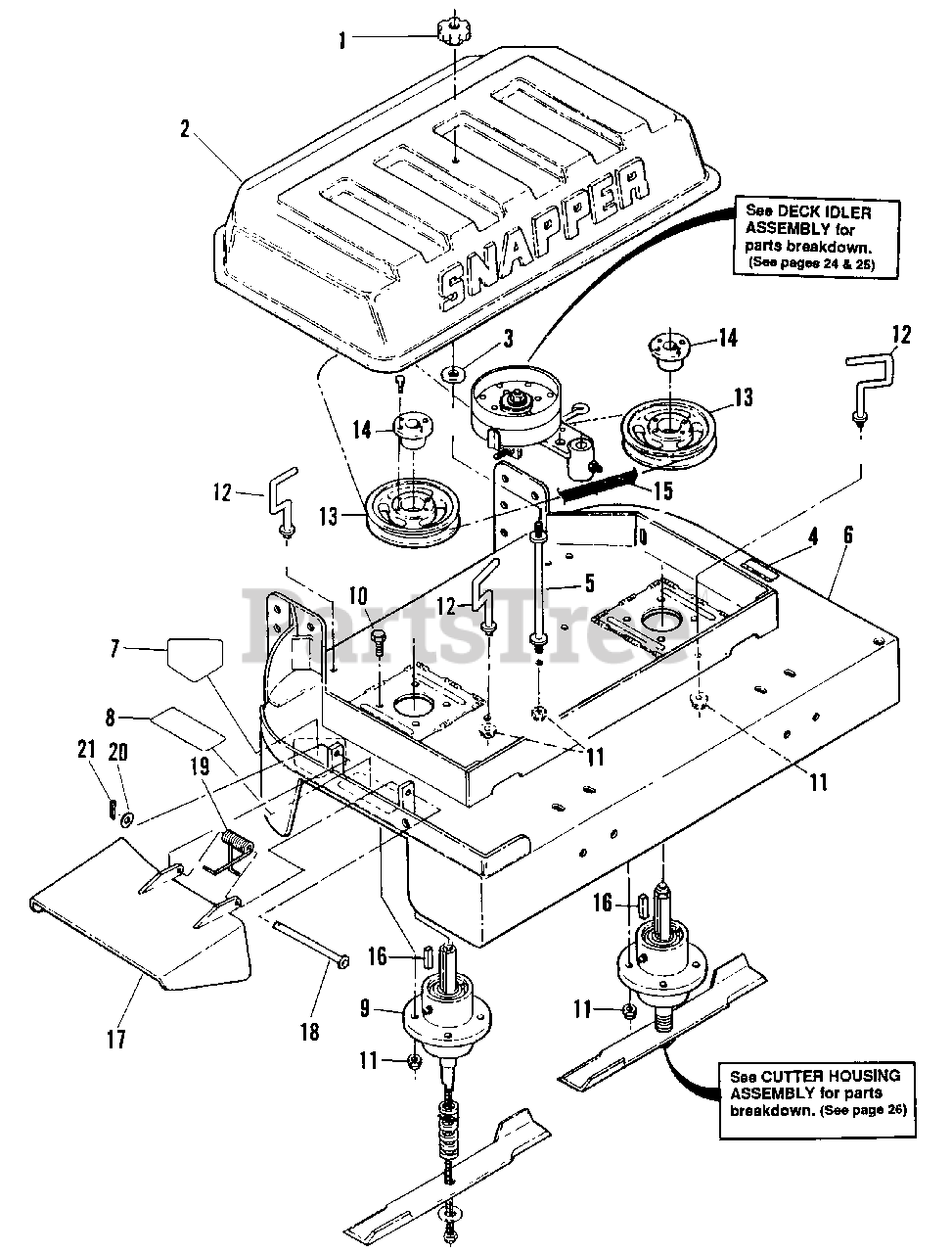

36" Mower Deck Assembly Parts Diagram

  • Title
1

Snapper 7023735

KNOB
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

2

Snapper 7017812

HOOD, Model PMA7360

$

$

Currently unavailable

3

Snapper 7091047

BUSHING

$

$

Not available

4

Snapper 7073647

DECAL, "Caution"
(Superseded to 7073647YP)

Note: Was 24156

$7.99

$

Usually ships in 2-12 days

0

5

Snapper 7022890

STUD, Hood Mount
(Superseded to 7022890YP)

$18.99

$

Usually ships in 2-12 days

0

6

Snapper 7040957

DECK WELDMENT, 36"

$

$

Currently unavailable

7

Snapper 7013010

DECAL, "Danger"
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

8

Snapper 7022522

DECAL, "Caution"
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0

9

Snapper 7052457

ASSEMBLY, Cutter Housing
(Superseded to 7052457YP)

$569.99

$

Usually ships in 2-12 days

0

10

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap
(Superseded to 703871)

Note: Was 76941

$4.99

$

Usually ships in 2-12 days

0

11

Snapper 7091299

NUT, 33/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7033417

GUIDE, Belt
(Superseded to 7033417YP)

$23.99

$

Usually ships in 2-12 days

0

13

Snapper 7017336

PULLEY, Cutter Blade Drive
(Superseded to 7017336YP)

$90.99

$

Usually ships in 2-12 days

0

14

Snapper 7023381

BUSHING, Taperlock
(Superseded to 7023381YP)

$50.99

$

Usually ships in 2-12 days

0

15

Snapper 7029908

BELT, 36" Deck
(Superseded to 7029908YP)

Note: Was 38624

$56.99

$

Usually ships in 2-12 days

0

16

Snapper 7017033

KEY, Spindle
(Superseded to 7017033YP)

$5.49

$

In Stock, Qty 5

0

17

Snapper 7041321

DEFLECTOR, 36" Chute
(Superseded to 7041321YP)

$153.99

$

Usually ships in 2-12 days

0

18

Snapper 7024124

ROD, Chute Pivot
(Superseded to 7024124YP)

$13.99

$

Usually ships in 2-12 days

0

19

Snapper 7024125

SPRING, Chute
(Superseded to 7027950YP)

$

$

Not available

20

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

21

Snapper 7091313

PIN, 3/32" x 1" Cotter
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 1 left!

0
