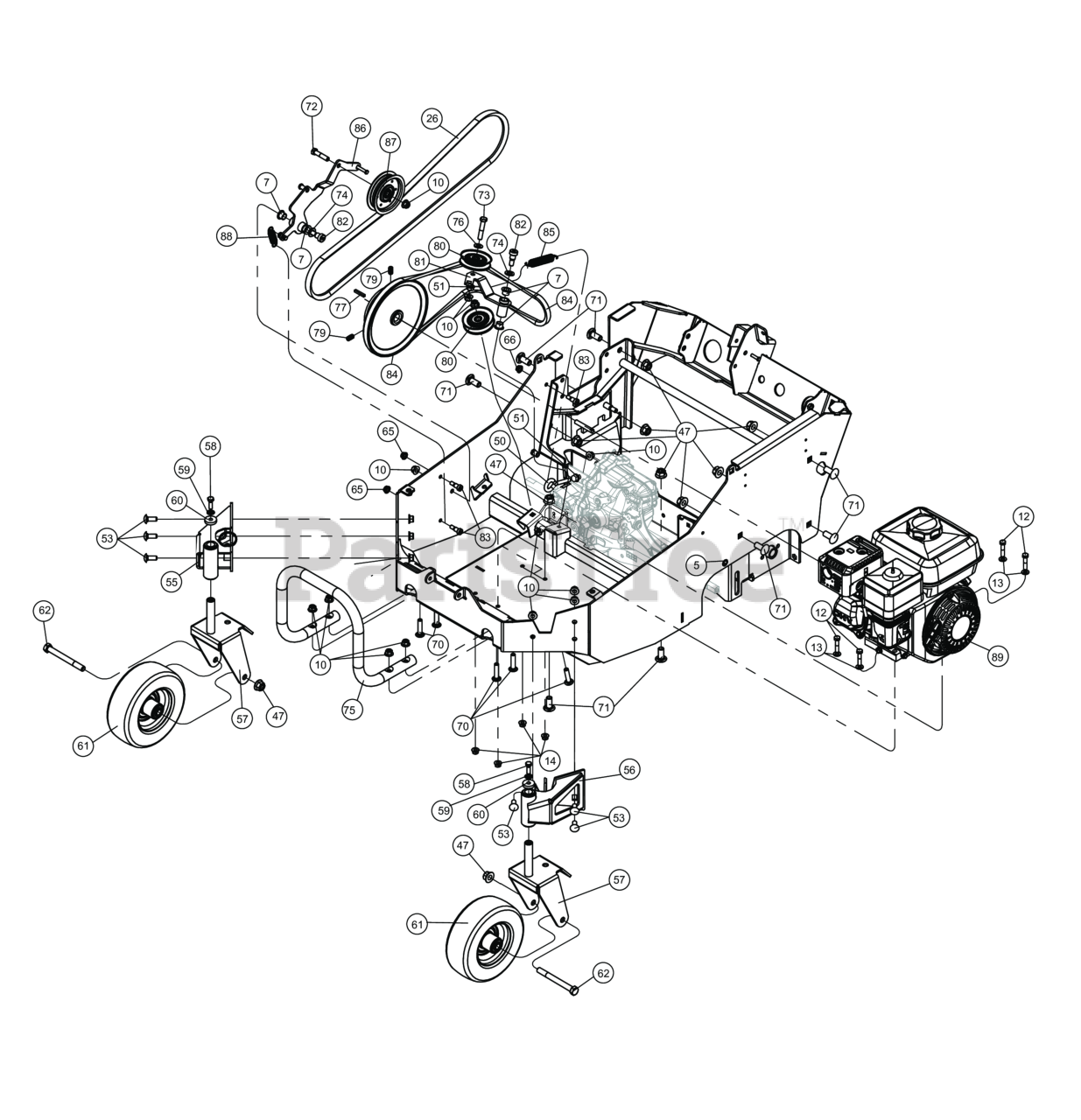

PL 2501 SPH - Billy Goat 25" PLUGR Aerator Parts Assembly I Parts Diagram

25" PLUGR Aerator

Parts Assembly I Parts Diagram

  • Title

5

NUT INSERT HEX 5/16-18

$

$

Not available

7

Billy Goat 362254

BUSHING .500" ID

$

$

Not available

10

Billy Goat 8165003

NUT-HEX-NYLK, FLG .375"-16 ZP

$0.99

$

Usually ships in 2-11 days

0

12

Billy Goat 8041030

SCREWCAP 5/16"-18X1 1/2" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

13

Billy Goat 8172008

WASHER 5/16" SAE Z/P

$0.99

$

In Stock, Qty 9

0

14

Billy Goat 8165002

NUT-HEX-NYLK, FLG .3125-18 ZP

$0.99

$

In Stock, only 3 left!

0

26

Billy Goat 382273

BELT, V, 5L 61.82EL OHR ETH, AMD CD

$51.99

$

Usually ships in 2-11 days

0

47

Billy Goat 8165005

NUT-HEX-NYLK, FLG .500"-13 ZP

$0.99

$

Usually ships in 2-11 days

0

50

Billy Goat 382340

BLT-HOOK, .375"-16 X 3.75" OAL W/NUT

$

$

Currently unavailable

51

Billy Goat 791079

NUT WASHER FACE

$0.99

$

Usually ships in 2-11 days

0

53

Billy Goat 8024058

BOLT CARRAIGE 3/8-16 X 1" ZP

$1.49

$

In Stock, Qty 8

0

55

Billy Goat 382011-S

ASM, RH CASTER BRKT W/BUSHINGS & LOCK

$253.99

$

Usually ships in 2-11 days

0

56

Billy Goat 382012-S

ASM, LH CASTER BRKT W/BUSHINGS & LOCK

$253.99

$

Usually ships in 2-11 days

0

57

Billy Goat 382125

WA, CASTER WHEEL

$119.99

$

Usually ships in 2-11 days

0

58

Billy Goat 8041028

SCREWCAP 5/16"-18 X 1" HCS ZP

$0.99

$

In Stock, Qty 7

0

59

Billy Goat 8181010

WASHER, BELLEVILLE CONTACT .323X.717X.05

$2.99

$

Usually ships in 2-11 days

0

60

Billy Goat 441150

WASHER 1.125 OD X 0.344 ID X .25 THK ZP

$3.99

$

Usually ships in 2-11 days

0

61

Billy Goat 373300

WHEEL, 8" X 3" HEAVY DUTY

$121.99

$

Usually ships in 2-11 days

0

62

Billy Goat 8041108

SCREWCAP 1/2"-13 X 4 3/4 HCS ZP GR. 5

$4.99

$

Usually ships in 2-11 days

0

65

Billy Goat 350346

NUT FLANGE 5/16"-18 ZP

$0.99

$

Usually ships in 2-11 days

0

70

Billy Goat 8024067

BLT-RDHDSSQNK, .375"-16 X 1.750" G5 ZP

$2.49

$

Usually ships in 2-11 days

0

71

Billy Goat 8024097

BLT-RDHDSSQNK, .500"-13 X 1.250" G5 ZP

$3.49

$

Usually ships in 2-11 days

0

72

Billy Goat 8041053

SCREWCAP 3/8"-16 X 1 3/4" HCS ZP

$1.49

$

Usually ships in 2-11 days

0

73

Billy Goat 8041054

SCREWCAP 3/8"-16X2" HCS ZP

$0.99

$

In Stock, Qty 5

0

74

Billy Goat 382252

WSHR-STL,FLT .500"X.875"X.0747" MAB ZP

$0.99

$

Usually ships in 2-11 days

0

75

Billy Goat 382401

GUARD, FRONT

$37.99

$

Usually ships in 2-11 days

0

76

Billy Goat 8172009

WASHER 3/8"SAE 13/32"X13/16"X1/16"

$1.49

$

In Stock, Qty 5

0

77

Billy Goat 9201080

KEY 3/16" SQ X 1 1/4"

$

$

Not available

79

Billy Goat 380218

SCREW SET 3/8-16 X 3/4 CUP POINT

$0.99

$

Usually ships in 2-11 days

0

80

Billy Goat 351216

PULLEY 3V GROOVE IDLER

$34.99

$

Usually ships in 2-11 days

0

81

Billy Goat 382109

WA, MULE DRIVE

$59.99

$

Usually ships in 2-11 days

0

82

Billy Goat 382295

BLT-SLDR,SH.500"X2.00",.375"-16X.63"G8ZP

$9.99

$

Usually ships in 2-11 days

0

83

Billy Goat 351316

BOLT SHOULDER, 3/8" DIA. X 3.25" LONG

$6.99

$

Usually ships in 2-11 days

0

84

Billy Goat 382268

BELT, V, 3V 53.00EL OHR CL, PLY CD

$28.99

$

Usually ships in 2-11 days

0

85

Billy Goat 382338

SPRING, EXT 4.090" X Ø.701 X 14LBF/IN

$32.99

$

Usually ships in 2-11 days

0

86

Billy Goat 382107

WA, IDLER ARM

$79.99

$

Usually ships in 2-11 days

0

87

Billy Goat 500113

PULLEY IDLER 4" OD X 3/8"

$34.99

$

Usually ships in 2-11 days

0

88

Billy Goat 351275

SPRING IDLER UPPER OS900SP

$11.99

$

In Stock, only 3 left!

0

89

Billy Goat 360126

GX160 HONDA ENGINE W/GEARBOX

$

$

Currently unavailable
